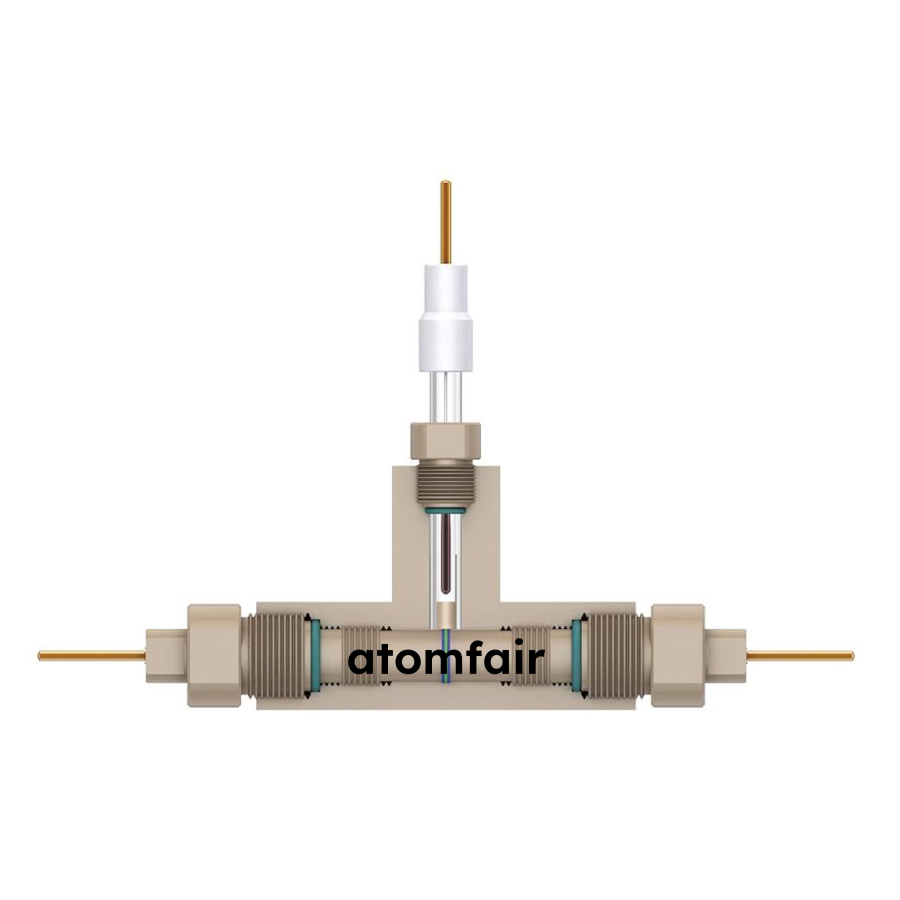

ATOMFAIR® Swagelok cell cross-section showing a T-shaped beige PEEK body, horizontal pins, and a top vertical electrode.

ATOMFAIR® Swagelok Type Three-Electrode Battery Cell

$859.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Buy three electrode coin cell simulator price setups for PEEK button battery testing platform R&D. ISO 9001 validation. Contact inquiry@atomfair.com.

Category:
Tags:
Brands:

Description

ATOMFAIR® SWAGELOK TYPE THREE-ELECTRODE BATTERY CELL

OPERANDO BUTTON BATTERY COIN SIMULATION

Product Overview
This premium Swagelok-style electrochemical test cell is explicitly engineered to unlock uncompromised cell-to-cell consistency during button battery prototyping. Replicating the internal pressure tracking of production coin cells, it utilizes dual horizontal compression plungers to securely clamp active anodes, cathodes, and thin separators under rigid gas-tight configurations. It establishes an uncompromised three electrode coin cell simulator price validation platform for cutting-edge PEEK button battery testing platform R&D workflows.

Technical Specifications

PARAMETER DETAILS
1. Core Structural & Material Matrix
Cell Core Material Premium solid Polyetheretherketone (PEEK) delivering absolute insulation resistance and elite anti-corrosion bounds across organic electrolytes
Conductive Plungers Dual horizontal current collectors crafted from high-purity Glassy Carbon rods (GC-Φ3 mm) ensuring zero metallic dissolution artifacts
Compatible Targets Universal cross-compatible slot tracking: handles standard disc sample diameters of 10 mm, 12 mm, or 16 mm
2. Three-Electrode Alignment & Plunger Mechanics
Assembly Topology Swagelok type multi-plate sandwich: working film and counter substrates face each other directly, separated strictly via user membrane foils
Mechanical Compression Dual-axis screw compression: rotating the left and right glassy carbon rods tightens the internal core layer, locking down absolute electronic contact tracking
Reference Interface Equipped with an independent vertical reference electrode column holding a high-stability Ag/AgCl probe assembly
Fluid Injection Port The upper reference column cap features a screw-open refilling pathway to introduce auxiliary electrolyte volumes post-assembly
3. Regulatory & Manufacturing Trace
Manufacturing Rules Processed under strict ISO 9001 compliance validation conditions

Key Features & Advantages
  • GC-Φ3 Current Collection: Pure glassy carbon current collectors completely block anodic oxidation and dissolution errors common to copper/metal pins.
  • Glovebox-Free Desk Cycling: Tight Swagelok compression mechanics provide excellent gas tightness, allowing safe out-of-glovebox testing loops.
  • Inline Electrolyte Refilling: Screw-open upper column allows real-time liquid additions without disturbing plunger pressure balances.

APPLICATION SCOPE: Swagelok battery characterization, three-electrode coin cell simulation, lithium-ion half-cell indexing, and organic electrolyte validation platforms.
PACKAGING: Sealed protective cleanroom kit with dedicated component tracks for the PEEK sleeve matrix, glassy carbon rods, and reference columns.
IMPORTANT NOTICE: Glassy Carbon collectors are highly brittle. When rotating the left and right thread adapters to compress 10/12/16 mm foil samples, adjust torque levels gradually by hand. Avoid using heavy iron pliers to protect the precision PEEK thread perimeters from stripping.
