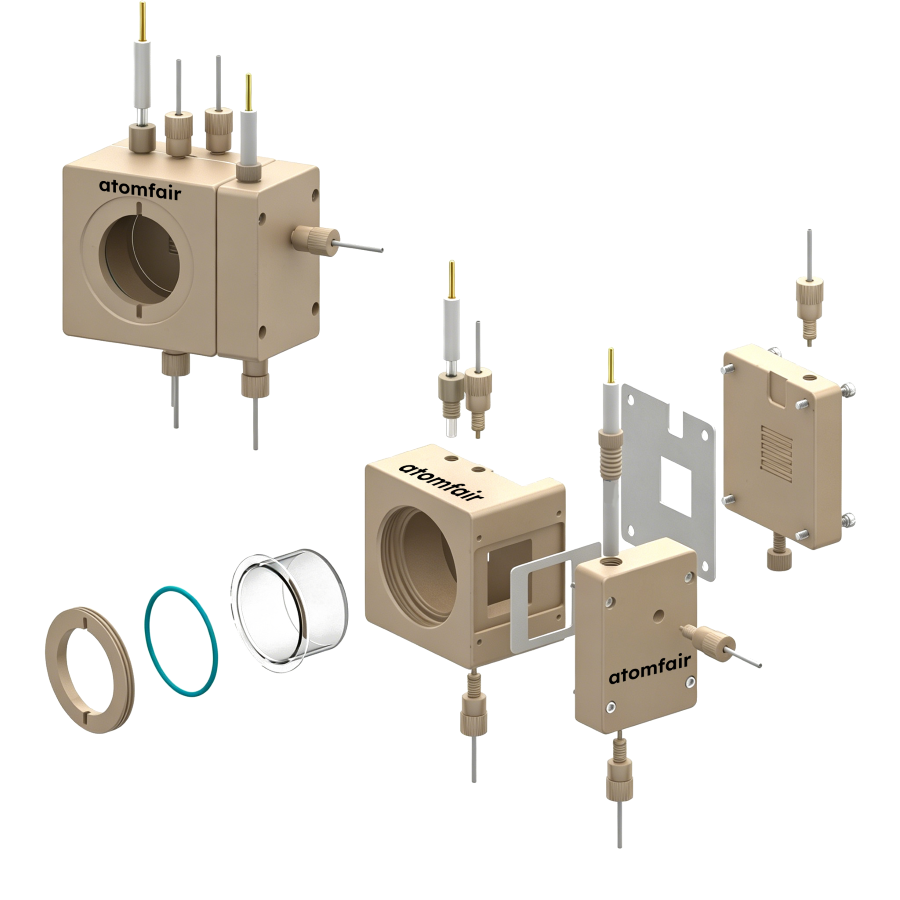

ATOMFAIR® cell 3D view with beige blocks, circular viewport layers, internal split-frame, and assembled unit.

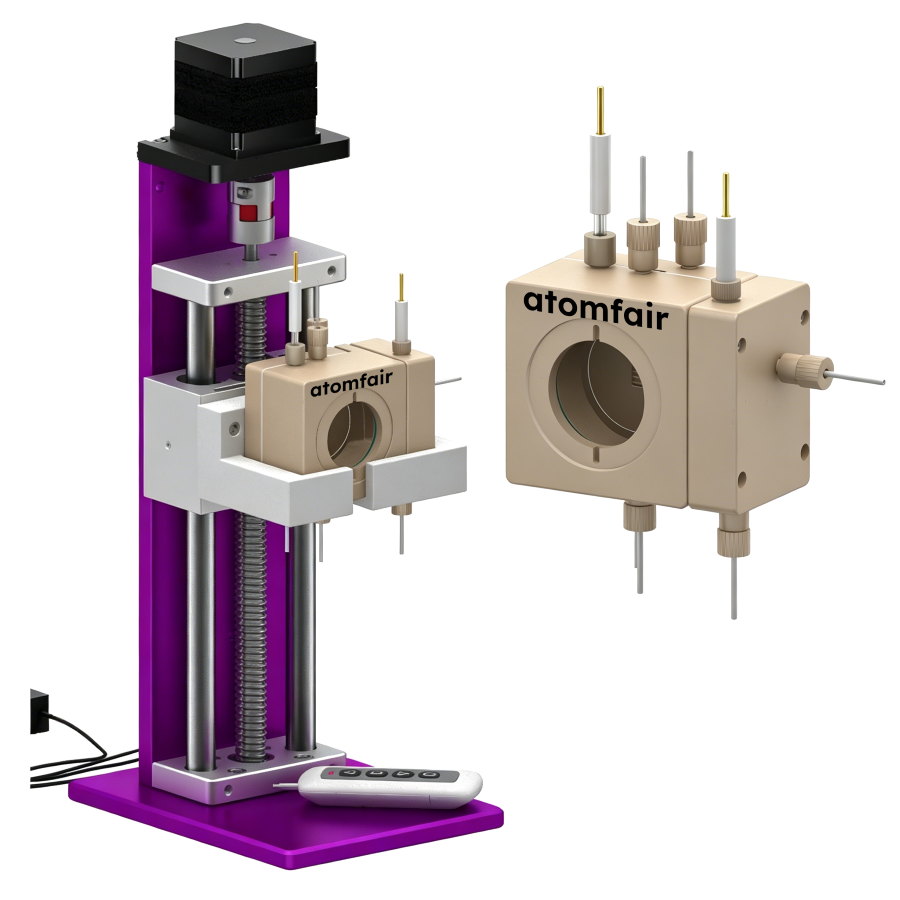

ATOMFAIR® Split-Membrane Photoelectrochemical Flow Cell - Image 2

ATOMFAIR® Split-Membrane Photoelectrochemical Flow Cell

Price range: $859.00 through $2,004.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Buy split-membrane gas diffusion flow cell price setups for quartz window operando electrocatalysis platform R&D. ISO 9001 validation.

Category:
Tags:
Brands:

Description

ATOMFAIR® SPLIT-MEMBRANE PHOTOELECTROCHEMICAL FLOW CELL

OPERANDO PHOTO-ELECTROCATALYSIS & GAS DIFFUSION

Product Overview
This premium analytical flow installation represents a major breakthrough over traditional gas diffusion flow cells by completely resolving catalyst back-illumination shading limitations. Specifically engineered to support cross-coupled multi-component mobile phase fluidic systems, it features a specialized modular front optical aperture allowing simulated solar spectrum beam illumination to contact catalysts directly. It establishes an uncompromised split-membrane gas diffusion flow cell price validation platform for cutting-edge quartz window operando electrocatalysis platform R&D workflows.

Technical Specifications

PARAMETER DETAILS
1. Fluidic Circuits & Application Targets
Target Workflows Optimized for dynamic mobile phase testing within photoelectrochemical systems, including carbon dioxide reduction reaction (CO2RR) and nitrogen reduction reaction (NRR) pathways
Illumination Track Overhauled optical manifold positioning light source pathways directly on front catalyst fields, eliminating parasitic back-shading degradation effects
2. Three-Electrode Network & Interchangeable Membrane Topo
Counter Electrode Probe Standard configuration equipped with a high-durability graphite rod counter electrode assembly
Reference Probe Terminal Standard configuration equipped with a stable silver/silver chloride (Ag/AgCl) reference probe module
Working Electrode Support Optimized interface designed to securely mount advanced gas diffusion electrodes (user-supplied)
Optical Window Field High-transmission monocrystalline Quartz window layer delivering high transparency across UV-Vis-NIR bands
Membrane Modularity Equipped with a swappable membrane clamp interface supporting rapid substitution of diverse ion-exchange films
3. Regulatory & Manufacturing Trace
Manufacturing Rules Processed under strict ISO 9001 compliance validation conditions

Key Features & Advantages
  • Front-Face Unshaded Illumination: Unlocked optical configuration targets light directly onto the catalyst layer to optimize photon-to-current conversions.
  • Interchangeable Membrane Slots: Modular center plate tracks allow instant membrane swap-outs to control chemical cross-contamination variables.
  • High Transmission Quartz Field: Laser-grade quartz windows deliver exceptional transparency, preventing reflection background noise.

APPLICATION SCOPE: Unshaded photoelectrochemical gas diffusion, operando split-membrane CO2RR mapping, NRR mobile-phase fluidic tracking, and multi-ion exchange validation.
PACKAGING: Sealed high-protection cleanroom container featuring precision-cut internal tracks to safeguard the quartz window, graphite rod, and sealing elements.
IMPORTANT NOTICE: To guarantee uncompromised sealing bounds along the interchangeable membrane track, verify that the active ion-exchange film sits perfectly centered. Symmetrically compress all structural frame fasteners to shield brittle quartz elements from point strain.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).

Additional information

Component

Split-Membrane Photoelectrochemical Flow Cell, Electric Water Management Module
