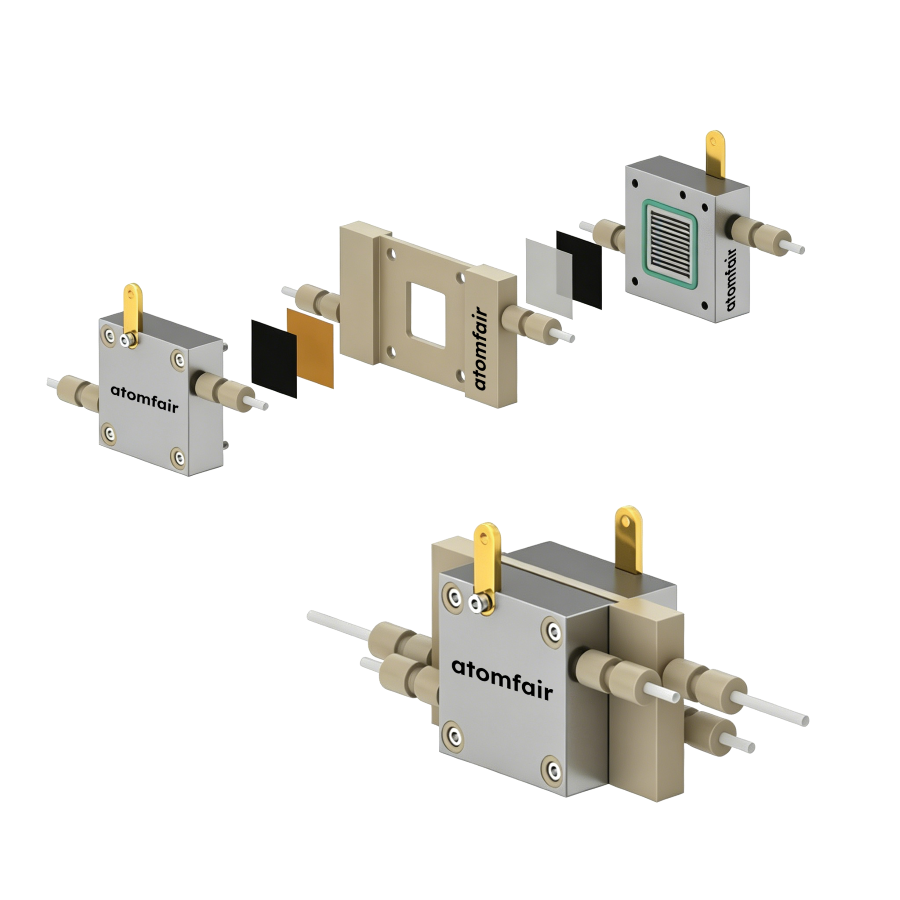

ATOMFAIR® solid electrolyte cell 3D view with layered metallic plates, beige frame, membranes, and assembled block.

ATOMFAIR® Solid Electrolyte Two-Electrode Electrolysis Cell

$1,508.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Buy pure liquid product electrolyzer price configurations for solid polymer electrolyte validation platform R&D. ISO 9001 validation.

Category:
Tags:
Brands:

Description

ATOMFAIR® SOLID ELECTROLYTE TWO-ELECTRODE ELECTROLYSIS CELL

OPERANDO MEMBRANE-SANDWICH ION-FREE EXTRACTION

Product Overview
This advanced analytical installation utilizes a high-efficiency sandwich architecture designed to enable gas-solid boundary layer engineering. By replacing liquid electro-baths with high-conductance solid-state polymer or porous ceramic electrolyte substrates, it completely eliminates background salt ion impurities to directly synthesize ultra-pure liquid fuels. It establishes an uncompromised pure liquid product electrolyzer price validation platform for cutting-edge solid polymer electrolyte validation platform R&D workflows.

Technical Specifications

PARAMETER DETAILS
1. Cell Housing & Bipolar Flow Tracks
Bipolar Plate Material Premium high-purity Titanium (Ti) framing ensuring elite corrosion resistance and electronic contact kinetics
Internal Flow Channels Precision micro-machined serpentine flow tracks carved into plates 1 and 3 to prolong reactant gas residence time and boost catalyst surface concentrations
2. Multi-Layer Membrane & Center Core Specifications
Anode Boundary Link Employs a premium anion exchange membrane paired with a gas diffusion layer sheet hosting pre-deposited anode catalysts (Requires hot press consolidation)
Cathode Boundary Link Employs a premium proton exchange membrane (Nafion™ 115) paired with a gas diffusion layer sheet hosting pre-deposited cathode catalysts (Requires hot press consolidation)
Center Core Component Dedicated central chamber (Chamber 2) featuring a thick 3 mm square hollowed layer establishing a fixed 4 cm2 active void area
Solid Matrix Extraction The 4 cm2 core void space accepts packed solid-state polymer resin beads or porous functional ceramics to support pure water circulation paths
3. Regulatory & Manufacturing Trace
Manufacturing Rules Processed under strict ISO 9001 compliance validation conditions

Key Features & Advantages
  • Ion-Free Product Isolation: Advanced three-chamber architecture separates synthesized molecules directly into a deionized water stream to isolate pure acids/alcohols.
  • Serpentine Kinetic Pathways: Titanium flow fields maximize reactant contact metrics to maintain elite faradaic output rates.
  • Optimized 3 mm Center Layer: Thick 4 cm2 center frame accommodates optimal solid ionomer packing, balancing ionic migration velocities perfectly.

APPLICATION SCOPE: Solid-state polymer electrolyte electrocatalysis, salt ion-free pure fuel extraction, multi-layer membrane synthesis testing, and carbon gas conversions.
PACKAGING: Sealed protective cleanroom box with custom-fitted high-density slots for internal titanium framing plates, gaskets, and central core manifolds.
IMPORTANT NOTICE: To guarantee uncompromised interfacial transport across the anion/proton exchange membrane interfaces, ensure all multi-layer catalyst structures are consolidated via pre-calibrated hot press tools. Symmetrically torque perimeter bolts to prevent fluid bypassing into gas feeds.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
