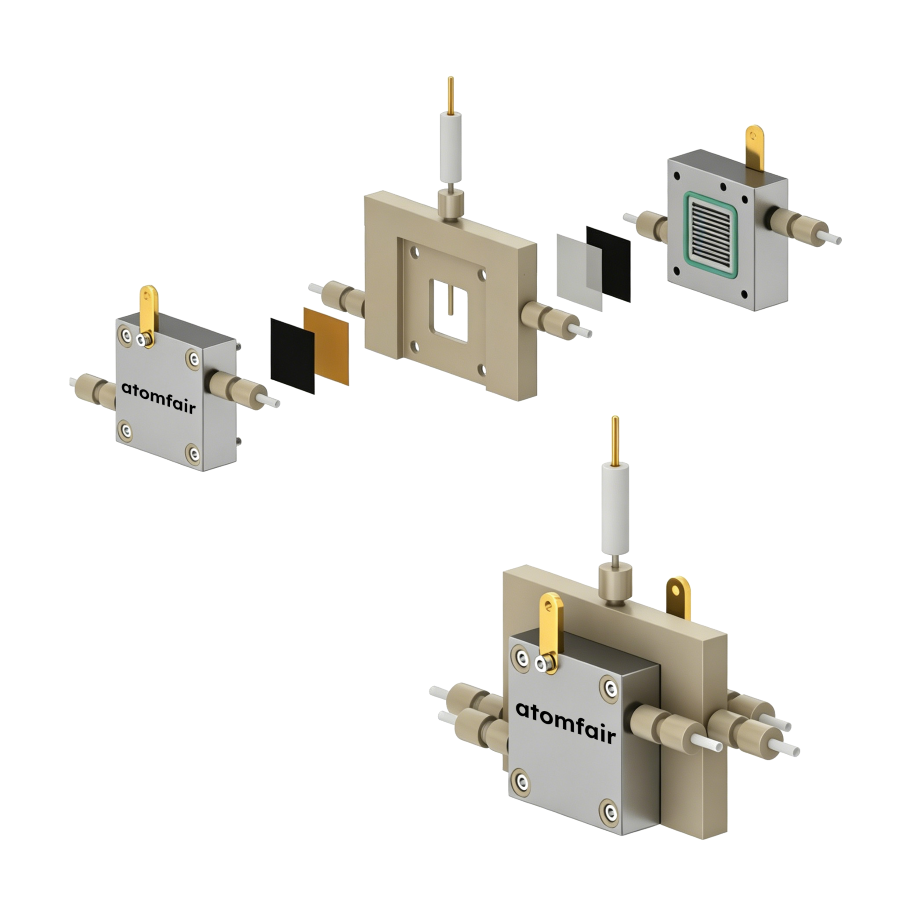

ATOMFAIR® solid electrolyte cell 3D view with metallic blocks, beige frame, membranes, and a top vertical probe pin.

ATOMFAIR® Solid Electrolyte Three-Electrode Electrolysis Cell

$1,615.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Buy pure liquid product electrolyzer price configurations for solid polymer electrolyte validation platform R&D. ISO 9001 validation.

Category:
Tags:
Brands:

Description

ATOMFAIR® SOLID ELECTROLYTE THREE-ELECTRODE ELECTROLYSIS CELL

OPERANDO REFERENCE-INTEGRATED ION-FREE EXTRACTION

Product Overview
This upgraded professional installation utilizes an advanced sandwich architecture designed to enable reference-tracked gas-solid boundary layer engineering. Upgraded to integrate an independent reference probe terminal circuit, it separates working half-cell potential sweeps from counter-polarization instabilities under full water circulation loops. By replacing liquid electro-baths with high-conductance solid-state electrolytes, it completely eliminates background salt ion impurities to directly synthesize ultra-pure liquid fuels. It establishes an uncompromised pure liquid product electrolyzer price validation platform for cutting-edge solid polymer electrolyte validation platform R&D workflows.

Technical Specifications

PARAMETER DETAILS
1. Upgraded Three-Electrode Architecture
Design Integration Upgraded true three-electrode half-cell diagnostic layout featuring an independent built-in reference tracking plate
Reference Plate Thickness Strict 3 mm optimized reference compartment plate width managing low internal solution path IR drops
2. Core Materials & Membrane Topology
Flow Plate Material Premium high-purity Titanium (Ti) construction delivering elite galvanic stability under structural loads
Flow Channel Layout Precision machined serpentine gas-flow channels carved into bipolar elements to prolong reactant residence profiles
Ion-Free Membrane Stack Dual-membrane sandwich pairing an anion exchange film with a proton exchange film to isolate the center core space
Center Core Medium Central compartment packed with packed solid polymer resins or porous functional ceramics to support pure water extraction circuits
3. Regulatory & Manufacturing Trace
Manufacturing Rules Processed under strict ISO 9001 compliance validation conditions

Key Features & Advantages
  • True Potentiostat Potential Tracking: Independent 3 mm reference port isolates active thermodynamic kinetics from counter-electrode drift.
  • Salt-Free Pure Fluid Collection: Advanced dual-membrane barrier forces ions to recombine solely inside a DI water sweep flow.
  • Titanium Sandwich Strength: Robust Ti plates handle heavy torque pressures without distorting internal flow fields.

APPLICATION SCOPE: Reference-tracked three-electrode solid electrolyte catalysis, salt-free high-purity chemical fuel extraction, and advanced overpotential mapping.
PACKAGING: Sealed protective cleanroom container featuring discrete slots for the 3 mm reference plate module, bipolar blocks, and gaskets.
IMPORTANT NOTICE: When mounting the upgraded 3 mm reference terminal chamber plate, inspect the multi-layer film alignments. Symmetrically compress perimeter fasteners to secure leak-free gas-solid interfaces without over-stressing the active solid-state resin cavity tracks.
