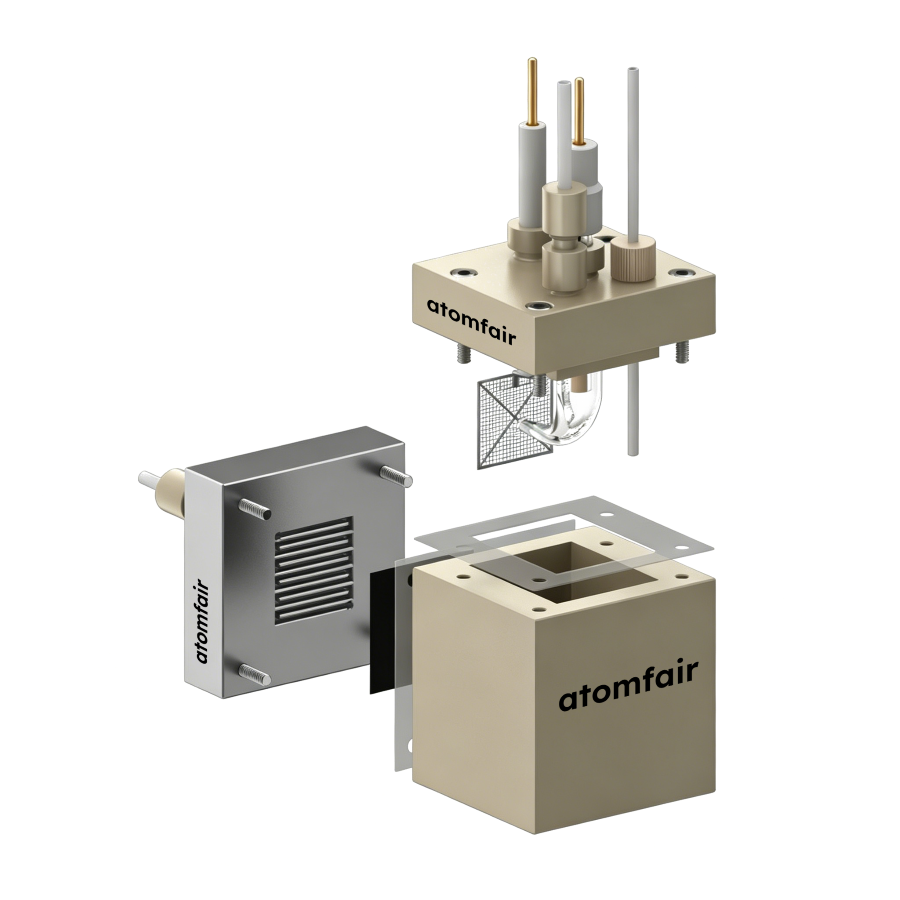

ATOMFAIR® flow cell exploded 3D view with beige main body, metal serpentine plate, and top cover with electrodes.

ATOMFAIR® Single Liquid Chamber Gas Diffusion Flow Cell

$1,241.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Buy gas diffusion flow cell price deals for titanium operando electrochemical platform R&D. ISO 9001 compliance validation.

Category:
Tags:
Brands:

Description

ATOMFAIR® SINGLE LIQUID CHAMBER GAS DIFFUSION FLOW CELL

OPERANDO MOBILE PHASE FLUIDICS & GAS SEPARATION

Product Overview
This professional mobile-phase analytical architecture is engineered to unlock uncompromised cell-to-cell consistency and robust boundary layer tracking during continuous flow analysis. Featuring a hybrid compartment layout where one chamber operates as an open fluidic reservoir and the opposite functions as a micro-machined channel system, it drives efficient gas transmission directly into the liquid boundary via an active gas diffusion layer. It establishes an uncompromised gas diffusion flow cell price validation platform for cutting-edge titanium operando electrochemical platform R&D workflows.

Technical Specifications

PARAMETER DETAILS
1. Hydrodynamic Circuit & Channel Topologies
Fluid Circuit Loop Dual-compartment architecture: Chamber 1 utilizes an open chamber reservoir design for the mobile liquid phase; Chamber 2 features a serpentine channel network
Gas Manifest Track The built-in serpentine micro-channels serve as the primary routing path for gas transport, prolonging reactant residence times against the active diffusion layer
Channel Dimensions Strict 20 × 20 mm internal window footprint managing highly uniform convective fluid velocity vectors
2. Electrode Integration & Boundary Seals
Interfacial Tracking Gaseous components undergo interfacial mass transport by diffusing across the active Gas Diffusion Layer (GDL) sandwiched between blocks
Standard Sealing Core flow cell frame shipped complete with high-integrity anti-corrosive gaskets to secure stable leak-free bounds
Probes Notice The platinum mesh counter electrode and standard reference probe showcased in diagram graphics are for illustration purposes and must be purchased separately
3. Regulatory & Manufacturing Trace
Manufacturing Rules Processed under strict ISO 9001 compliance validation conditions

Key Features & Advantages
  • Hybrid Flow Design: Pairs an open fluid core with serpentine micro-channels to handle dynamic liquid-gas boundary experiments.
  • Strict 20 × 20 mm Channel Frame: Milled internal tracks lock in a highly homogeneous potential and fluid velocity distribution.
  • High-Integrity Perimeters: Fluoroelastomer perimeter gaskets provide excellent chemical resistance to completely isolate aggressive solutions.

APPLICATION SCOPE: Single liquid chamber fluid modeling, gas diffusion flow testing, operando mobile phase profiling, and 20 × 20 mm interface engineering.
PACKAGING: Securely shipped in a cleanroom sealed box with custom precision slots for the housing arrays, gaskets, and port connectors.
IMPORTANT NOTICE: Because the platinum mesh and reference probes must be sourced separately, verify analytical device footprints before beginning loops. Torque the structural frame symmetrically to position the gas diffusion sheet flat without pinching or tearing its porous structure.
