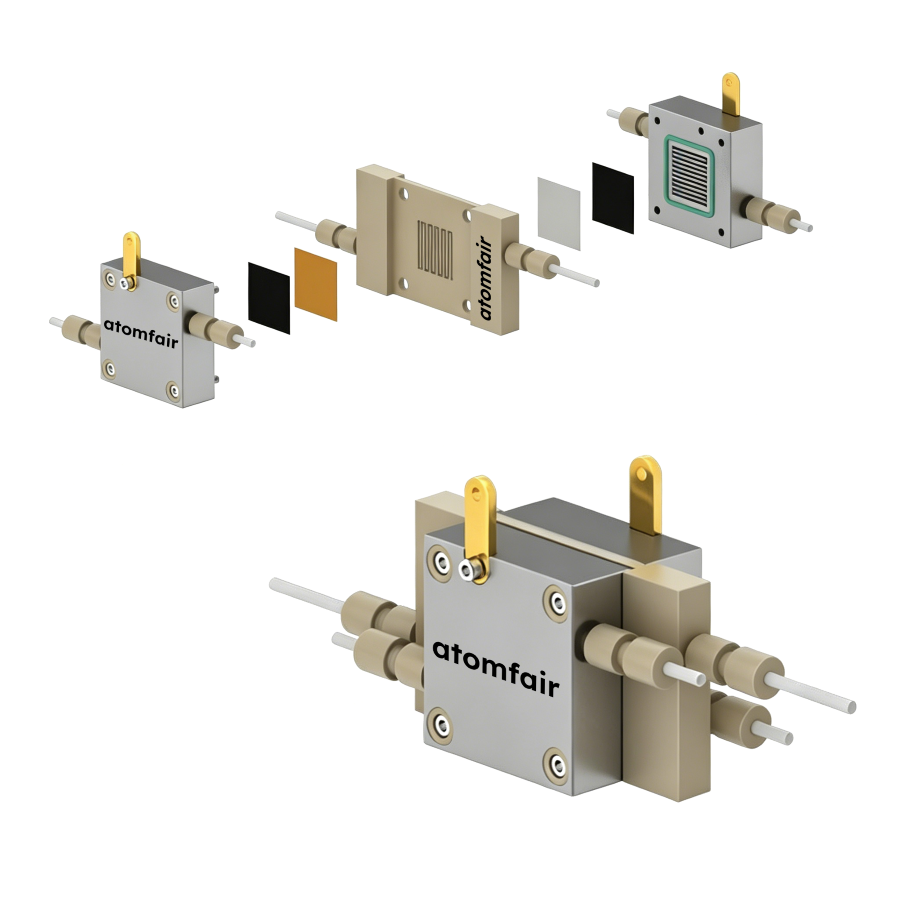

ATOMFAIR® solid electrolyte cell 3D model displaying serpentine channel plate, gaskets, and assembled blocks.

ATOMFAIR® Serpentine Channel Solid Electrolyte Cell

$1,622.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Buy pure liquid product electrolyzer price configurations for solid polymer electrolyte validation platform R&D. ISO 9001 validation.

Category:
Tags:
Brands:

Description

ATOMFAIR® SERPENTINE CHANNEL SOLID ELECTROLYTE CELL

OPERANDO MICRO-CHANNEL FLUID PRODUCT RECOVERY

Product Overview
This advanced analytical installation utilizes a specialized multi-layer sandwich architecture engineered to enable high-velocity fluid product elution. Upgraded to feature a precision-machined serpentine channel directly inside the center ion-exchange matrix housing layer, it optimizes pure water circulation sweeps to maximize recovery metrics of volatile liquid fuels. By replacing liquid electro-baths with high-conductance solid-state electrolytes, it completely eliminates background salt ion impurities to directly synthesize ultra-pure liquid chemical products. It establishes an uncompromised pure liquid product electrolyzer price validation platform for cutting-edge solid polymer electrolyte validation platform R&D workflows.

Technical Specifications

PARAMETER DETAILS
1. Upgraded Center Channel Architecture
Center Core Component Upgraded configuration altering plate 2 to incorporate an integrated continuous serpentine flow channel network
Fluidic Sweep Mechanics Serpentine channel pathways distribute pure water flushing flows uniformly across the solid polymer bed, ensuring instantaneous phase elution and zero stagnation zones
2. Core Materials & Membrane Topology
Flow Plate Material Premium high-purity Titanium (Ti) construction standard across outer framework plates to prevent parasitic current loss
Outer Flow Channels Plates 1 and 3 feature independent matching serpentine gas-delivery channels to sustain stable reaction boundaries
Membrane Matrix Interface Dual-sided barrier utilizing an anion exchange membrane and a proton exchange membrane to seal the active solid electrolyte center block
Solid Ionomer Medium Accepts compact beds of particulate ion-exchange resin beads or functional porous ceramics to manage ionic transfer fields without liquid salt species
3. Regulatory & Manufacturing Trace
Manufacturing Rules Processed under strict ISO 9001 compliance validation conditions

Key Features & Advantages
  • Serpentine Elution Kinetics: Upgraded middle plate flow tracks sweep synthesates instantly into the collection stream, completely suppressing product crossover.
  • Saltless Liquid Fuel Recovery: Advanced membrane separation permits recovery of pristine liquid product solutions directly into pure water.
  • Titanium Sandwich Integrity: High-grade Ti compression plates secure stable hermetic interfaces, eliminating fluid leaks under pressure.

APPLICATION SCOPE: Serpentine-assisted solid polymer electrolyte electrocatalysis, ion-free liquid fuel collection, and mass-transport optimized gas conversion validation platforms.
PACKAGING: Shipped inside a sealed protective cleanroom box with custom precision slots for the upgraded middle plate, outer titanium elements, and membrane seals.
IMPORTANT NOTICE: When packing the particulate ion-exchange resin matrix into the center layer, ensure the beads distribute evenly without jamming the micro-channels. Torque perimeter fasteners progressively in a star fashion to establish uniform mechanical loads across the active area.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).
