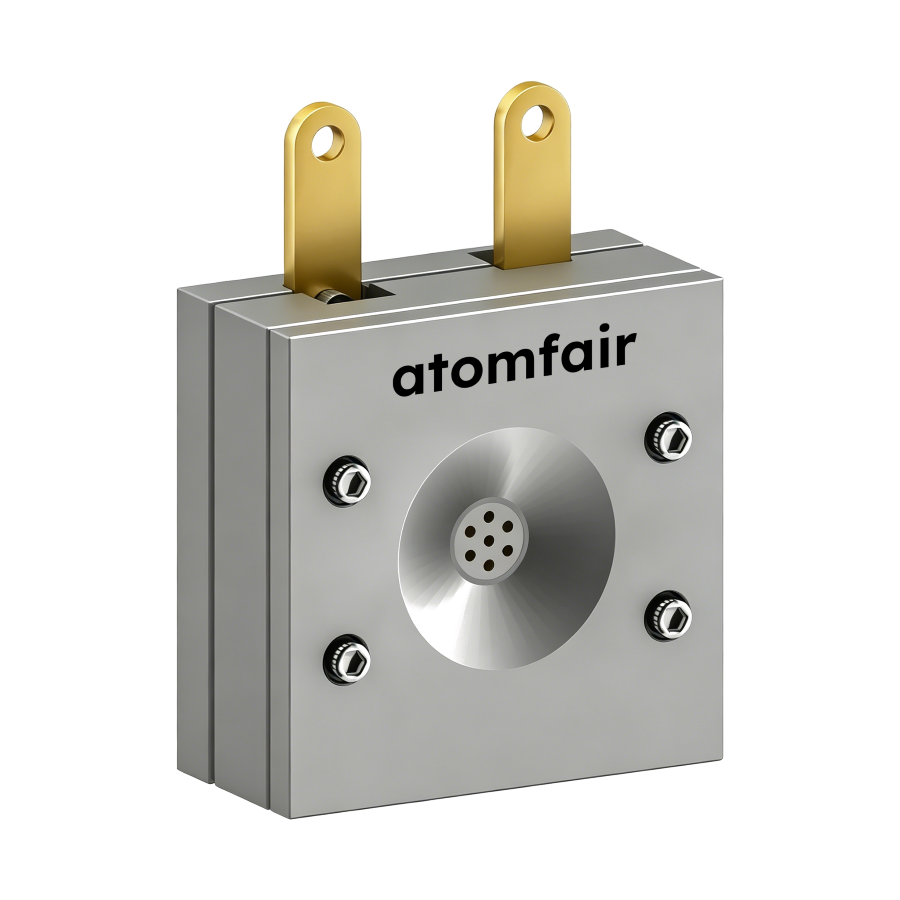

ATOMFAIR® two-electrode battery cell with metallic housing, two gold tabs, and a recessed multi-hole window.

ATOMFAIR® In-Situ Raman Two-Electrode Battery Cell

$944.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Buy operando split-concentric battery cell price deals for titanium spectroelectrochemical validation platform R&D. ISO 9001 validation.

Category:
Tags:
Brands:

Description

ATOMFAIR® IN-SITU RAMAN TWO-ELECTRODE BATTERY CELL

OPERANDO RAMAN BATTERY METROLOGY

Product Overview
This specialized analytical battery installation is engineered to unlock uncompromised cell-to-cell consistency during live phase structural and morphology monitoring. Optimized for seamless glovebox-to-open-air transfers, it integrates an internal spring load adjustment mechanism that permits flexible compression variations on active materials. It establishes an uncompromised operando split-concentric battery cell price validation platform for cutting-edge titanium spectroelectrochemical validation platform R&D workflows.

Technical Specifications

PARAMETER DETAILS
1. Structural Architecture & Load Metrics
Cell Body Matrix High-purity Titanium (Ti) construction offering elite chemical and galvanic corrosion resistance
Mechanical Compression Integrated internal spring assembly supporting adjustable load adjustments over target battery materials
Outer Dimensions 50 × 50 × 20 mm compact block design optimized for analytical stage attachment
2. Optical Field & Interface Boundaries
Optical Window Diameter ∅8 mm wide-view window field accommodating diverse long-working-distance lenses
Interfacial Gap Profile Ultra-short electrode-to-window separation distance of <2 mm minimizing electrolyte absorption losses
Hermetic Sealing System High-performance, chemically inert O-ring perimeter secured via cross-pattern screw fastening
Testing Interoperability Directly compatible with standard charge/discharge cyclers and potentiostat measurement workflows
3. Regulatory & Manufacturing Trace
Manufacturing Rules Processed under strict ISO 9001 compliance validation conditions

Key Features & Advantages
  • Glovebox-Free Ambient Operation: Superior hermetic O-ring assembly enables safe handling in open-air environments after initial glovebox assembly.
  • Rapid Tool-Less Breakdown: Designed for streamlined disassembly and washing, ensuring high experimental throughput and zero cross-run contamination.
  • Minimized Optical Path Loss: The critical electrode-to-glass window boundary is held below 2 mm to eliminate parasitic laser scattering.

APPLICATION SCOPE: In-situ Raman battery profiling, operando electrode phase transformation monitoring, and long-term electrochemical cycling characterization.
PACKAGING: Cleanroom sealed package with custom-molded high-density internal component stabilization tracks.
IMPORTANT NOTICE: When compressing the outer fastening plates, ensure tightening forces are applied symmetrically across all screws. This safeguards the hermetic seal track against uneven stress profiles and preserves the <2 mm structural window distance safely.
