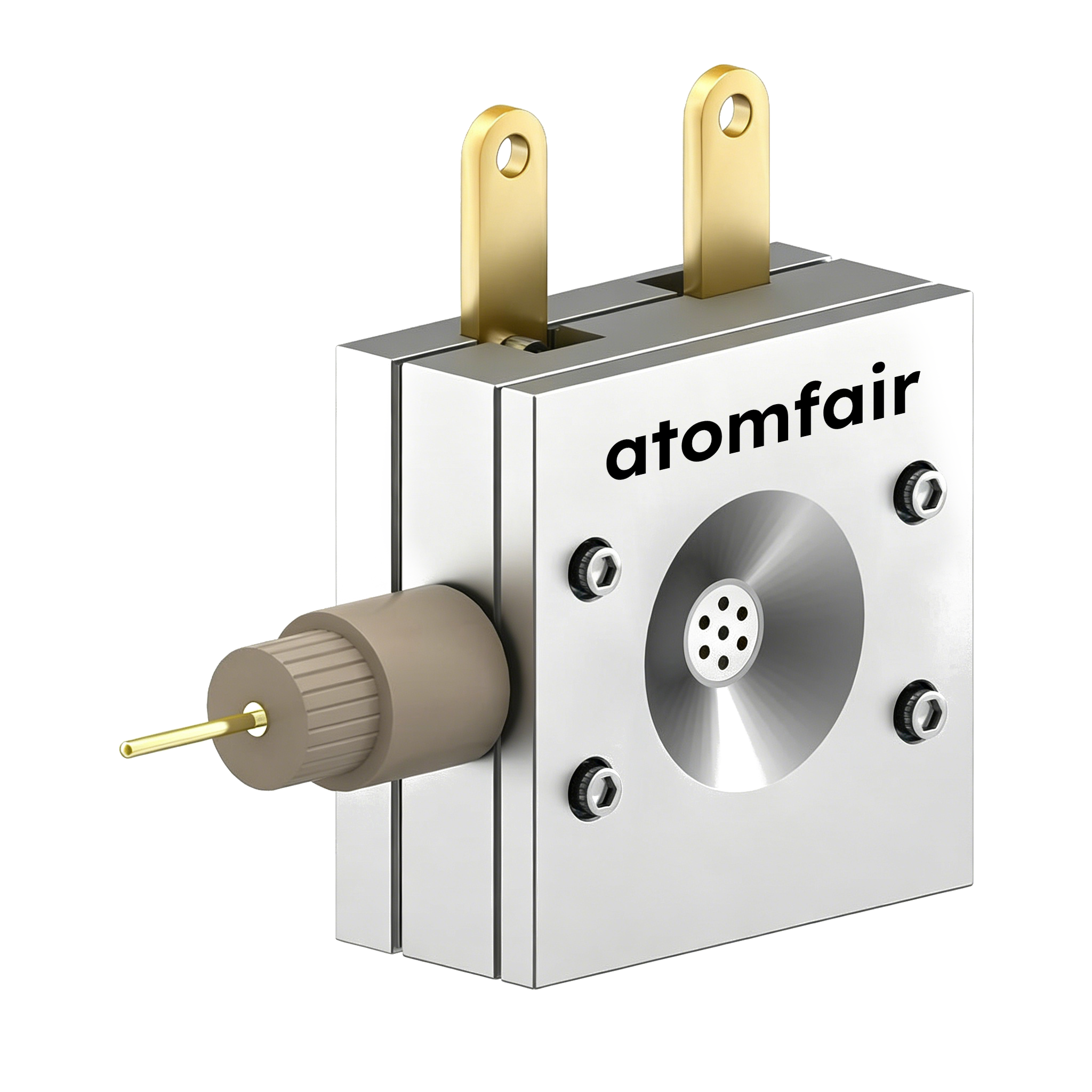

ATOMFAIR® three-electrode battery cell with metallic body, two top gold tabs, and a protruding side reference pin.

ATOMFAIR® In-Situ Raman Three-Electrode Battery Cell

$1,020.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Buy operando three-electrode battery cell price deals for precision reference spectroelectrochemical platform R&D. ISO 9001 validation.

Category:
Tags:
Brands:

Description

ATOMFAIR® IN-SITU RAMAN THREE-ELECTRODE BATTERY CELL

OPERANDO THREE-ELECTRODE RAMAN SPECTROSCOPY

Product Overview
This advanced analytical battery configuration is engineered to unlock uncompromised cell-to-cell consistency during live mechanical phase transitions and structural indexing. Upgraded from classic two-electrode foundations to feature an integrated reference terminal, it allows independent working substrate polarization mapping under absolute voltage tracking. It establishes an uncompromised operando three-electrode battery cell price validation platform for cutting-edge precision reference spectroelectrochemical platform R&D workflows.

Technical Specifications

PARAMETER DETAILS
1. Structural Architecture & Upgraded Topology
Design Integration Advanced 3-electrode configuration engineered with a dedicated reference electrode track built on standard platform footprints
Outer Dimensions 50 × 50 × 24 mm optimized structural block engineered for tight instrument clearance zones
2. Optical Field & Interface Boundaries
Optical Window Diameter ∅8 mm optimized clear aperture window matching diverse microscopic laser focus fields
Interfacial Gap Profile Ultra-short working electrode-to-window distance of <2 mm suppressing electrolyte absorption losses
Hermetic Sealing System High-performance, anti-corrosive perimeter O-ring system for reliable glovebox-to-ambient gas-tight containment
3. Regulatory & Manufacturing Trace
Manufacturing Rules Processed under strict ISO 9001 compliance validation conditions

Key Features & Advantages
  • True Three-Electrode Metrology: Dedicated reference port isolates working electrode interfacial potential from counter-electrode overpotential drift.
  • Ultra-Low Signal Scattering: Strict <2 mm alignment clearance optimizes Raman collection efficiency through dense liquid boundaries.
  • Seamless Ambient Interoperability: Gas-tight sealing mechanics enable open-bench live characterization after rapid glovebox assembly.

APPLICATION SCOPE: In-situ Raman 3-electrode battery profiling, precise operando interfacial degradation mapping, and reference-tracked half-cell validation platforms.
PACKAGING: Sealed protective cleanroom case with custom-fitted high-density component protection tracking.
IMPORTANT NOTICE: When placing the working electrode stack, verify that it sits perfectly flat along the internal track to lock in the <2 mm focal distance. Torque all perimeter screws in a balanced cross fashion to avoid twisting the reference terminal seals or fracturing the window fields.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).
