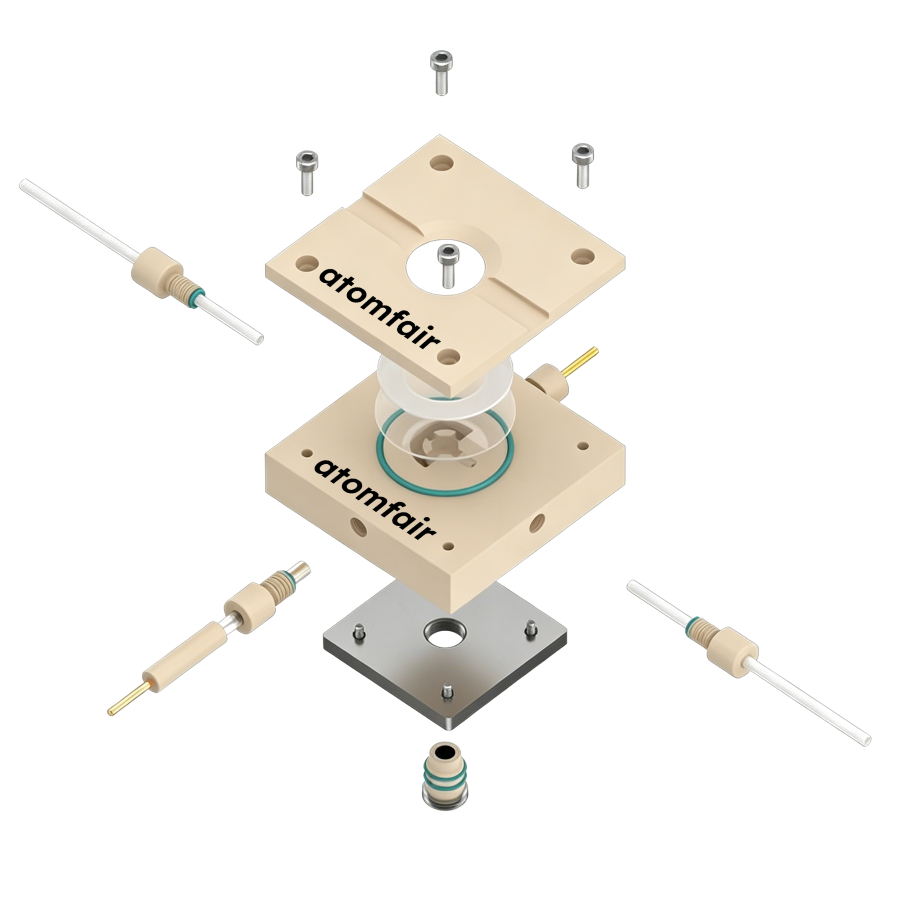

ATOMFAIR® XRD cell exploded 3D model with beige main blocks, fastening screws, and linear electrode pins.

ATOMFAIR In-Situ XRD Spectroelectrochemical Cell (Polyimide Window Type)

$917.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Buy XRD spectroelectrochemical cell price deals for polyimide window XRD cell R&D. PEEK titanium XRD cell standard. Contact inquiry@atomfair.com.

Category:
Tags:
Brands:

Description

ATOMFAIR® IN-SITU XRD SPECTROELECTROCHEMICAL CELL

RESEARCH GRADE MATERIAL

Product Overview
This premium in-situ X-ray diffraction (XRD) spectroelectrochemical cell is carefully engineered to investigate the real-time crystal phase transformations and structural variations of electrode materials during active electrochemical processes. By placing the working electrode directly underneath the ultra-thin, low-attenuation viewport window, it permits an unhindered X-ray beam path to accurately probe the catalytic interface. Supporting both active continuous fluidics and straightforward syringe filling, this platform combines high-durability tracking with a competitive XRD spectroelectrochemical cell price structure for international material science labs.

Technical Specifications

PARAMETER DETAILS
1. Structural & Material Design
Fluid System Support Dual Compatibility: Connects with active flowing fluid circuits or handles static injection via syringe filling
Cell Maintenance Modular block layout for highly rapid assembly, swift disassembly, and effortless cleaning operations
Cell Body Material Premium Polyetheretherketone (PEEK) paired with High-Purity Pure Titanium (Ti) structural components
2. X-Ray Window Parameters
Window Viewport Material Ultra-thin High-Transmission Polyimide (PI) Film Viewport Window
Optical Proximity Distance <3 mm (From the inner polyimide boundary surface down to the active working electrode surface)
3. Electrode & Structural Dimensions
Standard Working Electrode (WE) 5 mm Core Glassy Carbon (GC) Disk Electrode (Included as standard configuration)
Interchangeable WE Disk Options Supports user adaptation of Gold (Au), Platinum (Pt), or Silver (Ag) disk electrodes to match test goals
Standard Reference Electrode Silver/Silver Chloride (Ag/AgCl) Electrode or Ag+ Non-Aqueous Reference Electrode
Standard Counter Electrode High-purity Platinum (Pt) Wire Counter Electrode
Manufacturing Rules Machined and verified in strict accordance with premium PEEK titanium XRD cell standard requirements under high CNC accuracy controls

Key Features & Advantages
  • High-Performance Polyimide Window XRD Cell Configuration: Outfitted with an ultra-thin polyimide film viewport that yields exceptional X-ray transparency and chemical resilience.
  • Low Beam Attenuation Optimization: Successfully resolves how to minimize x-ray attenuation in electrochemical cell environments by keeping the liquid layer proximity under 3 mm above the active core.
  • Premium Titanium-PEEK Hybrid Block: Integrates robust polyetheretherketone bodies with high-purity titanium fixtures to preserve absolute structural integrity against aggressive electrolytes.
  • Adjustable Substrate Orientation: Fully customizable layout enables straightforward modification or mechanical fine-tuning of alternative 5mm disk components.

APPLICATION SCOPE: In-situ X-ray diffraction, live crystal lattice tracing, phase boundary shift characterization, and battery material degradation monitoring.
PACKAGING: Highly padded impact-resistant protective box housing the main cell block assembly, replacement polyimide film viewports, 5mm glassy carbon electrode core, standard reference/counter cables, and liquid sealing rings.
IMPORTANT NOTICE: When selecting alternative disk substrates (such as custom Gold, Platinum, or Silver), be sure standard price differences are settled prior to order finalization. Inspect the polyimide film window for uniform tension during replacement to prevent micro-wrinkles or localized electrolyte weeping.
