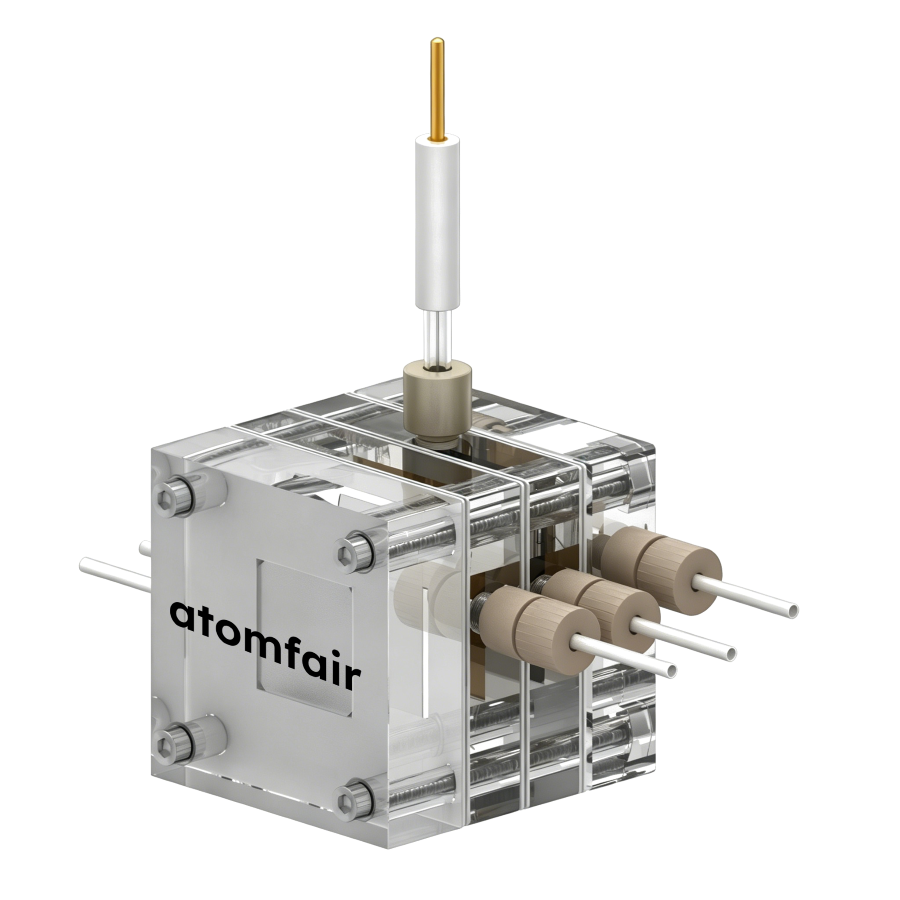

ATOMFAIR® primary flow cell with clear acrylic block body, three side fluid ports, and an extended top gold probe.

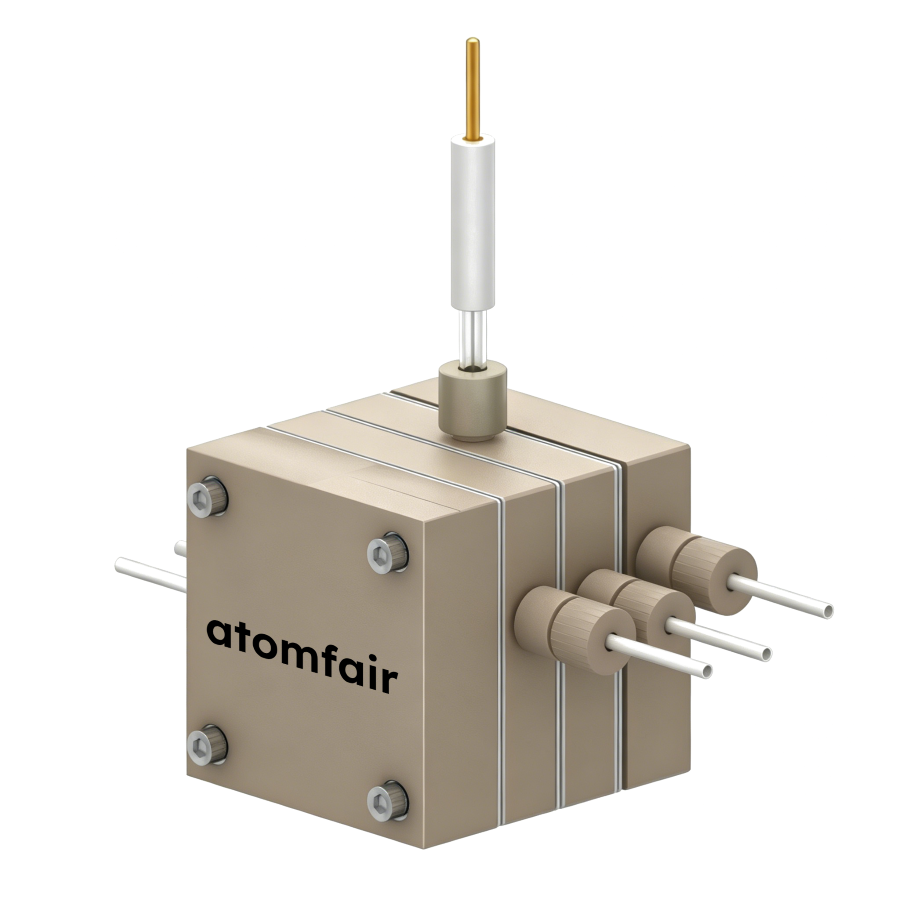

ATOMFAIR® Primary Gas Diffusion Flow Electrochemical Cell - Image 2

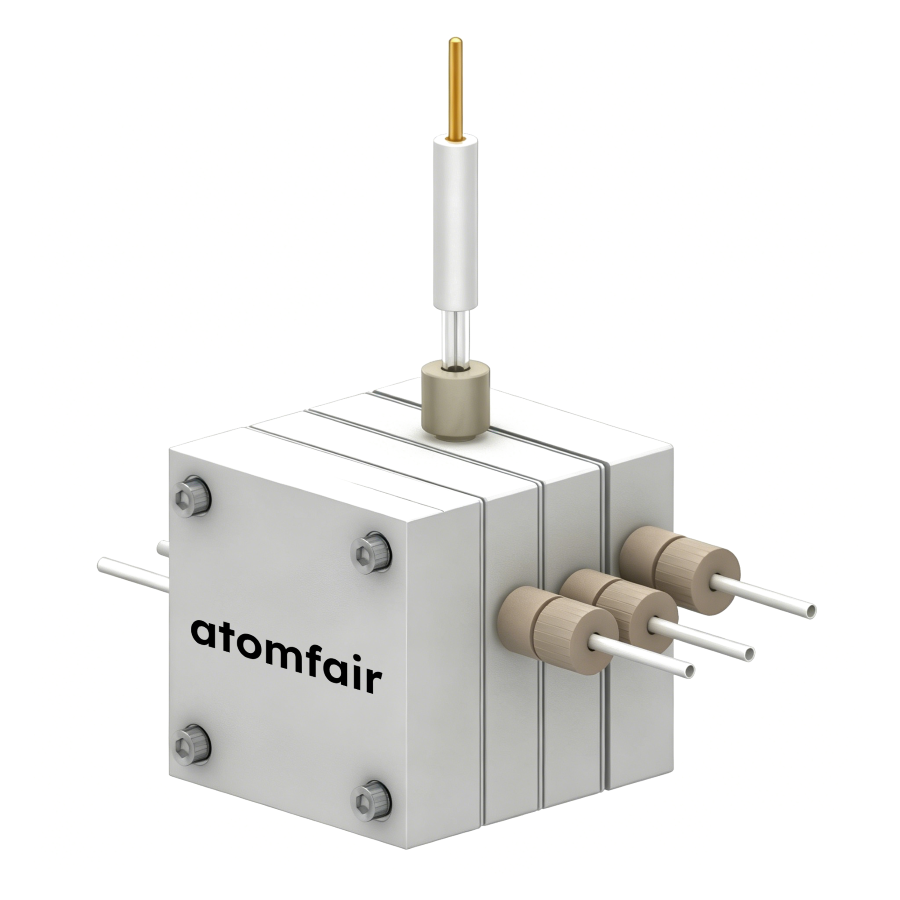

ATOMFAIR® Primary Gas Diffusion Flow Electrochemical Cell - Image 3

ATOMFAIR® Primary Gas Diffusion Flow Electrochemical Cell

Price range: $1,280.00 through $2,480.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Buy primary gas diffusion flow cell price configurations for PMMA spectroelectrochemical validation platform R&D. ISO 9001 validation.

Category:
Tags:
Brands:

Description

ATOMFAIR® PRIMARY GAS DIFFUSION FLOW ELECTROCHEMICAL CELL

OPERANDO COUNTER-CURRENT FLOWCELL MECHANICS

Product Overview
This professional primary-tier analytical architecture is engineered to unlock uncompromised cell-to-cell consistency and highly stable phase interface boundary regulation. Upgraded from basic starter cells to feature an optimized, directional counter-current dynamic flow pathway, it manages independent phase transport velocities to maximize absolute reaction kinetics. It establishes an uncompromised primary gas diffusion flow cell price validation platform for cutting-edge PMMA spectroelectrochemical validation platform R&D workflows.

Technical Specifications

PARAMETER DETAILS
1. Hydrodynamic Vectors & Geometric Profiling
Flow Architecture Advanced counter-current flow scheme: reactant gas feeds downward from the top inlet, while liquid phase electrolyte circulates upward from the bottom manifold
Standard Channel Area Cross-compatible platform supporting standard 10 × 10 mm and 20 × 20 mm profiles (fully customizable to unique specifications)
Interelectrode Gap Fixed 20 mm anode-to-cathode structural spacing optimized for stable resistance fields and uniform current lines
2. Structural Substrate Materials
Body Options Matrix Available in three high-grade analytical materials tailored to specific chemical bounds: Organic Glass (PMMA) for raw visual tracking, Polytetrafluoroethylene (PTFE) for acidic matrices, or Polyetheretherketone (PEEK) for advanced mechanical stability
3. Regulatory & Manufacturing Trace
Manufacturing Rules Processed under strict ISO 9001 compliance validation conditions

Key Features & Advantages
  • Counter-Current Kinetic Enhancement: Top-down gas flow paired with bottom-up liquid loops prevents stagnation layers to boost mass transfer rates.
  • Fixed 20 mm Boundary Stability: Rigid 20 mm electrode gaps lock in uniform solution resistance profiles across extended test routines.
  • Three-Substrate Structural Freedom: Choose between high-clarity PMMA, chemically elite PTFE, or mechanical PEEK to withstand unique lab chemical requirements.

APPLICATION SCOPE: Primary-tier gas diffusion validation, counter-current flow mapping, multi-material matrix testing, and structural 20 mm cell electrocatalysis.
PACKAGING: Sealed protective cleanroom container with dedicated custom cushioning bays for the chosen cell substrate block and fluidic connections.
IMPORTANT NOTICE: When running the primary flow paths, verify that the gas line loops downward into the top port and the liquid line feeds upward into the bottom port. Avoid over-tightening external thread connections on PMMA blocks to shield the high-clarity polymer face from stress crazing.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).

Additional information

Material

PMMA, PTFE, PEEK
