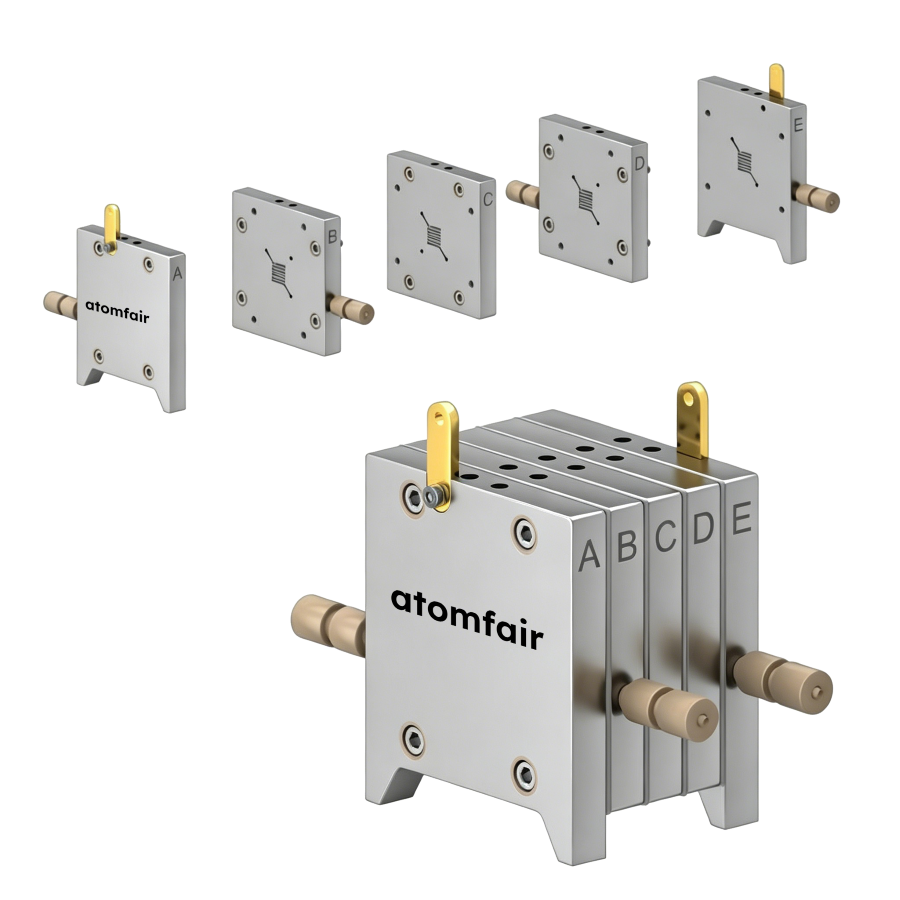

ATOMFAIR® multi-stack MEA cell with lettered units A through E showing individual and stacked modular cell plates.

ATOMFAIR® Multi-Stack Membrane Electrode Assembly Cell

$2,300.00
Notice: Price for reference only. Please contact us directly for an updated quote.

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Buy operando membrane electrode assembly stack price deals for titanium high power electrocatalysis platform R&D. ISO 9001 validation.

Category:
Tags:
Brands:

Description

ATOMFAIR® MULTI-STACK MEMBRANE ELECTRODE ASSEMBLY CELL

OPERANDO SCALABLE HIGH-POWER METROLOGY

Product Overview
This advanced scalable electrochemical installation is engineered to unlock uncompromised cell-to-cell consistency and robust voltage tracking across stacked reaction layers. By stacking individual flow plates to achieve higher operating voltages and total power outputs, it stabilizes macro-scale baseline testing for electrochemical carbon dioxide reduction (CO2RR), water splitting, and organic electrosynthesis. It establishes an uncompromised operando membrane electrode assembly stack price validation platform for cutting-edge titanium high power electrocatalysis platform R&D workflows.

Technical Specifications

PARAMETER DETAILS
1. Stacking Topography & Core Materials
Flow Plate Material Premium High-Purity Titanium (Ti) construction standard (Customizations available using pure Nickel or PEEK)
Internal Circuit Link Integrated internal manifold layout supporting series connection, parallel flow, or combined series-parallel stacking paths
Thermal Management Dedicated internal heating tracks and thermocouple monitoring adapters processed inside individual flow plates
Electronic Terminals Gold-plated copper collector plates providing maximum electrical conductance and elite corrosion shielding
2. Channel Dimensions & Interfacial Seals
Standard Flow Field Precision machined serpentine, parallel, and leaf-vein geometries (Bespoke spiral, grid, and interdigitated networks supported)
Standard Dimensions Flexible active dimensions supporting 10×10, 20×20, 22.4×22.4, 30×30, 50×50, and 100×100 mm footprints
Stress Balancing Architecture Proprietary modular interlocking framework enforcing absolute uniform mechanical pressure distribution from plate to plate
3. Regulatory & Manufacturing Trace
Manufacturing Rules Processed under strict ISO 9001 compliance validation conditions

Key Features & Advantages
  • Modular Multi-Layer Scale-Up: Stacking topology allows swift scaling of fluid networks to test high-voltage electrochemical processes under commercial-like stack loads.
  • Uniform Interfacial Compression: Advanced plate-to-plate mechanical balancing prevents point-stress cracks on membranes, guaranteeing lower ohmic resistance gaps.
  • Flexible Circuit Reconfiguration: Internal manifold design supports rapid shifts between series connections and parallel fluid tracks to adapt to dynamic fluid flows.

APPLICATION SCOPE: Scalable MEA stack testing, high-current water splitting stacks, modular CO2 reduction validation platforms, and macro-scale electrochemical reactor prototyping.
PACKAGING: Reinforced transit instrumentation chest with custom-molded shock-absorbing slots for individual titanium plates and alignment pins.
IMPORTANT NOTICE: When building multi-plate stacks, maintain tight particle control across all gasket tracks. Torque the high-tension assembly bolts incrementally in a star sequence using a calibrated tool to keep sealing forces absolutely flat across every layer.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).
