ATOMFAIR® MULTI-FUNCTIONAL IN-SITU SANDWICH CELL

OPERANDO 4-IN-1 MODULAR ELECTROCATALYSIS

Product Overview
This premium 4-in-1 multi-modal sandwich installation is engineered to unlock uncompromised cell-to-cell consistency across four major electrocatalytic research setups. Its adaptable component architecture allows users to transition between CO2 reduction gas diffusion, pure liquid product solid electrolyte, zero-gap membrane electrode assembly (MEA), and classic metal-air (Zinc-Air / Lithium-Air) battery configurations. It establishes an uncompromised operando multi-modal electrochemical cell price validation platform for cutting-edge titanium solid electrolyte validation platform R&D workflows.

Technical Specifications

PARAMETER DETAILS
1. Core Structural & Material Profile
Structural Body Matrix High-purity Titanium (Ti) combined with premium Polyetheretherketone (PEEK) for elite anti-corrosion metrics
Chamber Dimensions 10 × 10 mm precision reaction cavity with a thin 1.2 mm PEEK middle layer block thickness
Active Area Bounds Strict 1 cm2 geometric target area maximizing current density normalization metrics
Reference Interface Standard configuration equipped with a high-stability Ag/AgCl reference electrode probe
2. Multi-Modal Operation Schemes

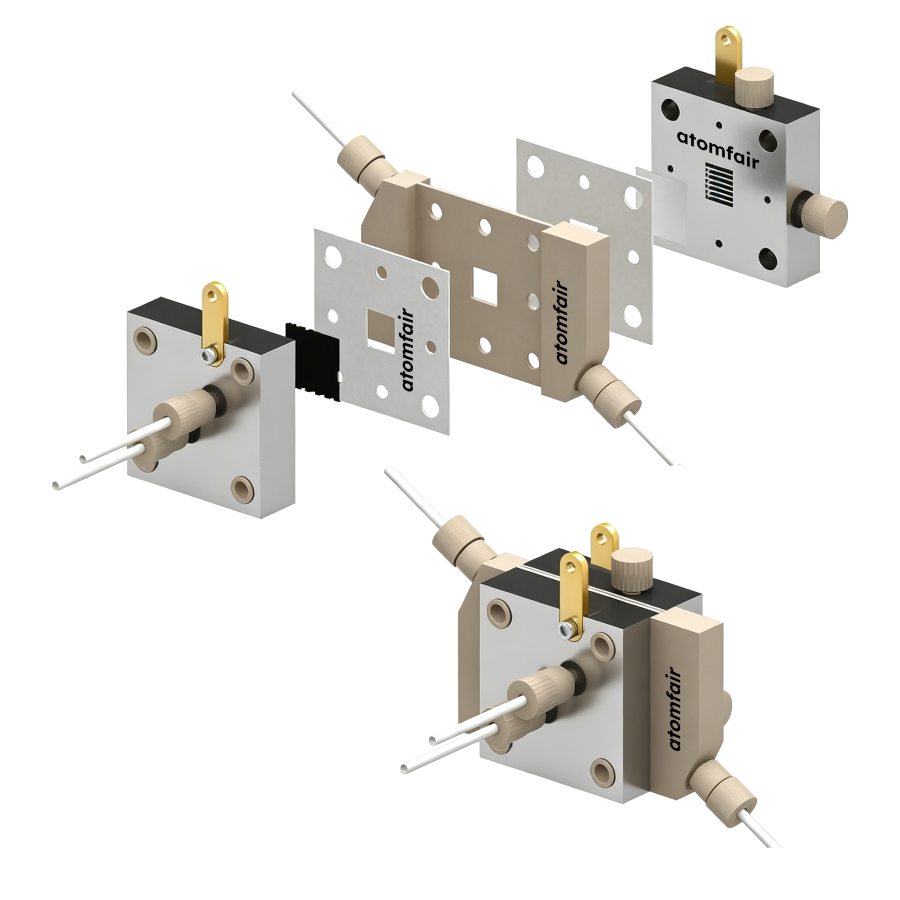

Mode 1: CO2 Gas Diffusion Humidified gas chamber (Plate A) paired with an independent liquid flow layer (Plate B) across carbon paper paths. Incorporates a unique 45° inverted reference probe port to instantaneously bleed gas bubble clutter

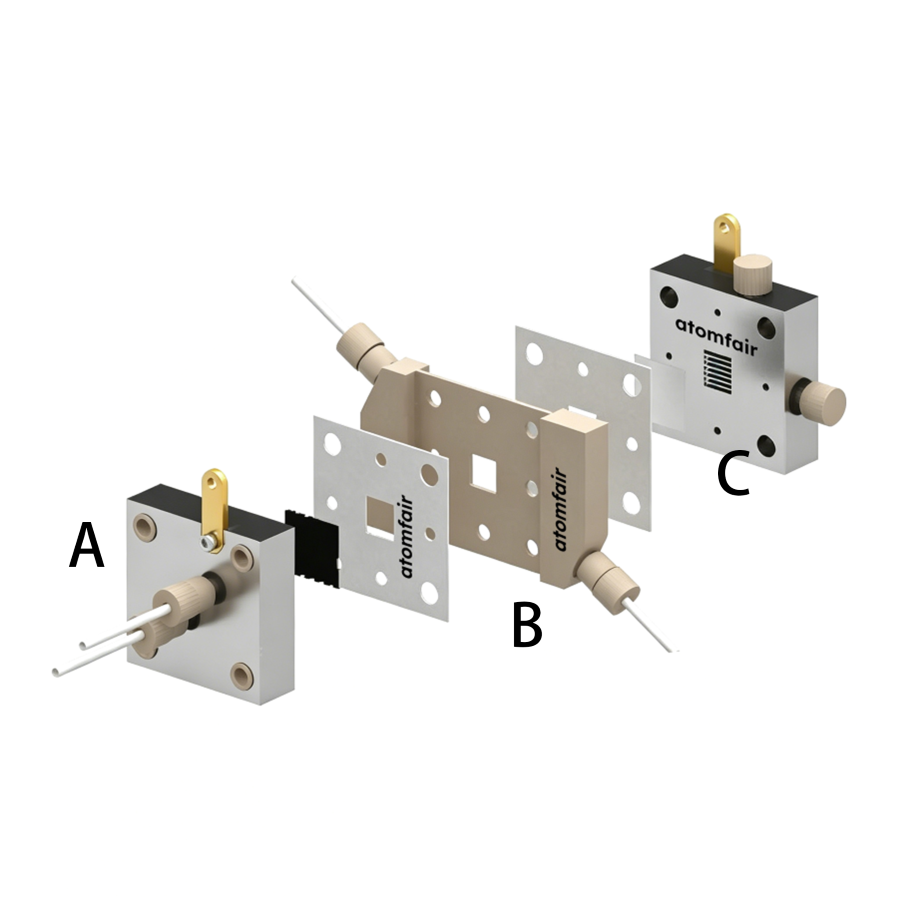

Mode 2: Solid Electrolyte Combines Plates A, B, and C with serpentine tracks to maximize gas tracking. Middle plate B contains an I-shaped core with a 1×1 cm square void packed with ion-exchange resin to directly extract pure liquid product solutions without liquid ions
Mode 3: Membrane Electrode Streamlined 2-plate link coupling plates A and C (bypassing plates B and D) for pure zero-gap gas-to-liquid electrolysis sweeps via serpentine channels
Mode 4: Metal-Air Battery Classic multi-layer stack combining plates A, B, and C to sandwich carbon paper and active metal discs (Zinc or Lithium foils) for air battery testing
3. Regulatory & Manufacturing Trace
Manufacturing Rules Processed under strict ISO 9001 compliance validation conditions

Key Features & Advantages
  • 4-in-1 Adaptive Geometry: Modular sandwich plates quickly adjust to support gas diffusion loops, solid resin blocks, zero-gap MEA plates, or metal foil sheets.
  • 45-Degree Bubble Deflection: Inverted reference probe orientation prevents sticky micro-bubbles from blocking the active electrochemical sensing path.
  • Pure Liquid Synthesis Cavity: Premium I-shaped middle plate locks particulate resins tightly in place to collect high-purity chemicals without raw salt additions.

APPLICATION SCOPE: Multi-functional operando sandwich catalysis, solid electrolyte pure liquid extraction, zero-gap MEA testing, and Zinc-Air/Lithium-Air battery benchmarking.
PACKAGING: Sealed protective cleanroom container featuring individual molded tracks for titanium/PEEK sandwich plates, gaskets, and ion-exchange resin beds.
IMPORTANT NOTICE: When running Mode 2 Solid Electrolyte routes, make sure the 1.2 mm square void is completely filled with uniform exchange resin beads. Symmetrically compress the outer titanium plates in a star configuration to guarantee leak-proof seals without fracturing the polymer alignment paths.
