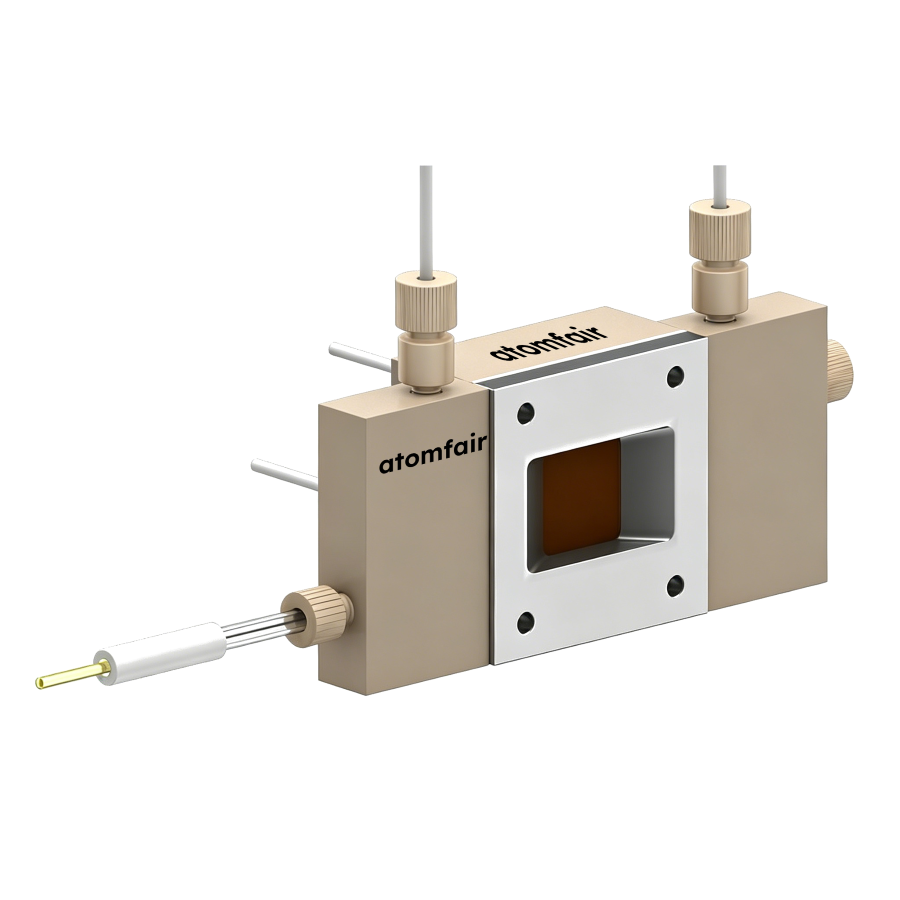

ATOMFAIR® flow cell with beige block body, rectangular window frame, and top vertical tuning screws.

ATOMFAIR® Multi-Functional In-Situ Flow Electrochemical Cell

$1,289.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Buy operando multi-modal electrochemical cell price deals for modular spectroelectrochemical validation platform R&D. ISO 9001 validation.

Category:
Tags:
Brands:

Description

ATOMFAIR® MULTI-FUNCTIONAL IN-SITU FLOW ELECTROCHEMICAL CELL

OPERANDO MULTI-MODAL SYNCHROTRON & OPTICAL PLATFORM

Product Overview
This universal in-situ flow installation is engineered to unlock uncompromised cell-to-cell consistency across a diverse array of analytical methods. Featuring an advanced modular front-end interface that allows instant window configurations, it delivers a closed-loop flow path where electrolyte circulates precisely through the reference field to the active substrate before exiting. It establishes an uncompromised operando multi-modal electrochemical cell price validation platform for cutting-edge modular spectroelectrochemical validation platform R&D workflows.

Technical Specifications

PARAMETER DETAILS
1. Core Fluidics & Geometric Profiling
Fluid Circuit Loop Advanced FlowCell closed loop layout: electrolyte flows sequentially via reference probe, interacts with the active substrate, bridges to the counter field, and exits
Internal Cavity Area 15 × 15 × 1.2 mm active structural chamber optimized for rapid mass transport control
Structural Body Matrix Dual option availability utilizing premium High-Purity Titanium or Polyetheretherketone (PEEK)
2. Multi-Modal Window & Electrode Integration
UV-Vis / Raman Window High-grade Quartz or Polished Sapphire glass configurations (Standard setup includes Sapphire glass window)
XAFS Window Option Ultra-thin Kapton® membrane interface ensuring optimized X-ray transmission baseline paths
XRD Window Option Precision Beryllium (Be) window module tailored for high-energy scattering profiling
Working Contact Modes Dual contact integration topology accommodating both Conventional Form and Gas Diffusion configurations
Electrode Integration Standard configuration equipped with stable Ag/AgCl reference assemblies
3. Regulatory & Manufacturing Trace
Manufacturing Rules Processed under strict ISO 9001 compliance validation conditions

Key Features & Advantages
  • Interchangeable Front-End Geometry: Allows seamless swap-outs of window blocks to adapt the same cell core for UV, Raman, XAFS, or XRD testing.
  • Dual Gas Diffusion Integration: Versatile backing tracks quickly adjust between standard planar testing and complex gas-fed gas diffusion electrode (GDE) dynamics.
  • High-End Structural Adaptability: Engineered in Titanium or PEEK to support aggressive electrolyte matrices while maintaining a leak-proof fluid seal.

APPLICATION SCOPE: Multi-modal in-situ analysis, synchrotron XAFS/XRD tracking, laboratory UV-Vis/Raman spectroscopy, and flexible gas diffusion flow characterization.
PACKAGING: Sealed protective cleanroom container with individual fitted slots for modular window blocks and structural fittings.
IMPORTANT NOTICE: When interchanging between window options (Sapphire, Kapton, or Beryllium), ensure the primary O-ring track is completely free from particulate debris. Tighten the front-plate locking screws evenly in a cross pattern to prevent fluid bypassing or mechanical damage to fragile window materials.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).
