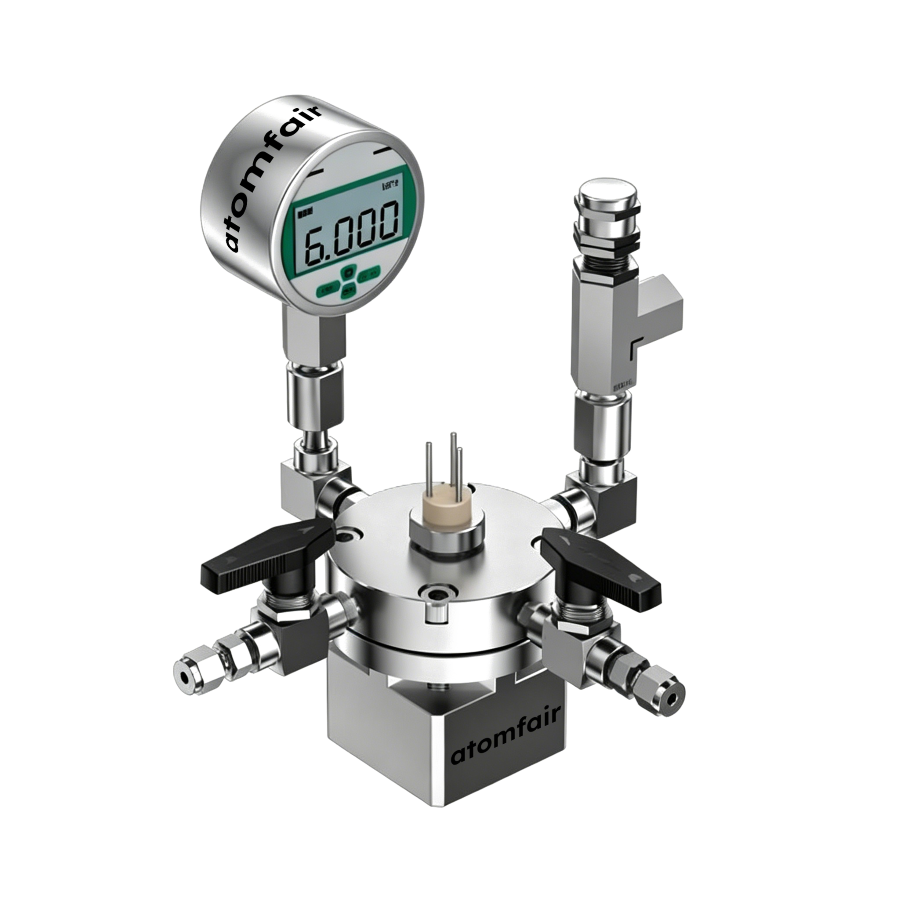

ATOMFAIR® micro-volume high-pressure cell with compact steel housing, top digital gauge, and symmetric twin side valves.

ATOMFAIR® Micro-Volume High-Pressure Electrolysis Cell

$3,819.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Buy high pressure autoclave reactor price deals for titanium pressurized operando electrocatalysis platform R&D. ISO 9001 validation.

Category:
Tags:
Brands:

Description

ATOMFAIR® MICRO-VOLUME HIGH-PRESSURE ELECTROLYSIS CELL

OPERANDO MICRO-VOLUME PRESSURIZED AUTOCLAVE CATALYSIS

Product Overview
This extreme-environment analytical installation represents an ultimate benchmark in micro-scale pressurized three-electrode reactor technology. Specifically optimized for low-volume testing matrices to conserve expensive catalysts or fluid solutions, it provides an uncompromised structural foundation to investigate thermodynamic pathways up to a maximum safety threshold of 6 MPa. It establishes an uncompromised high pressure autoclave reactor price validation platform for cutting-edge titanium pressurized operando electrocatalysis platform R&D workflows.

Technical Specifications

PARAMETER DETAILS
1. Pressure Containment & Housing Metrics
Cell Core Material Premium solid high-purity Titanium (Ti) processing elite mechanical yield bounds and absolute chemical resistance
Maximum Pressure Limit Certified structural architecture engineered with a robust continuous safety ceiling up to 6 MPa
Volumetric Capacity Standard catalog micro-volume size fixed at 10 mL (Fully customizable to bespoke capacities on request)
Valve Fluidic Material High-pressure micro-valves machined from structural Grade 304 Stainless Steel to prevent gas leaking
2. Electrode Integration & Boundary Seals
Working Electrode Adapter Optimized interface matching standard Glassy Carbon (GC) electrode clamping frameworks
Reference Probe Port Isolated feedthrough system matching conventional silver/silver chloride (Ag/AgCl) tracking probes
Counter Electrode Support High-conductivity path optimized to support high-surface platinum (Pt) sheet electrodes
Accessories Sourcing Notice Please note that all active testing elements—including Glassy Carbon clamps, Ag/AgCl reference probes, and Pt sheet electrodes—are sold independently and must be sourced separately
3. Regulatory & Manufacturing Trace
Manufacturing Rules Processed under strict ISO 9001 compliance validation conditions

Key Features & Advantages
  • 6 MPa Overpressure Rating: Certified heavy-duty titanium shell handles extreme internal pressures up to 60 atmospheres safely.
  • Micro-Volume 10 mL Layout: Low-capacity chamber dramatically reduces sample liquid volume requirements for cost-effective research loops.
  • Stainless Steel 304 Gas Manifold: High-precision needle valves provide leak-proof gas feed control and vacuum-tight isolating tracking.

APPLICATION SCOPE: Micro-volume high-pressure autoclave electrocatalysis, supercritical phase boundary studies, pressurized three-electrode validation platforms, and precious catalyst screening.
PACKAGING: Industrial safety transport case featuring high-density shock-absorption liners fitted for titanium hulls and valve lines.
IMPORTANT NOTICE: When ramping testing pressures toward the 6 MPa threshold inside the 10 mL chamber, verify that all electrode seal feedthrough components are fully tensioned. Symmetrically torque the primary flange fasteners to protect the high-load gasket tracks from localized gas leakage under pressure.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).
