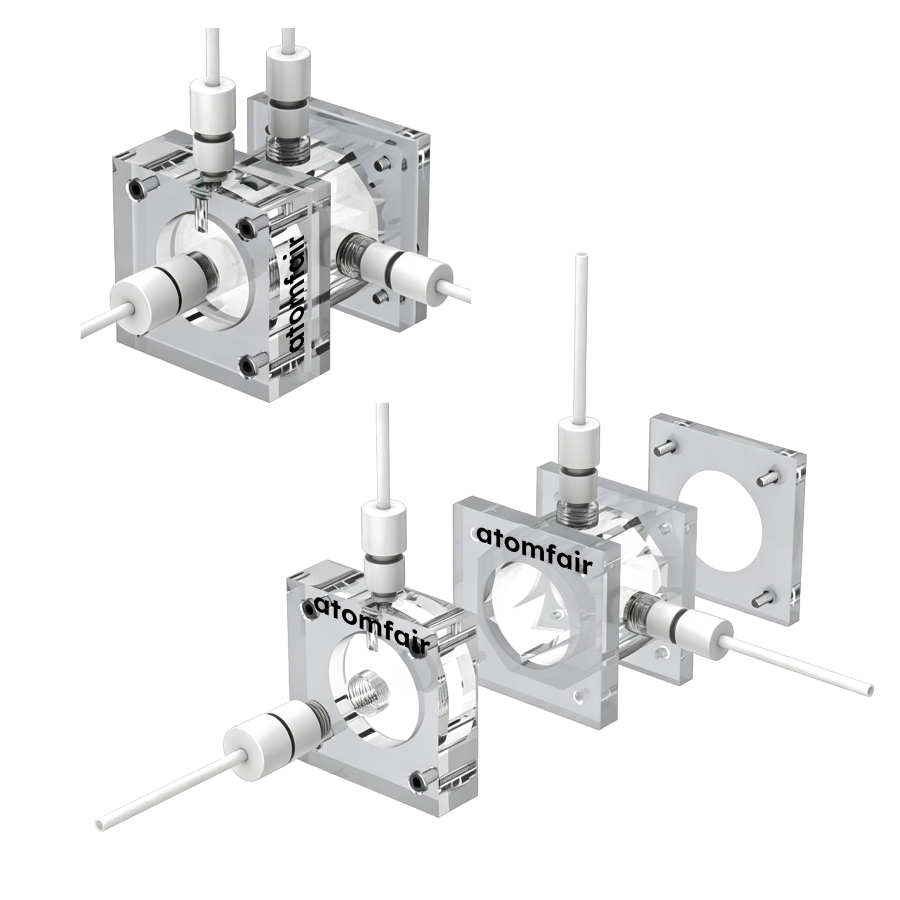

ATOMFAIR® battery cell 3D model with clear blocks, circular viewing windows, white gas tubes, and assembled blocks.

ATOMFAIR® Metal-Air Gas-Circulated Battery Cell

$493.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Buy zinc-air flow battery price setups for PMMA operando battery testing platform R&D. ISO 9001 compliance validation.

Category:
Tags:
Brands:

Description

ATOMFAIR® METAL-AIR GAS-CIRCULATED BATTERY CELL

OPERANDO GAS-CIRCULATED METAL-AIR FLUIDICS

Product Overview
This professional gas-circulated battery characterization setup is explicitly engineered to unlock uncompromised cell-to-cell consistency during live metal-air energy conversion monitoring. Featuring a highly adaptable architecture optimized for continuous reactive gas circulation sweeps across the porous breathing interface, it establishes a reliable, customizable parameter validation matrix for cutting-edge zinc-air flow battery price deals and advanced lithium-air testing workflows.

Technical Specifications

PARAMETER DETAILS
1. Core Structural & Material Matrix
Cell Body Material Premium high-transmittance Poly(methyl methacrylate) (PMMA) providing absolute 360-degree optical tracking and robust alkaline electrolyte compatibility
Fluidic Topology Equipped with integrated gas circulation inlets and outlets to support continuous gas-fed loops (e.g., O2, Air, CO2) directly across active breathing substrates
Custom Dimensions Biaxial modular compression plate framework fully customizable to tailored structural specifications and larger geometric window bounds upon request
2. Electrode Sealing & Fluidic Tracking
Anode Assembly Slot Optimized clamping path accommodating metal sheets such as high-purity Zinc (Zn) plates or Lithium (Li) foils
Gas Cathode Interface Engineered to compress hydrophobic gas-diffusion layers paired with active breathing catalyst meshes
Hermetic Sealing System High-performance fluoroelastomer gaskets ensuring absolute fluidic tracking and zero electrolyte bypass leakage under continuous circulation loops
3. Regulatory & Manufacturing Trace
Manufacturing Rules Processed under strict ISO 9001 compliance validation conditions

Key Features & Advantages
  • Full-Clarity PMMA Architecture: Solid clear framework provides 360-degree real-time tracking of zinc dissolution or gas crossover boundaries.
  • Active Gas Circulation Manifold: Integrated loop channels keep the oxygen supply uniform, avoiding gas transport latency during cycling.
  • Tailored Dimension Modularity: Cell boundaries and active window areas adjust easily to host proprietary catalyst sheets or commercial gas diffusion electrodes.

APPLICATION SCOPE: Zinc-Air battery characterization, Lithium-Air flow testing, operando gas-diffusion fluid profiling, and custom metal anode interface engineering.
PACKAGING: Sealed protective cleanroom box featuring individual molded slots for the clear PMMA flow housing, gaskets, and port connectors.
IMPORTANT NOTICE: PMMA polymer bodies provide high structural transparency but are sensitive to heavy organic solvents. Clean only with aqueous neutral or basic washes. Torque the clamping frame fasteners symmetrically to align the zinc plate or carbon cloth flat without cracking the plastic thread perimeters.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).
