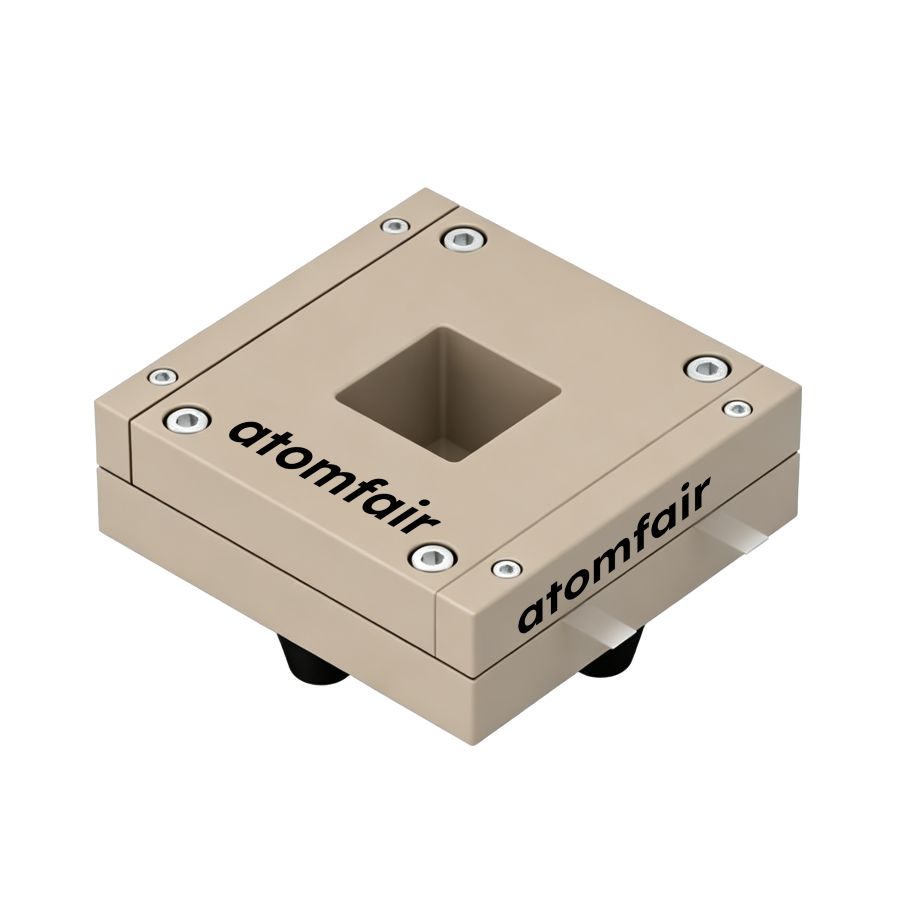

ATOMFAIR® conductivity cell with a square beige PEEK block body, central window opening, and side metal pin tabs.

ATOMFAIR® Membrane Conductivity Two-Electrode Testing Cell

$1,104.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Buy ion exchange membrane conductivity clamp price setups for PEEK solid membrane evaluation platform R&D. ISO 9001 compliance validation.

Category:
Tags:
Brands:

Description

ATOMFAIR® MEMBRANE CONDUCTIVITY TWO-ELECTRODE TESTING CELL

OPERANDO MEMBRANE RESISTANCE METROLOGY

Product Overview
This specialized membrane resistance analytical tool is explicitly engineered to unlock uncompromised cell-to-cell consistency during solid electrolyte screening. Utilizing a precision-stabilized two-electrode testing architecture, it applies uniform mechanical clamping loads to establish reliable, highly reproducible ohmic contact profiling across thin polymer films. It establishes an uncompromised ion exchange membrane conductivity clamp price validation platform for cutting-edge PEEK solid membrane evaluation platform R&D workflows.

Technical Specifications

PARAMETER DETAILS
1. Core Structural & Material Matrix
Cell Body Material Premium solid Polyetheretherketone (PEEK) matrix delivering complete electronic insulation and elite chemical resistance bounds against aggressive aqueous or organic electrolytes
Current Collectors High-purity Platinum (Pt) sheet electrodes embedded flat within the polymer assembly to ensure optimized low-resistance electronic interfaces
Measurement Mode Classic two-electrode configuration optimized for rapid AC impedance spectroscopy loops or DC polarization benchmarking
2. Application Targets & Clamping Interface
Compatible Templates Designed specifically for precise conductivity mapping of diverse ion-exchange membranes, fuel cell separators, or alternative flat solid electrolyte sheets
Clamping Geometry Integrated parallel screw frame mechanics distributing contact compression uniformly to prevent localized film compression wrinkles
Instrument Link Direct compatibility with standard potentiostat frequency response analyzers (FRA) and high-precision LCR meters via insulated gold-plated pins
3. Regulatory & Manufacturing Trace
Manufacturing Rules Processed under strict ISO 9001 compliance validation conditions

Key Features & Advantages
  • High-Purity Platinum Interfaces: Flat Pt sheets minimize contact resistance drift, providing a stable baseline for AC impedance indexing.
  • Two-Electrode Impedance Efficiency: Simplified measurement layout cuts down setup complexity for high-throughput membrane screening.
  • Rigid Machined PEEK Body: Premium structural polymer housing locks clamping paths in place, preventing cell deflection during load adjustments.

APPLICATION SCOPE: Ion-exchange membrane conductivity validation, fuel cell separator impedance profiling, solid polymer electrolyte screening, and automated AC resistance sweeps.
PACKAGING: Sealed protective cleanroom container featuring precision-cut internal slots for individual PEEK block components and Pt sheet connectors.
IMPORTANT NOTICE: Platinum collector surfaces must remain clean and flat to secure uniform contact lines. When adjusting the tightening screws over soft polymer samples, increase the compression load symmetrically to avoid pinching or tearing the active membrane matrix skin.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).
