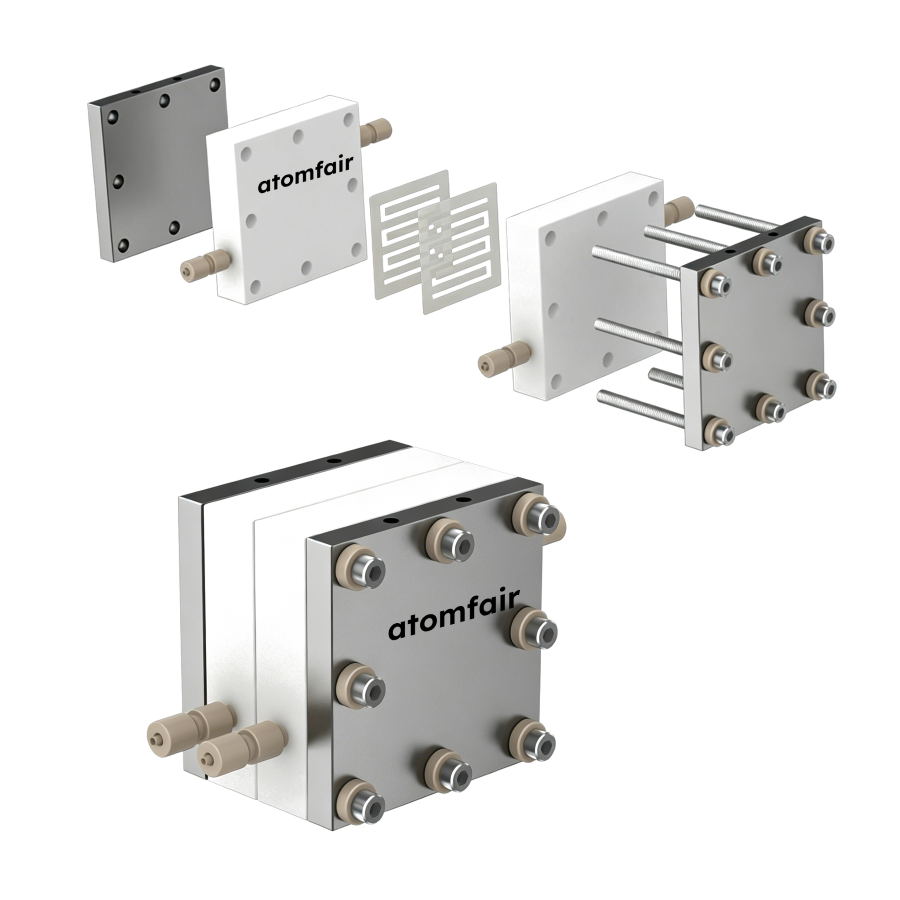

ATOMFAIR® MEA cell 3D model showing white blocks, internal channel plates, long bolts, and fully assembled unit.

ATOMFAIR® Interchangeable Channel MEA Electrolysis Cell

$1,813.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Buy operando PTFE membrane electrode assembly price deals for titanium reinforced electrocatalysis reactor platform R&D. ISO 9001 validation.

Category:
Tags:
Brands:

Description

ATOMFAIR® INTERCHANGEABLE CHANNEL MEA ELECTROLYSIS CELL

OPERANDO MODULAR FLOW PATH CATALYSIS

Product Overview
This professional analytical zero-gap reactor is engineered to unlock uncompromised cell-to-cell consistency and ultra-precise fluidic resistance tuning across modular test scenarios. Specifically optimized for deep-dive validation of electrochemical carbon dioxide reduction (CO2RR) and water splitting kinetics, it features swappable flow path inserts to enable rapid optimization of boundary layer mass transport. It establishes an uncompromised operando PTFE membrane electrode assembly price validation platform for cutting-edge titanium reinforced electrocatalysis reactor platform R&D workflows.

Technical Specifications

PARAMETER DETAILS
1. Bipolar Plates & Heavy Armor Framing
Bipolar Plate Material Premium imported high-purity Polytetrafluoroethylene (PTFE) on both anode and cathode faces, delivering elite chemical resistance against corrosive matrices
Reinforcement Armor Heavy-duty outer retention framework machined from solid high-purity Titanium (Ti) for distortion-free mechanical compression
2. Fluidic Tracking & Interchangeable Modularity
Standard Channel Geometry Precision micro-machined serpentine flow tracks carved inside the core PTFE substrate to maximize uniform convective velocity
Minimum Channel Thickness Ultra-thin boundary layer control achieving a minimum height of up to 0.1 mm for ultra-low ohmic fluid losses
Modularity Adaptation Interchangeable flow track architecture supporting rapid substitution of alternative height channels based on target Reynolds numbers
3. Regulatory & Manufacturing Trace
Manufacturing Rules Processed under strict ISO 9001 compliance validation conditions

Key Features & Advantages
  • Full PTFE Fluid Contacts: Pure fluoropolymer core blocks provide an absolute barrier against strong acid/base electrolyte erosion.
  • 0.1 mm Boundary Resolution: Supports down-scaling flow dimensions to 0.1 mm to reduce diffusion path latency and optimize product selection.
  • Titanium Anti-Deflection Shielding: High-tensile titanium backing plates prevent soft PTFE cold flow deformation, locking in strict channel heights under load.

APPLICATION SCOPE: Interchangeable zero-gap MEA testing, micro-channel boundary layer fluidics, electrochemical CO2 reduction, and alkaline water splitting validation platforms.
PACKAGING: Sealed high-cleanliness protective kit containing individual slotted slots for modular PTFE channel blocks and titanium armor components.
IMPORTANT NOTICE: Ultra-thin 0.1 mm PTFE flow boundaries are highly sensitive to particulate clogging. Always clean and verify the micro-gaskets are seated flat before compressing the heavy titanium outer frame plates to prevent fluid bypass leaks.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).
