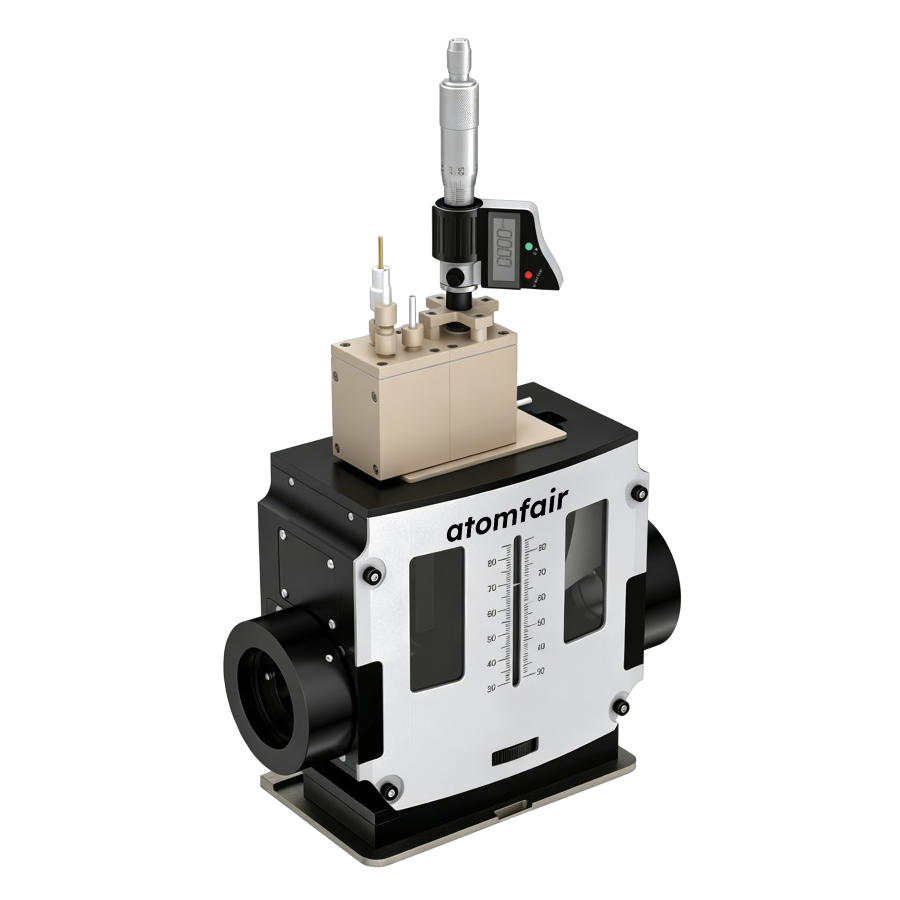

ATOMFAIR® FTIR cell mounted on spectrometer accessory with optical lenses, scale markings, and dual ports.

ATOMFAIR H-Type Replaceable Membrane In-Situ FTIR Electrochemical Cell (Internal & External Reflection Dual Mode)

Price range: $1,661.00 through $2,961.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Buy H-type FTIR cell price deals for internal external reflection FTIR cell R&D. PEEK H-type electrochemical cell standard. Contact inquiry@atomfair.com.

Category:
Tags:
Brands:

Description

ATOMFAIR® H-TYPE REPLACEABLE MEMBRANE IN-SITU FTIR ELECTROCHEMICAL CELL

RESEARCH GRADE MATERIAL

Product Overview
This advanced H-type replaceable membrane in-situ electrochemical cell is engineered for precise Fourier-transform infrared (FTIR) spectroscopic monitoring of catalytic interfaces. Featuring distinct chambers separated by an ion exchange membrane, it allows researchers to deploy either internal reflection or external reflection tracking modes. By incorporating built-in gas purging channels for both cathodic and anodic chambers alongside micrometer-scale distance tuning, it secures exceptional spectral clarity while offering highly competitive H-type FTIR cell price parameters for advanced research facilities worldwide.

Technical Specifications

PARAMETER DETAILS
1. Reflection Mode Mechanisms
Internal Reflection Mode Utilizes a nano gold film chemically deposited onto a monocrystalline Silicon (Si) window substrate to act as the conductive base for catalyst loading.
External Reflection Mode Employs a bare glassy carbon disk substrate for catalyst loading, featuring an integrated micrometer positioner for ultra-precise working electrode distance regulation.
2. Working Electrode Configurations
Internal Reflection WE Base Monocrystalline Silicon (Si) Substrate Window (Un-plated status upon shipment)
External Reflection WE Base 10 mm Core Glassy Carbon Electrode integrated with high-accuracy micrometer hardware
3. Structural & Optical Parameters
Chamber Volume Capacity <20 ml liquid volume capacity
Gas Purging System Dedicated gas inlet and outlet ports integrated into both the cathode and anode chambers
Infrared Viewing Window High-purity Monocrystalline Silicon (Si) Window Viewport
Standard Counter Electrode High-density Graphite Rod Electrode
Standard Reference Electrode Silver/Silver Chloride (Ag/AgCl) Reference Electrode
Manufacturing Rules Manufactured under rigorous PEEK H-type electrochemical cell standard procedures using advanced chemical-resistant tooling

Key Features & Advantages
  • Dual Internal External Reflection FTIR Cell Compatibility: Allows seamless transitions between chemical deposition internal reflection modes and micrometer-driven external reflection setups within a single hardware platform.
  • Micrometer Gap Control: Solves critical lab issues regarding how to adjust infrared liquid layer thickness in FTIR cell operations, optimizing thin-layer electrolyte resistance and reflection signals.
  • Independent Gas Purging: Integrated dual-chamber gas routing guarantees distinct atmospheric isolation for multi-phase catalytic reactions and carbon dioxide reduction pathways.
  • Premium Replaceable Membrane Seal: Quick-clamp middle flange permits secure deployment and simple substitution of standard ion-exchange membranes without risking leakage.

APPLICATION SCOPE: In-situ FTIR spectroelectrochemistry, interfacial catalyst reaction tracking, thin-layer liquid cell analytics, and H-type chamber electrocatalysis validation.
PACKAGING: Heavy-duty shockproof storage case containing modular PEEK H-type cell chambers, integrated micrometer positioner assembly, monocrystalline Silicon window disc, graphite counter electrode, Ag/AgCl reference electrode, and chemical-resistant sealing components.
IMPORTANT NOTICE: Silicon window crystals are supplied bare and require appropriate gold film chemical plating prior to running internal reflection experiments. When adjusting the external reflection working electrode position, advance the micrometer with care to prevent direct mechanical contact or stress on the crystal surface.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).

Additional information

Reflection Mode

Internal Reflection Mode, External Reflection Mode
