Name: ATOMFAIR® High-Pressure Gas Diffusion Flow Cell System - ATOMFAIR
Brand: Atomfair®
Availability: InStock

Description

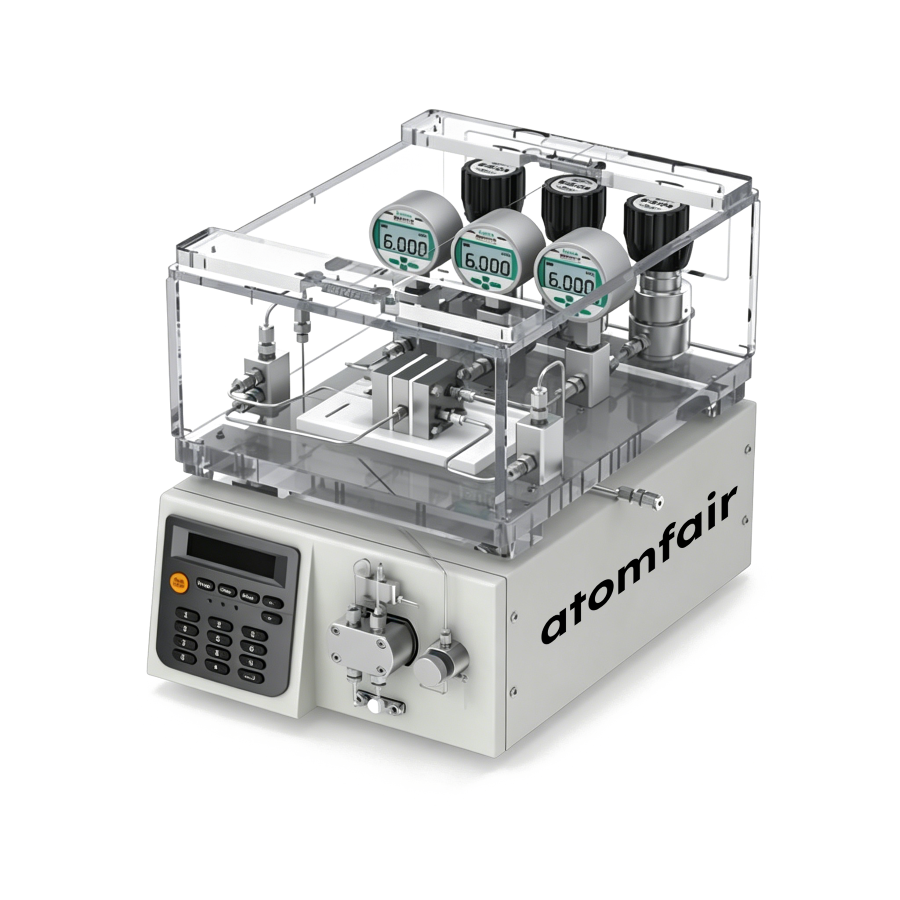

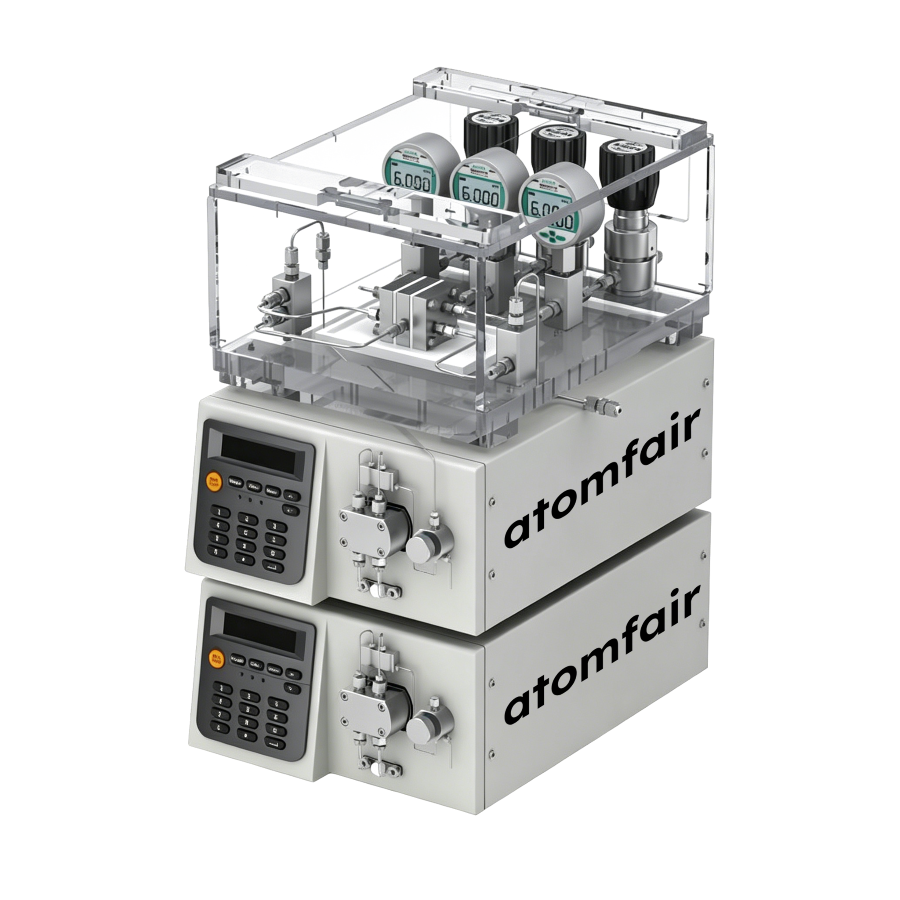

ATOMFAIR® HIGH-PRESSURE GAS DIFFUSION FLOW CELL SYSTEM

OPERANDO HIGH-PRESSURE MICRO-FLOW FLUIDICS

Product Overview

This extreme-environment, analytical instrumentation system represents an ultimate benchmark in integrated high-pressure micro-flow metrology. Combining a solid titanium flow cell core with an advanced, digitally tracked pulse-dampened feed loop, it delivers exceptional hydrodynamic baseline regulation under intense operational constraints. It establishes an uncompromised operando high pressure micro flow system price validation platform for cutting-edge titanium pressurized gas diffusion testing platform R&D workflows.

Technical Specifications

PARAMETER	DETAILS
1. High-Pressure Fluidic Injection Metrics
Flow Rate Bounds	Continuous programmable range from 0.01 to 50.00 mL/min adjusting at a 0.01 mL/min stepping resolution
Injection Accuracy	Strict deviation limit held within ±1.0% (Benchmarked at 10.00 mL/min, 8.5 MPa using H2O at ambient room temperature)
Hydrodynamic Stability	Elite fluidic consistency with Relative Standard Deviation RSD ≤ 0.3% under full-load 8.5 MPa testing configurations
Maximum System Pressure	Dual-stage continuous limit boundaries: sustains up to 30 MPa (at 0.10–20.00 mL/min) or 20 MPa (at 20.01–50.00 mL/min) profiles
Pulse Ripple Suppression	Integrated ripple mitigation holding pressure fluctuations strictly ≤ 0.4 MPa under high-load 8.5 MPa flow lines
Manifold Communication	Equipped with a native industrial RS-485 bus protocol interface for automated laboratory network links
2. Core Flow Cell Architecture
Cell Core Material	Premium solid high-purity Titanium (Ti) delivering absolute structural integrity and full galvanic shielding
Internal Chamber Space	Ultra-low microfluidic dead volume calibrated at a strict 1 mL parameter limit
Core Block Footprint	50 × 50 mm squared titanium matrix body profile
Internal Micro-Channels	Precision machined internal fluid tracking networks running a standard 10 × 10 × 10 mm geometric layout
3. Physical & Electrical Utility Footprints
Net Structural Weight	12 kg rigid benchtop assembly safeguarding against mechanical vibrations
Utility Electrical Load	Standard single phase AC 220V (±10%) grid balancing at a 50 Hz operational frequency
Power Consumption Limit	200 W maximum under peak constant overpressure delivery sweeps
Outer Chassis Profile	420 × 300 × 175 mm comprehensive instrument console framework
4. Regulatory & Manufacturing Trace
Manufacturing Rules	Processed under strict ISO 9001 compliance validation conditions

Key Features & Advantages

30 MPa Dual-Stage Overpressure Boundary: Industrial grade micro-fluidic delivery loop sustains intense pressures to suppress volatile phase boiling limits.
RSD ≤ 0.3% Isothermal Pulse Suppression: Proprietary dampening mechanics force pressure ripples below 0.4 MPa, protecting tracking baselines.
1 mL Microfluidic Titanium Cell: Ultra-low 1 mL chamber dead volume reduces solution consumption, optimizing rare catalyst screening loops.

APPLICATION SCOPE: High-pressure microfluidic gas diffusion tracking, supercritical boundary layer fluidics, automated continuous-flow electrocatalysis, and multi-channel kinetic screening.

PACKAGING: Heavy-duty industrial instrument transport crate containing custom high-density shock stabilization modules for the console and titanium flow blocks.

IMPORTANT NOTICE: Prior to initiating high-frequency 30 MPa injection sweeps, ensure all RS-485 bus links are active. Purge all internal 10 × 10 × 10 mm channel networks of secondary micro-bubbles to maintain the strict ±1.0% flow accuracy profile safely.

TAILORED SOLUTIONS FOR RESEARCH

Contact our engineering team for technical support or official institutional quotations.
