Name: ATOMFAIR® External Membrane High-Pressure Split Cell - ATOMFAIR
Brand: Atomfair®
Availability: InStock

Description

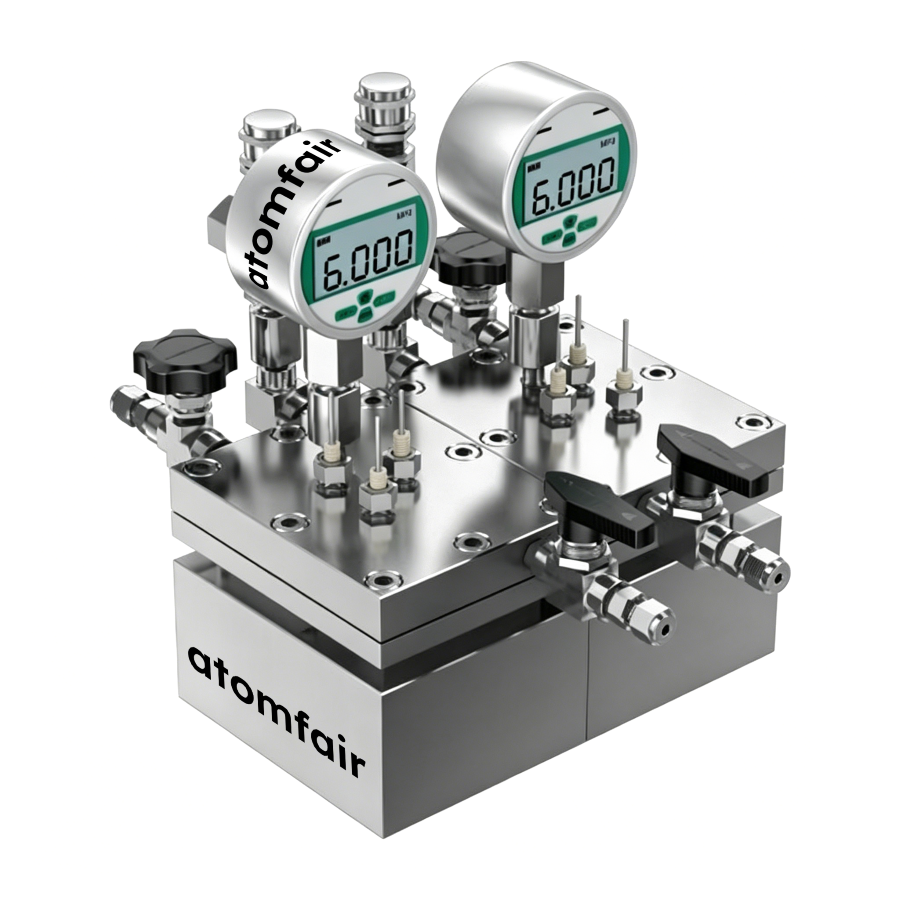

ATOMFAIR® EXTERNAL MEMBRANE HIGH-PRESSURE SPLIT CELL

OPERANDO HIGH-PRESSURE EXTERNAL-CLAMP MEMBRANE METROLOGY

Product Overview

This extreme-environment analytical installation represents an ultimate milestone in scale-up split-chamber autoclave architecture. Specifically overhauled to place the interchangeable ion-exchange film interface along an accessible external compression bracket perimeter rather than deeply recessed internal tracks, it simplifies swift film swap-outs while locking in absolute hermetic sealing bounds continuously up to 6 MPa. It establishes an uncompromised high pressure autoclave reactor price validation platform for cutting-edge titanium pressurized operando electrocatalysis platform R&D workflows.

Technical Specifications

PARAMETER	DETAILS
1. Pressure Containment & Scale-Up Metrics
Cell Core Material	Premium solid high-purity Titanium (Ti) construction standard, achieving elite mechanical structural limits and robust anti-corrosion metrics
Maximum Pressure Limit	Certified engineering design rated continuously for extreme overpressure environments up to 6 MPa
Volumetric Capacities	Scale-up twin-chamber layout available in standard catalog options: balanced 50 mL + 50 mL or expanded 100 mL + 100 mL internal dimensions (Bespoke single block cavity spaces fully customizable on demand)
Valve Fluidic Material	High-pressure needle valves machined from structural Grade 304 Stainless Steel to prevent gas leaking variables
2. Three-Electrode Network & External Membrane Topo
Chamber Allocation	Asymmetric functional separation loops: Chamber 1 accommodates both the Working Electrode clamp and the Reference probe feed; Chamber 2 isolates the Counter Electrode assembly completely
Membrane Modularity	Upgraded configuration transferring the interchangeable membrane seating track outward to an easily accessible external compression bracket array, streamlining film exchange actions
Working Electrode Adapter	Optimized high-load compression clamp matching standard Glassy Carbon (GC) electrode frames
Reference Probe Port	Isolated feedthrough interface designed to seal traditional silver/silver chloride (Ag/AgCl) reference probes
Counter Electrode Support	High-conductivity circuit path optimized to clamp high-surface platinum (Pt) sheet electrodes
Accessories Sourcing Notice	Please note that all active testing elements—including Glassy Carbon clamps, Ag/AgCl reference probes, and Pt sheet electrodes—are sold independently and must be sourced separately
3. Regulatory & Manufacturing Trace
Manufacturing Rules	Processed under strict ISO 9001 compliance validation conditions

Key Features & Advantages

External Quick Clamping Frame: External-facing membrane junction allows swift, effortless swap-outs of delicate ionomer sheets.
Scale-Up 50/100 mL Cavities: Expanded block capacities adapt to macro-scale electrochemical experiments without current saturation.
Stainless Steel 304 Fluid Manifold: High-precision needle valves provide leak-proof gas feed control and vacuum-tight isolating tracking.

APPLICATION SCOPE: Scale-up high-pressure split-membrane autoclave electrocatalysis, crossover-controlled pressurized studies, reference-tracked macro half-cell validation, and organic synthesis profiling.

PACKAGING: Industrial-grade safety transit crate container featuring tailored cushioning slots for the heavy external-clamp titanium reactor blocks and valve stems.

IMPORTANT NOTICE: When mounting the external interchangeable membrane module between the 50/100 mL hulls, verify that the film sits perfectly centered along the outer high-pressure gasket perimeter tracks. Symmetrically compress all locking fasteners to 6 MPa limits to lock down a gas-tight seal without over-stressing the active polymer boundary lines.
