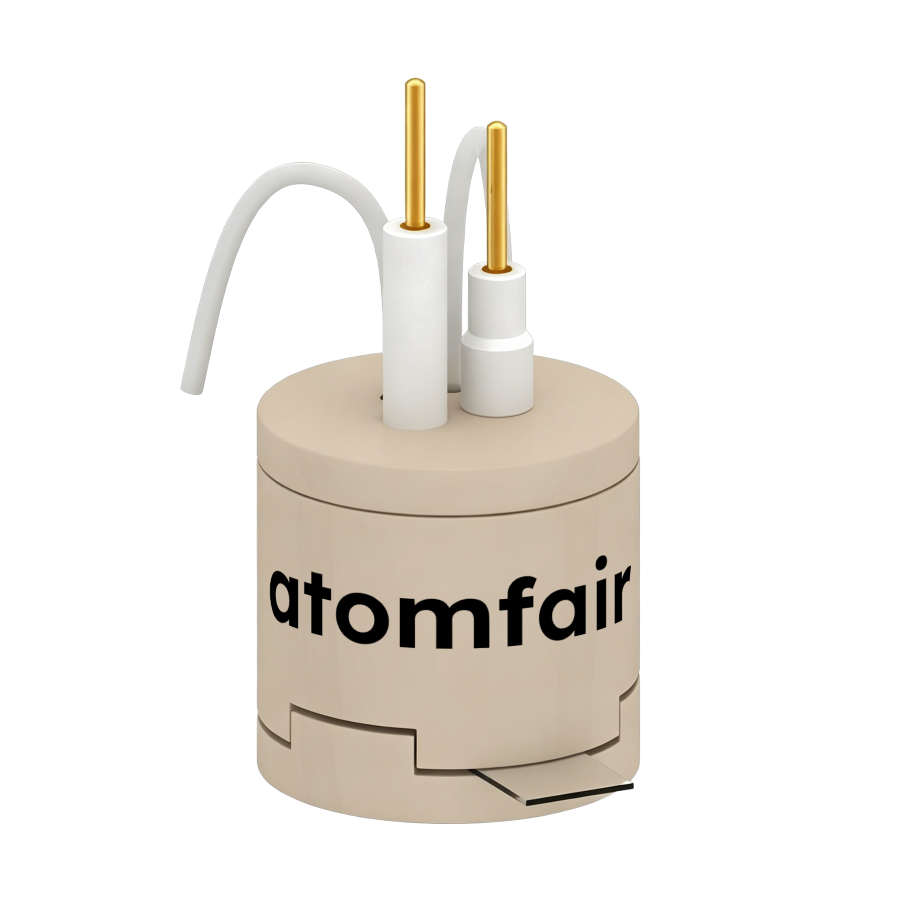

ATOMFAIR® ECL cell with cylindrical beige PEEK body, top white electrode rods, and a curved tube.

ATOMFAIR® Electrochemiluminescence Three-Electrode PEEK Cell

$646.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Buy operando ECL flow cell price setups for PEEK electrochemiluminescence validation platform R&D. ISO 9001 compliance validation.

Category:
Tags:
Brands:

Description

ATOMFAIR® ELECTROCHEMILUMINESCENCE THREE-ELECTRODE PEEK CELL

OPERANDO ECL PHOTON DETECT METROLOGY

Product Overview
This specialized analytical electrochemiluminescence (ECL) testing cell is explicitly engineered to unlock uncompromised cell-to-cell consistency during live photon-emission mapping. Optimized for bottom-up window luminescence collection via standard optical setups, it integrates gas purging structures inside an electronic-insulating body frame. It establishes an uncompromised operando ECL flow cell price validation platform for cutting-edge PEEK electrochemiluminescence validation platform R&D workflows.

Technical Specifications

PARAMETER DETAILS
1. Core Structural & Material Matrix
Cell Body Material Premium solid Polyetheretherketone (PEEK) delivering absolute electronic insulation and elite chemical resistance bounds against organic or aqueous media
Chassis Diameter Main block cylinder outer diameter calibrated strictly to ∅40 mm
Base Step Profile Precision-milled lower seating step profile holding dimensions of ∅29 × 1 mm for optimal spectrometer alignment
Clearance Limits Total cell layout height from the window base line to the probe connection caps restricted ≤ 55 mm to guarantee tight darkbox stage clearance
2. Three-Electrode Configuration & Light Paths
Working Interface Path Bottom viewing path optimized to secure conductive high-transmittance Indium Tin Oxide (ITO) or Fluorine-doped Tin Oxide (FTO) flat glass working electrodes
Active Area Target Strict 1 cm2 geometric window allocation maximizing emission flux normalization mapping
Standard Included Probes Shipped complete with a premium Silver/Silver Chloride (Ag/AgCl) reference electrode and a high-purity Platinum (Pt) sheet counter electrode assembly
Fluidic Purging Paths Integrated top cap manifold featuring dedicated gas inlet and outlet purging ports to control dissolved oxygen backgrounds
3. Regulatory & Manufacturing Trace
Manufacturing Rules Processed under strict ISO 9001 compliance validation conditions

Key Features & Advantages
  • Bottom-Up Optical Porting: Base window alignment accommodates ITO/FTO substrates to ensure unhindered photon transmission to photomultiplier tubes.
  • Strict ≤ 55 mm Compact Profile: Low-profile height clearance permits effortless placement inside standard light-tight box enclosures.
  • Integrated Atmosphere Purging: Dual gas ports allow rapid inline deoxygenation to suppress triplet-state quenching variables.

APPLICATION SCOPE: Electrochemiluminescence (ECL) assay validation, operando photon-emission mapping, ITO/FTO boundary interface screening, and light-tight darkbox electrochemistry.
PACKAGING: Sealed protective cleanroom box with custom-cut high-density foam tracking for the PEEK cylinder body, Ag/AgCl probe, and Pt counter electrode.
IMPORTANT NOTICE: Conductive ITO/FTO glass substrate layers possess highly fragile physical properties. When locking the ∅29 × 1 mm lower step seal frame, torque perimeter fasteners gradually by hand to distribute compression forces without cracking or scratching the optical path.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).
