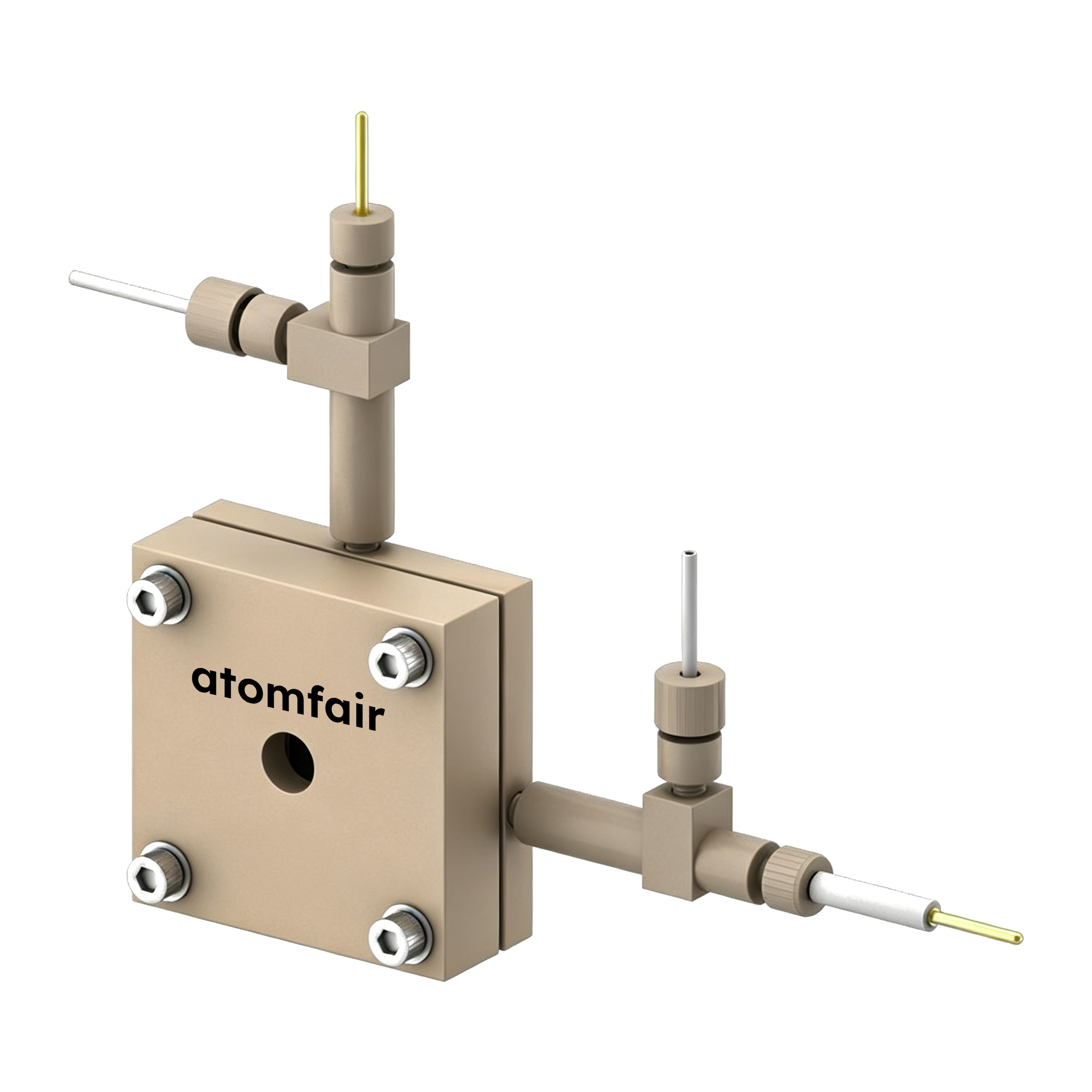

ATOMFAIR® transmission FTIR cell with beige block block housing, corner bolts, and vertical needle ports.

ATOMFAIR Transmission In-Situ FTIR Electrochemical Cell (CaF2 Viewport Type)

$917.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Buy transmission infrared cell price deals for CaF2 window transmission FTIR cell R&D. PEEK transmission electrochemical cell standard. Contact inquiry@atomfair.com.

Category:
Tags:
Brands:

Description

ATOMFAIR® TRANSMISSION IN-SITU FTIR ELECTROCHEMICAL CELL

RESEARCH GRADE MATERIAL

Product Overview
This professional transmission-mode in-situ electrochemical cell is engineered for straight-line beam path Fourier-transform infrared (FTIR) characterization of liquid-phase interfaces and soluble species. By trapping an ultra-thin layer of electrolyte between highly clear optical windows, the architecture allows infrared light to pass directly through the working electrode matrix. Outfitted with integrated gas handling lines and a full platinum-based three-electrode network, this platform ensures outstanding molecular detection fidelity while delivering an advantageous transmission infrared cell price point for international chemical laboratories.

Technical Specifications

PARAMETER DETAILS
1. Cell Design & Material Profile
Optical Mode Direct Transmission Mode (Infrared beam passes straight through the cell core)
Cell Body Material Premium Polyetheretherketone (PEEK) with high chemical inertness
Gas Flow Handling Equipped with integrated gas inlet and outlet purging channels
2. Optical Viewport & Liquid Gap
Infrared Window Crystal Premium Calcium Fluoride (CaF2) Viewport Discs
Solution Layer Thickness Constrained liquid path spacing of exactly 0.5 mm
3. Electrochemical Electrode Array
Working Electrode (WE) High-transmission fine Platinum (Pt) Mesh / Net Electrode
Counter Electrode (CE) High-purity Platinum (Pt) Wire Electrode
Reference Electrode (RE) High-purity Platinum (Pt) Wire Reference Assembly
Manufacturing Rules Machined and verified in full alignment with the PEEK transmission electrochemical cell standard under microscopic quality control

Key Features & Advantages
  • Premium CaF2 Window Transmission FTIR Cell Optics: Outfitted with high-grade Calcium Fluoride viewports that deliver broad infrared transmission ranges and strong resistance to moderate liquid pressures.
  • Strict Thin-Layer Control: Efficiently tackles how to minimize solution thickness in transmission FTIR cell operations by setting a reliable 0.5 mm liquid boundary, reducing solvent absorption background.
  • All-Platinum Three-Electrode Core: Features a high-conductivity platinum mesh working mesh combined with matching platinum wire reference and counter components for stable material response.
  • Integrated Gas Purging Matrix: Dual inlet-outlet pathways enable direct deoxygenation or gaseous reactant introduction right inside the active analytical cavity.

APPLICATION SCOPE: Transmission-mode in-situ FTIR analysis, soluble reaction intermediate tracking, organic electrolyte degradation studies, and coordinate chemistry tracking.
PACKAGING: Shockproof modular storage chamber containing the PEEK transmission cell core, dual Calcium Fluoride window discs, platinum mesh working grid, platinum wire reference/counter lines, and fluidic seals.
IMPORTANT NOTICE: Calcium Fluoride (CaF2) window crystals are slightly sensitive to highly acidic aqueous solution conditions. Always clean the fluidic cavity using clean anhydrous solvents immediately following testing cycles to protect window smoothness and preserve optical clarity.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).
