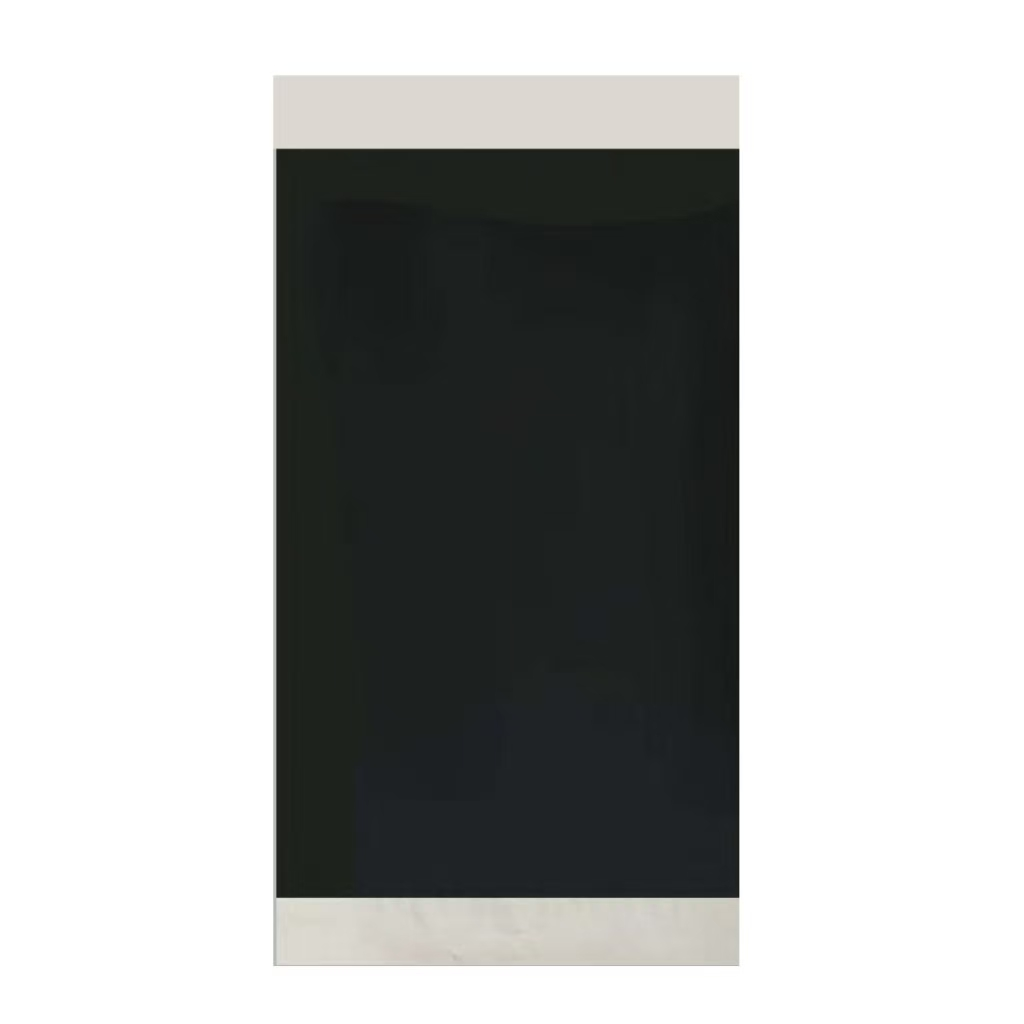

Wet process single-sided P2-type NMTO sodium nickel manganese oxide cathode sheet 13.5 mg/cm² S01 by Atomfair for sodium-ion batteries.
ATOMFAIR® P2-Type NMTO Sodium Nickel Manganese Oxide Cathode Sheet - S01, Single-Sided, 13.5 mg/cm², Wet Process, 5 Pack - Image 2
ATOMFAIR® P2-Type NMTO Sodium Nickel Manganese Oxide Cathode Sheet - S01, Single-Sided, 13.5 mg/cm², Wet Process, 5 Pack - Image 3
ATOMFAIR® P2-Type NMTO Sodium Nickel Manganese Oxide Cathode Sheet - S01, Single-Sided, 13.5 mg/cm², Wet Process, 5 Pack - Image 4

ATOMFAIR® P2-Type NMTO Sodium Nickel Manganese Oxide Cathode Sheet – S01, Single-Sided, 13.5 mg/cm², Wet Process, 5 Pack

$89.00

S01 NMTO (P2-Type) Sodium Nickel Manganese Oxide Electrode Sheet, Single-sided wet coating with standard compaction density.

Quantity Discount (%) Price
1 – 4 — $89.00
5+ — $89.00
Category:
Tags: , , ,
Brands:

Description

Atomfair S01-NMTO (P2-Type) Sodium Nickel Manganese Oxide Electrode Sheet

RESEARCH GRADE MATERIAL

Product Overview
The Atomfair S01-NMTO is a specialized P2-Type Sodium Nickel Manganese Oxide electrode sheet, precision single-side coated with 13.5 mg/cm² via a wet process. Optimized for sodium-ion battery R&D, this electrode provides the structural stability and electrochemical reliability required for advanced material evaluation and high-precision laboratory analysis.

Technical Specifications
PARAMETER DETAILS
Product Code S01
Coating Material NMTO (P2-Type Sodium Nickel Manganese Oxide)
Active Material Ratio 93.50%
Coating Density 13.5 mg/cm²
Coating Area 152 * 100 mm
Coating Type Single-sided
Substrate Material Carbon-coated aluminum foil
Current Collector Areal Density 3.63 mg/cm²
Substrate Thickness 12 + 0.5 + 0.5 μm
Substrate Size 186 * 100 mm
Compaction Density 2.08 g/cm³
Specific Capacity 115 mAh/g
Coating Process Wet Process

Key Features & Advantages
  • Advanced P2-Type Structure: Specifically engineered NMTO formulation for superior sodium-ion intercalation performance.
  • Enhanced Interface Stability: Features carbon-coated aluminum foil to ensure optimal electrical contact and cycle life.
  • Precision Wet Coating: Guarantees uniform mass loading and thickness across the 152×100 mm active area.
  • Fully Customizable: Flexible specifications available for coating density, width, and foil dimensions to meet unique project requirements.

APPLICATION SCOPE: Sodium-ion battery Research & Development, laboratory benchmarking, and electrochemical characterization.
PACKAGING: 5 sheets per pack, vacuum-sealed for consistent lab quality.
IMPORTANT NOTICE: Sold exclusively for laboratory research. Standard baking protocol: 12 hours under vacuum at 100°C.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official quotations.
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
