Atmofair NFM111-D05 Sodium Nickel Iron Manganese Oxide (NFM111) Electrode SheetRESEARCH GRADE MATERIAL
|
|||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or customization requests.
EMAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
Disclaimer: Sold exclusively for laboratory research.
|

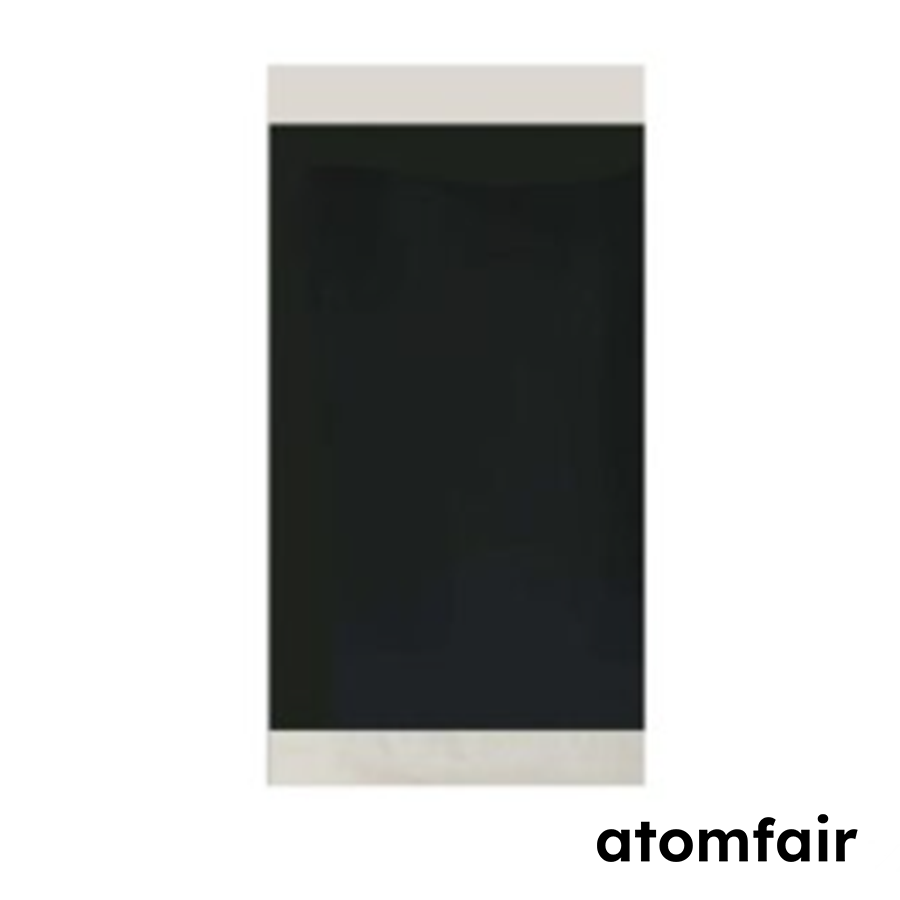

The NFM111-D05 is a double-side coated sodium nickel iron manganese oxide (NFM111) electrode sheet with a coating density of 36 mg/cm² on a carbon-coated aluminum foil substrate. This research-grade material is designed for sodium-ion battery R&D and exhibits a compaction density of 2.99 g/cm³ and a capacity of 125 mAh/g.
- Coating Material: The coating is NFM111 with 95.30% active material ratio applied via a precision wet process.
- Substrate: The substrate is carbon-coated aluminum foil with a thickness of 12 + 0.5 + 0.5 μm and an areal density of 3.63 mg/cm².
- Compaction Density: The compaction density of the electrode is 2.99 g/cm³.
- Capacity: The electrode delivers a specific capacity of 125 mAh/g.
- Coating Area: Each sheet has a coating area of 150×110 mm on a substrate size of 184×110 mm.
What specific capacity can be expected from the NFM111-D05 electrode given its 95.30% active material ratio and double-sided 36 mg/cm² loading?
The NFM111-D05 electrode delivers a rated capacity of 125 mAh/g, as specified in the product sheet. This performance is supported by a high active material ratio of 95.30%, which minimizes inactive binder and conductive additive content, enabling reliable and reproducible electrochemical testing for sodium-ion battery R&D.
What cell assembly constraints should be considered when using the NFM111-D05 double-side coated electrode with its carbon-coated aluminum substrate?
The electrode uses a carbon-coated aluminum foil substrate with a total thickness of 13 µm (12 µm base + 0.5 µm coatings on each side) and a substrate size of 184×110 mm. The double-sided coating area is 150×110 mm, leaving a 34 mm uncoated margin on one side for current collector tab attachment. The carbon coating enhances electrical conductivity and cycling stability, but the full electrode must be handled carefully to avoid delamination during coin cell or pouch cell assembly.
What vacuum baking conditions are required for the NFM111-D05 electrode before electrochemical testing?
The manufacturer recommends a precision vacuum baking protocol: 12 hours at 100°C. This pre-treatment is critical for removing residual moisture and solvent traces from the wet-process coating, ensuring optimal electrochemical performance. Sodium-ion cathode materials are particularly moisture-sensitive, and this step helps maintain material integrity and cell reliability.
This double-side coated NFM111 electrode sheet offers a high active material loading of 36 mg/cm² and 95.3% active ratio on a carbon-coated aluminum substrate, designed for sodium-ion battery research. It requires vacuum baking at 100°C for 12 hours prior to use, and standard dimensions may need customization for certain cell formats.
Positive
- High active material loading: With 36 mg/cm² coating density and 95.3% active material ratio, the electrode provides high areal capacity for sodium-ion battery testing.
- Carbon-coated aluminum substrate: The carbon-coated aluminum foil current collector enhances electrical contact and cycling stability, as specified in the product features.
Trade-offs
- Requires vacuum baking protocol: The electrode must be vacuum baked at 100°C for 12 hours before use to ensure optimal material performance, adding preparation time.
- Standard dimensions may limit compatibility: The fixed coating area (150×110 mm) and substrate size (184×110 mm) may not fit all cell configurations, requiring custom sizing.
