66AH HIGH-PERFORMANCE AND HIGH-SAFETY SOLID-STATE BATTERY | ATOMFAIRCOMMERCIAL GRADE · PRODUCTION
|
|||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: INQUIRY@ATOMFAIR.COM
|
|||||||||||||||||||||||||||||||||||||
|
MANUFACTURER: ATOMFAIR LLC
BRAND: ATOMFAIR®
|
This solid-state pouch cell must be operated within -30°C to 70°C to maintain electrochemical stability and prevent irreversible capacity fade. Exceeding the specified temperature limits during operation or storage may lead to accelerated degradation and safety risks.
- Temperature Constraint: Operate the cell only within the temperature range of -30°C to 70°C to ensure safe and stable performance.
How does the 5C continuous discharge rating affect the cycle life of the 66Ah solid-state battery?
The battery maintains ≥80% capacity after 1000 cycles specifically under 1C/1C cycling conditions; no cycle life data is provided for sustained 5C discharge, so prolonged high-rate operation will likely degrade capacity faster than the rated 1000 cycles.
What are the key integration constraints for incorporating this 66Ah solid-state pouch cell into an existing EV battery pack design?
The cell has a nominal voltage of 3.65V and dimensions of 10.5×161×227 mm, which differ from common EV cell formats; pack designers must adapt mechanical retention systems for the pouch form factor and ensure BMS compatibility with the 3.65V nominal voltage.
What safety precautions are inherent to this solid-state battery's design that differentiate it from conventional lithium-ion cells?
The composite solid-state electrolyte (C-SSE) eliminates liquid leakage risks and enhances thermal stability, providing intrinsic safety advantages over liquid electrolyte cells; however, the 310 Wh/kg energy density still mandates standard electrical isolation and short-circuit protection.

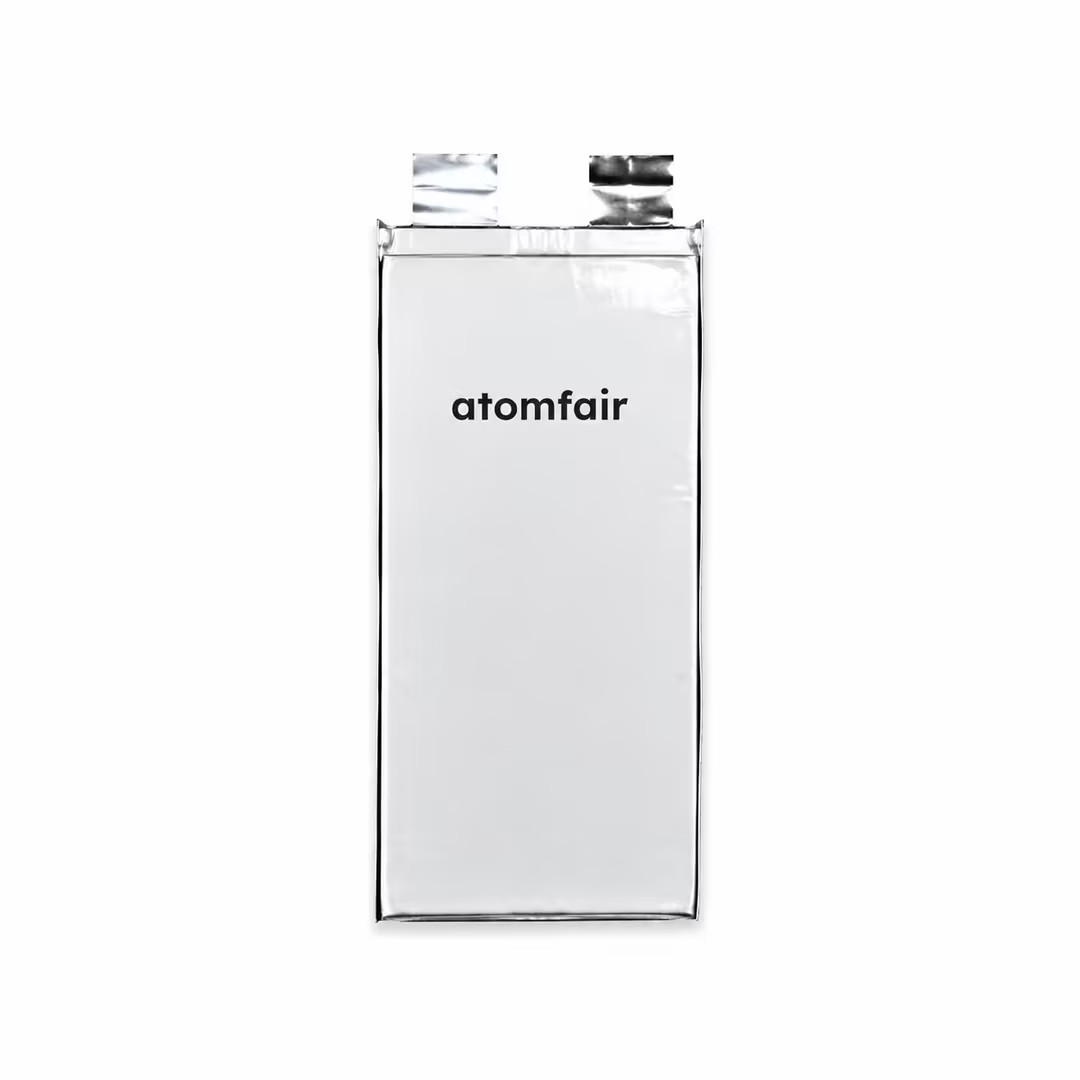

This 66Ah solid-state pouch cell delivers 310 Wh/kg and 625 Wh/L over a wide -30 to 70°C range, but the peak 8C discharge is limited to 30 seconds and continuous charge is capped at 3C.
Positive
- High gravimetric and volumetric energy density: Achieves 310 Wh/kg and 625 Wh/L using NCM-Gr/Si,C-SSE chemistry, enabling extended range in electric vehicles, eVTOL, and marine vessels.
- Wide operating temperature range: Reliable capacity retention from -30°C to +70°C, allowing deployment in extreme climates without thermal management overhead.
Trade-offs
- Peak discharge duration limited to 30 seconds: The 8C burst discharge is rated for only 30 seconds; sustained high-power output is restricted to 5C continuous, which may constrain transient load demands.
- Continuous charge rate capped at 3C: Maximum continuous charge current is 3C, which may be slower than some competing fast-charge chemistries, requiring longer charging windows.
