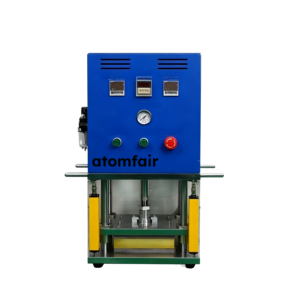

ATOMFAIR® HPF629 HOT PRESS FORMING MACHINE

RESEARCH GRADE MATERIAL

Product Overview

The Atomfair‑HPF629 is a high-precision hot flat pressing and shaping platform engineered for treating wound pouch lithium-ion battery stacks. By delivering synchronized thermal downforce, it effectively reduces core elasticity, levels active material boundaries, and flattens the external pouch layout. This process makes bare wound cells significantly easier to insert into protective outer casings, securing ideal stack consistency and maximum validation integrity for advanced battery prototyping lines.

Technical Specifications

PARAMETER	DETAILS
1. Thermal Pressing & Mechanical Profiles
Product Model / Version	Atomfair‑HPF629 / V2.0
Effective Pressing Area Matrix	L200 × W200 mm Flat Platen
Stamping Pressure Range	0–1 Ton (Continuously Adjustable tracking limits)
Process Operation Cycles	Approx. 300–500 cycles/hour throughput capacity
Thermal Heating Elements	High-conductivity heavy copper heating element block array
2. Power & Utility Supply Profile
Total Power Consumption	1 kW
Power Supply Grid	AC 220V / 50Hz
Compressed Air Requirement	0.5–0.7 MPa Stable Pneumatic Feed
3. Facility & Geometric Layout
System Footprint Dimensions	L320 × W320 × H430 mm Benchtop Design
Total Net Weight	60 kg
Manufacturing Rules	Processed under strict ISO 9001 compliance conditions
Alternative Options	Explore our related catalog or custom mechanical dimensions. For urgent technical custom requests or bulk inquiries, please contact our support team.

Key Features & Advantages

Constant Temperature Automatic Loop: Features an intelligent thermal logic controller with built-in automatic hot-press timers to deliver perfectly repeatable pressing profiles.
Continuously Variable Stamping Force: Mechanical downforce can be tuned continuously from 0 up to 1 Ton, accommodating delicate polymeric thin-films and thick multi-layer assemblies.
High-Conductivity Copper Plates: Built with high-purity copper thermal cores to ensure fast heat transfer, uniform surface temperature, and low power inertia.
Compact Flex-Benchtop Architecture: Small exterior frame allows for flexible, fast placement inside restricted pilot workspaces or integrated glovebox lines.
Stable Hardware Safety Network: Outfitted with robust mechanical safeguards, reliable pressure control relief, and simple operator configurations to isolate failure vectors.

APPLICATION SCOPE: Pouch lithium-ion cell leveling, bare wound layer flattening, structural stack thickness equalization, and casing insertion preconditioning.

FACILITY REQUIREMENT: Benchtop workshop bench installation. System Net Weight: 60 kg. Compact footprint requires zero permanent floor mounting anchors.

IMPORTANT NOTICE: This hot press applies linear mechanical forces up to 1 Ton under high-temperature boundaries. Ensure the compressed air grid maintains a constant 0.5–0.7 MPa supply line pressure and verify that active cells are aligned perfectly within the L200×W200 mm effective area before running thermal cycles.
