Dimensional specification table of thick perfluorosulfonic acid proton exchange membranes for hydrogen generators

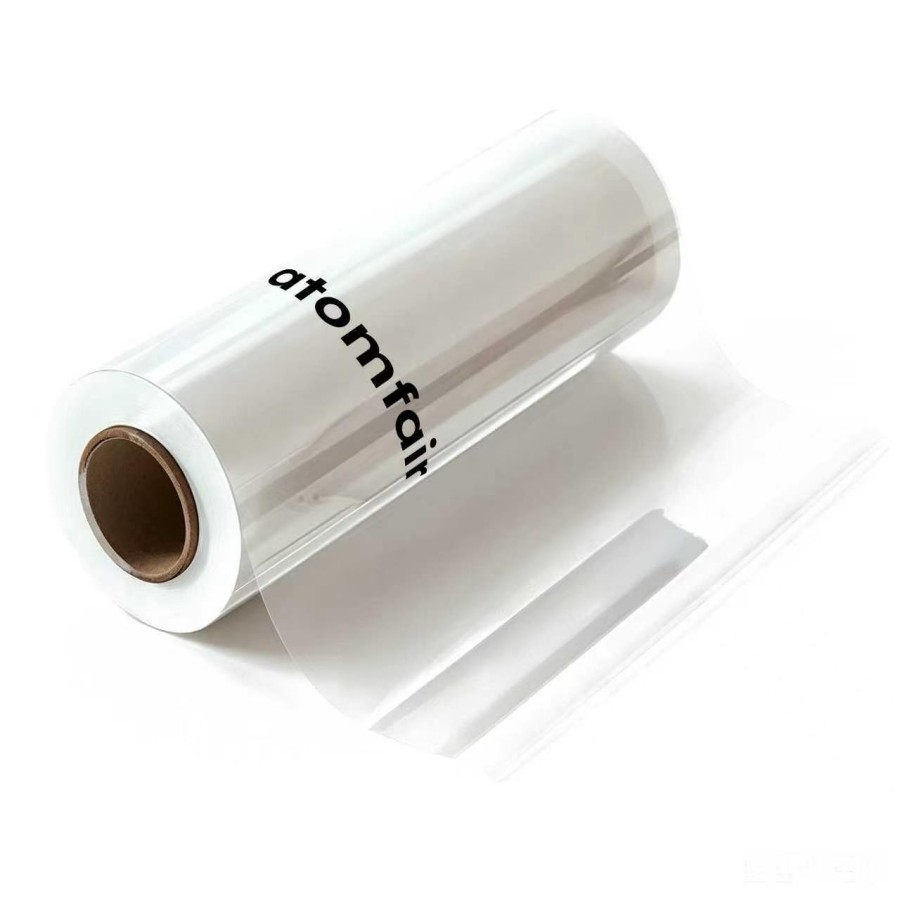

Perfluorosulfonic Acid Water Electrolyzer Membranes

Price range: $430.00 through $600.00
Notice: Price for reference only. Please contact us directly for an updated quote.

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Thick and stable perfluorosulfonic acid proton exchange membranes for water electrolysis. Full 50-175 μm thickness spectrum with high proton conductivity.

Category:
Tags:
Brands:

Description

PERFLUOROSULFONIC ACID ELECTROLYZER MEMBRANES

RESEARCH GRADE MATERIAL

Product Overview
This premium series of functional ion-exchange resins represents an advanced 50 μm to 175 μm electrolyzer substrate array fabricated into a durable layered perfluorosulfonic acid membrane structure. Specially optimized to increase water electrolysis hydrogen production efficiency, these robust polymer electrolyte sheets deliver excellent thermal stability and reliable mechanical parameters under harsh structural strain. Resistant to intense caustic agents, heavy acids, and severe oxidizers, this versatile membrane family provides exceptional proton conductivity retention and controlled swelling margins for long-term industrial stack sealing operations.

Technical Specifications
PARAMETER ELE-H175 ELE-H120 ELE-H080 ELE-H050
Thickness (μm) 175 ± 10 120 ± 10 80 ± 4 50 ± 3
Tensile Strength
(TD/MD) (MPa)		 ≥ 25 / 25 ≥ 28 / 28 ≥ 30 / 30 ≥ 30 / 30
Elongation at Break
(TD/MD) (%)		 ≥ 200 / 200 ≥ 200 / 200 ≥ 250 / 250 ≥ 250 / 250
Young’s Modulus
(TD/MD) (MPa)		 ≥ 180 / 180 ≥ 200 / 200 ≥ 200 / 200 ≥ 200 / 200
Dimensional Change
(TD / MD / Thickness) (%)		 ≤ 25 / 25 / 25 ≤ 25 / 25 / 25 ≤ 15 / 15 / 45 ≤ 15 / 15 / 40
Proton Conductivity (mS/cm) ≥ 140 ≥ 140 ≥ 140 ≥ 140
Alternative Options Pricing listed is calculated per square meter. For alternative roll parameters, precise pre-cut sheet dimensions, or technical lab testing quotes, please contact us.

Key Features & Advantages
  • Outstanding Proton Transfer Transport: Achieves a stable ionic benchmark of ≥ 140 mS/cm across all membrane variants, keeping gas production stacks highly efficient.
  • Full-Spectrum Structural Span: Covers a diverse thickness assortment ranging from 50 to 175 μm to reliably fit different voltage levels or custom research pressures.
  • High Dimensional Swelling Prevention: Delivers precise, restricted dimensional alteration parameters following hydration to protect stack perimeter seal structures.

APPLICATION SCOPE: Engineered specifically for high-capacity proton exchange membrane (PEM) water electrolysis systems, hydrogen generation rigs, and experimental gas production stacks.
PACKAGING: Hermetically vacuum-sealed inside climate-stabilized cleanroom zones utilizing custom moisture-barrier materials and sequential protective facing film interlayers.
IMPORTANT NOTICE: To guarantee absolute protection against localized membrane deformation, prevent any extended ambient drying exposure. Unsealed products should be kept inside vacuum-locked environmental storage compartments and operated strictly by qualified lab staff.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official quotations.
EMAIL: INQUIRY@ATOMFAIR.COM
Manufacturer: ATOMFAIR LLC

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).

Additional information

Model

ELE-H175, ELE-H120, ELE-H080, ELE-H050
