NEPEM N-113 Proton Exchange Membrane 75μm VRFB Grade

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

NEPEM N-113 proton exchange membrane for vanadium flow battery: 75μm, 148 g/m², ≥0.100 S/cm, acid capacity 1.00 meq/g. Improved vanadium resistance. Order now.

SKU: AFMSSXWZ832
Category:
Brands:

Description

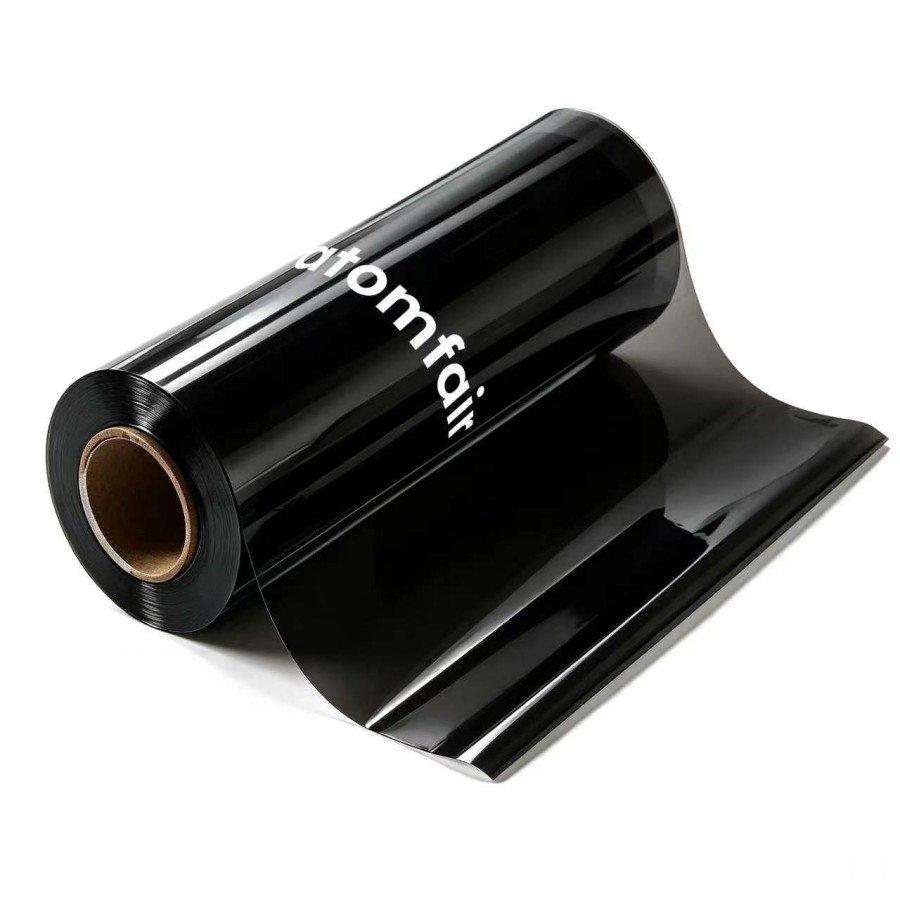

ATOMFAIR® VRFB ION EXCHANGE MEMBRANE TAPE CASTING SHEET

RESEARCH GRADE MATERIAL

Product Overview
Engineered through an advanced tape-casting process, this commercial-grade proton exchange membrane delivers exceptional cell-to-cell consistency, improved tensile strength, superior moisture retention, and high vanadium cross-mixing resistance. It functions as an ideal baseline testing control for next-generation Vanadium Redox Flow Battery (VRFB) stacks, eliminating variables across continuous verification platforms. Laboratories can leverage our secure tape casting ion exchange membrane price mapping to scale electrochemical storage architectures with uncompromised operational life.

Technical Specifications

PARAMETER DETAILS
1. Core Device & Electrochemical Design
Thickness (μm) 75
Weight (g/m²) 148
2. Mechanical & Physical Properties (23°C, 50% RH)
Tensile Strength (MPa) ≥ 30
Elastic Modulus (MPa) ≥ 400
Elongation at Break (%) ≥ 120
Specific Gravity 1.97
3. Electrochemical Performance Metrics
Conductivity (S/cm, 23°C, 100% RH) ≥ 0.100
Normal Conductivity (S/cm, 25°C in 3M H2SO4) ≥ 0.04
Acid Capacity (meq/g) 1.00 ± 0.05
4. Hydrolytic & Dimensional Properties
Water Content (%) 5.0 ± 3.0
Water Uptake (%) 50.0 ± 5.0
Thickness Swelling (23°C / 100°C Water) ≤ 5% at 23°C | ≤ 15% at 100°C
Linear Expansion (23°C / 100°C Water) ≤ 5% at 23°C | ≤ 18% at 100°C
Manufacturing Rules Processed under strict ISO standard manufacturing compliance conditions
Alternative Options Explore our related catalog or custom dimensions. For urgent technical custom requests or bulk inquiries, please contact our support team.


Key Features & Advantages
  • Homogeneous Material Purity: Features an uncompromised structural configuration with highly uniform elemental distribution across the matrix.
  • Enhanced Operational Efficiency: Specifically engineered to demonstrate superior electrochemical performance, significantly boosting transfer kinetics at targeted bands.
  • Optimized Sintering/Microstructure: Advanced synthesis allows for lower required operating temperatures and ideal grain boundary integration during cell fabrication.

APPLICATION SCOPE: Vanadium redox flow battery (VRFB) architectures, energy storage stack R&D, and high-acid electrochemical cells.
PACKAGING: Precision-rolled protective vacuum membrane cylinders or custom die-cut sheets.
IMPORTANT NOTICE: This product is highly sensitive to ambient exposure. Keep containers tightly sealed or handle exclusively within an anhydrous inert gas environment to prevent phase contamination or degradation before thermal validation.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: INQUIRY@ATOMFAIR.COM
MANUFACTURER: ATOMFAIR LLC

This membrane is sensitive to moisture and temperature variations that affect dimensional stability and proton conductivity. Proper storage and handling are required to maintain its mechanical integrity and performance in vanadium redox flow battery environments.

  • Moisture sensitivity: Maintain the membrane's water content between 2% and 8% to avoid dimensional changes from drying or over-hydration.
  • Thermal expansion: Avoid prolonged exposure to temperatures above 100°C to keep thickness swelling below 15% and linear expansion below 18%.
  • Chemical compatibility: The membrane is designed for use in acidic environments such as 3M H2SO4; verify compatibility with other electrolytes.
  • Mechanical integrity: Do not subject the membrane to tensile stresses exceeding 30 MPa or strains beyond 120% elongation at break to prevent rupture.
  • Pre-conditioning: Hydrate the membrane to achieve a water uptake of 45–55% before installation to ensure optimal proton conductivity.

How does the water uptake of 50% affect the NEPEM N-113 membrane's conductivity and dimensional stability in a vanadium flow battery?

The water uptake of 50.0±5.0% enables high proton conductivity (≥0.100 S/cm at 23°C, 100%RH) by facilitating hydrated proton transport, but is balanced by controlled thickness swelling (≤5% at 23°C and ≤15% at 100°C) to maintain mechanical integrity within the cell stack. This trade-off ensures sufficient ionic conduction without excessive deformation that could cause leakage or short circuits.

How does the NEPEM N-113 membrane's vanadium resistance prevent capacity fading in vanadium redox flow batteries?

The membrane incorporates special tape-casting materials that provide enhanced vanadium resistance, minimizing crossover of vanadium ions between the positive and negative electrolytes. This reduces self-discharge and capacity decay over cycling, directly addressing the primary failure mode of vanadium redox flow batteries without requiring additional barrier layers.

What environmental conditions are required during handling and storage to preserve the NEPEM N-113's dimensional stability and proton conductivity?

Store and handle the membrane at 23°C and 50%RH to maintain its water content of 5.0±3.0% and prevent excessive drying or swelling. Departure from these conditions risks thickness swelling beyond the specified ≤5% at 23°C and reduction in tensile strength (≥30 MPa) or elastic modulus (≥400 MPa), compromising both dimensional and ionic performance.

The NEPEM N-113 membrane offers enhanced mechanical strength and vanadium resistance for vanadium flow batteries, with tensile strength ≥30 MPa and conductivity ≥0.100 S/cm. However, its dimensional stability at elevated temperatures (≤15% thickness swelling and ≤18% linear expansion at 100°C water) requires careful thermal management in stack assembly.

Positive

  • High mechanical strength and modulus: Tensile strength ≥30 MPa and elastic modulus ≥400 MPa provide robust mechanical integrity for stack assembly and long-term operation.
  • Optimized vanadium resistance and conductivity: Special tape casting materials impart improved vanadium resistance, while conductivity ≥0.100 S/cm (23°C, 100%RH) supports efficient ion transport in VRFB cells.

Trade-offs

  • Significant thickness swelling at 100°C: Thickness swelling in water at 100°C is ≤15%, which may cause mechanical stress and interface degradation in high-temperature stack operation.
  • High linear expansion in hot water: Linear expansion at 100°C water is ≤18%, necessitating careful gasket design and thermal cycling tolerance to maintain seal integrity.
