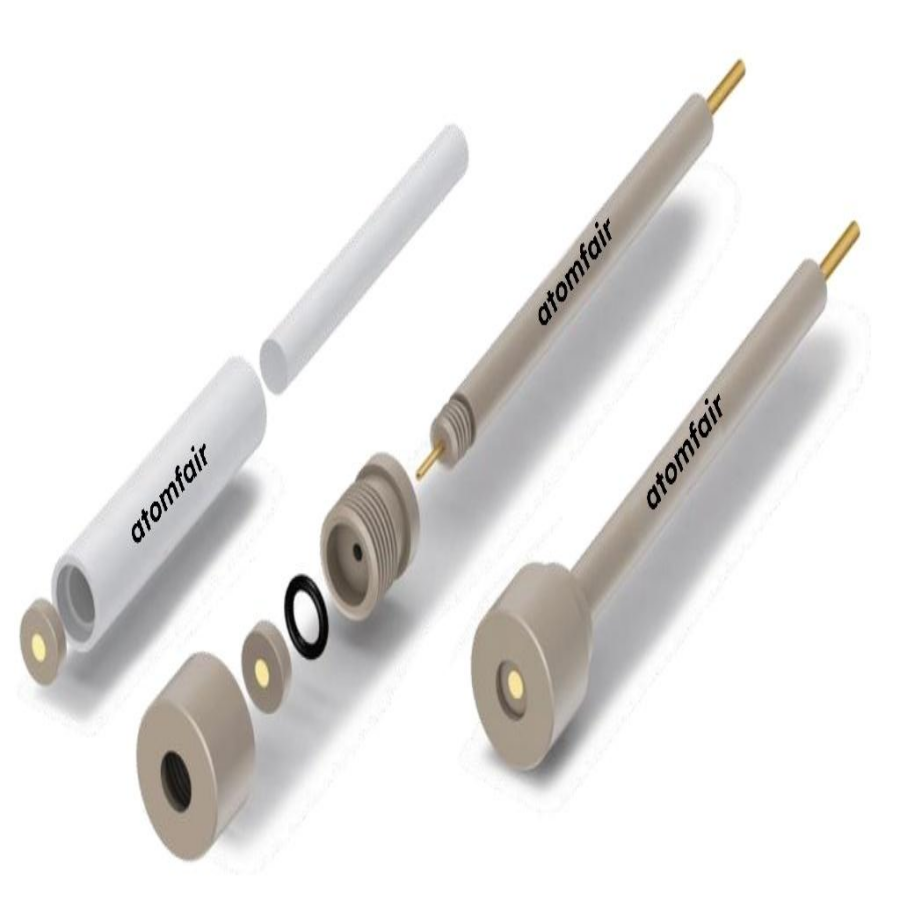

ATOMFAIR® atomfair multifunctional combination isotropic carbon graphite working electrodes showing disassembled modular components and O-ring seals.

Multifunctional Combination Isotropic Carbon Graphite Graphite Working Electrode Series | ATOMFAIR

$133.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Multifunctional Combination Isotropic Carbon Graphite Graphite Working Electrode Series | ATOMFAIR RESEARCH GRADE INSTRUMENT Product Overview The ATOMFAIR® Multifunctional Combination Isotropic Carbon Graphite Working Electrode features a high-performance isotropic carbon graphite disk as the active sensing surface, offering homogeneous properties in all directions, low porosity, and consistent electrochemical performance for demanding applications. The electrode incorporates an embedded disk design with diameters available from 2mm to 4mm, accommodating diverse experimental scales from micro-electrode sensing to macro-electrode bulk electrolysis. The electrode head thickness is less than 4mm, enabling use as a standard working electrode for conventional electrochemical measurements as well as direct…

Category: ,
Tags: , , ,
Brands:

Description

Multifunctional Combination Isotropic Carbon Graphite Graphite Working Electrode Series | ATOMFAIR

RESEARCH GRADE INSTRUMENT

Product Overview
The ATOMFAIR® Multifunctional Combination Isotropic Carbon Graphite Working Electrode features a high-performance isotropic carbon graphite disk as the active sensing surface, offering homogeneous properties in all directions, low porosity, and consistent electrochemical performance for demanding applications. The electrode incorporates an embedded disk design with diameters available from 2mm to 4mm, accommodating diverse experimental scales from micro-electrode sensing to macro-electrode bulk electrolysis. The electrode head thickness is less than 4mm, enabling use as a standard working electrode for conventional electrochemical measurements as well as direct integration with scanning electron microscopy (SEM) or atomic force microscopy (AFM) systems. This dual-purpose design bridges bulk electrochemistry and high-resolution surface characterization, allowing researchers to correlate electrochemical performance with structural and topographical features on the identical electrode surface.

Technical Specifications

PARAMETER DETAILS
1. Core Device & Electrochemical Design
Electrode Geometry Low-profile cylindrical configuration
Electrode Head Thickness Less than 4mm
Compatible Techniques Conventional electrochemistry, SEM, AFM
2. Electrode Material Portfolio Parameters
Material Isotropic Carbon
Diameter Options 2~4mm

Key Features & Advantages

  • Correlative Electrochemical-Microscopic Analysis: Enables direct structural and topographical correlation with electrochemical data from the identical electrode location without sample transfer.

  • Specialized Isotropic Carbon Graphite Material: Constructed from high-grade isotropic carbon, providing a wide potential window, low background current, and specific electrochemical characteristics suitable for diverse redox systems and sensor applications.

  • Robust Corrosion Protection: Gold-plated copper rod (1.5x15mm) delivers enhanced oxidation resistance and maintains stable conductivity over extended use.

  • Flexible Diameter Selection: Available in 2mm to 4mm diameter range, accommodating various experimental requirements and allowing researchers to select the optimal size for their specific application.
APPLICATION SCOPE: Healthcare, Environmental Monitoring, Chemical Engineering, Bio-industry, and Advanced Energy Systems.
PACKAGING: Secure individual research-grade protective containers with shock-absorption parameters.
IMPORTANT NOTICE: This product is highly sensitive to surface contamination. Keep containers tightly sealed or handle exclusively within an anhydrous inert environment to prevent phase contamination or degradation before electrochemical validation.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).
