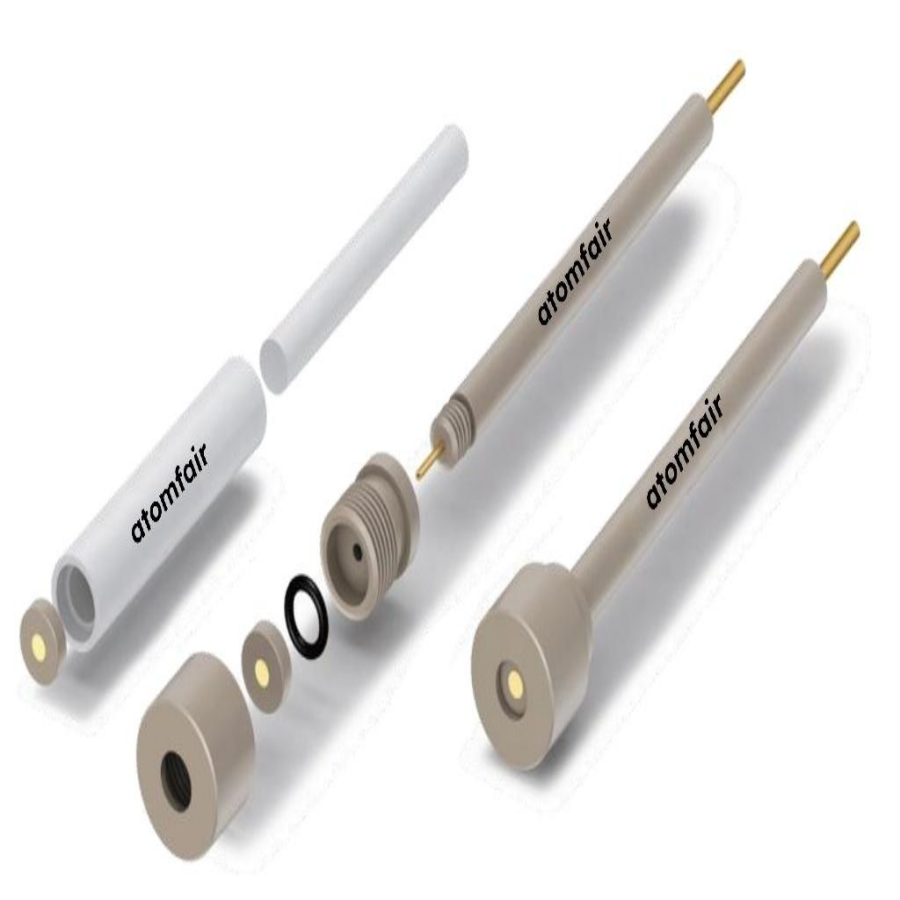

ATOMFAIR® atomfair multifunctional combination gold disk working electrodes showing disassembled modular components and O-ring seals.

Multifunctional Combination Gold Disk Working Electrode Series | ATOMFAIR

Price range: $120.00 through $1,125.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Multifunctional Combination Gold Disk Working Electrode Series | ATOMFAIR RESEARCH GRADE INSTRUMENT Product Overview The ATOMFAIR® Magnetic Gold Disk Working Electrode integrates a high-performance gold disk as the active sensing surface, offering excellent biocompatibility, inertness, and superior surface chemistry for self-assembled monolayer formation in demanding electrochemical applications. The electrode utilizes an integrated magnetic base design for rapid attachment and stable electrical contact on ferromagnetic cell supports or electrode stands. The electrode body is manufactured from PTFE or PEEK, providing outstanding chemical resistance and electrical insulation. A gold-plated copper rod serves as the conductive medium, ensuring low contact resistance and superior…

Category: ,
Tags: , , ,
Brands:

Description

Multifunctional Combination Gold Disk Working Electrode Series | ATOMFAIR

RESEARCH GRADE INSTRUMENT

Product Overview
The ATOMFAIR® Magnetic Gold Disk Working Electrode integrates a high-performance gold disk as the active sensing surface, offering excellent biocompatibility, inertness, and superior surface chemistry for self-assembled monolayer formation in demanding electrochemical applications. The electrode utilizes an integrated magnetic base design for rapid attachment and stable electrical contact on ferromagnetic cell supports or electrode stands. The electrode body is manufactured from PTFE or PEEK, providing outstanding chemical resistance and electrical insulation. A gold-plated copper rod serves as the conductive medium, ensuring low contact resistance and superior corrosion protection. This design eliminates the need for mechanical clamping or threaded connections, enabling quick electrode exchange, surface polishing, and repositioning during experiments. Available in a comprehensive range of disk diameters—including 0.5mm, 1mm, 2mm, 3mm, 4mm, 5mm, and 6mm—this electrode series accommodates diverse experimental scales, from micro-electrode sensing to macro-electrode bulk electrolysis.

Technical Specifications

PARAMETER DETAILS
1. Core Device & Electrochemical Design
Electrode Geometry Low-profile cylindrical configuration
Electrode Head Thickness Less than 4mm
Compatible Techniques Conventional electrochemistry, SEM, AFM
2. Electrode Material Portfolio Parameters
Material Gold
Diameter Options 0.5mm, 1mm, 2mm, 3mm, 4mm, 5mm, 6mm


Key Features & Advantages

  • Correlative Electrochemical-Microscopic Analysis: Enables direct structural and topographical correlation with electrochemical data from the identical electrode location without sample transfer.

  • Ultra-High Purity Gold Material (99.999%): Constructed from premium-grade gold with exceptional elemental purity, ensuring minimal background interference, superior corrosion resistance, and highly reproducible electrochemical responses across all experiments.

  • Superior Electrochemical Performance: Exhibits excellent electron transfer kinetics with a wide anodic potential window, making it ideal for bio-sensing, thiol-based self-assembled monolayer studies, and various redox systems.

  • Versatile Diameter Selection: Available in 7 different sizes from 0.5mm to 6mm, accommodating various experimental requirements from micro-electrolysis to bulk solution analysis, with the 0.5mm option ideal for microelectrode applications.
APPLICATION SCOPE: Healthcare, Environmental Monitoring, Chemical Engineering, Bio-industry, and Advanced Energy Systems.
PACKAGING: Secure individual research-grade protective containers with shock-absorption parameters.
IMPORTANT NOTICE: This product is highly sensitive to surface contamination. Keep containers tightly sealed or handle exclusively within an anhydrous inert environment to prevent phase contamination or degradation before electrochemical validation.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).

Additional information

Diameter

0.5mm, 1mm, 2mm, 3mm, 4mm, 5mm, 6mm
