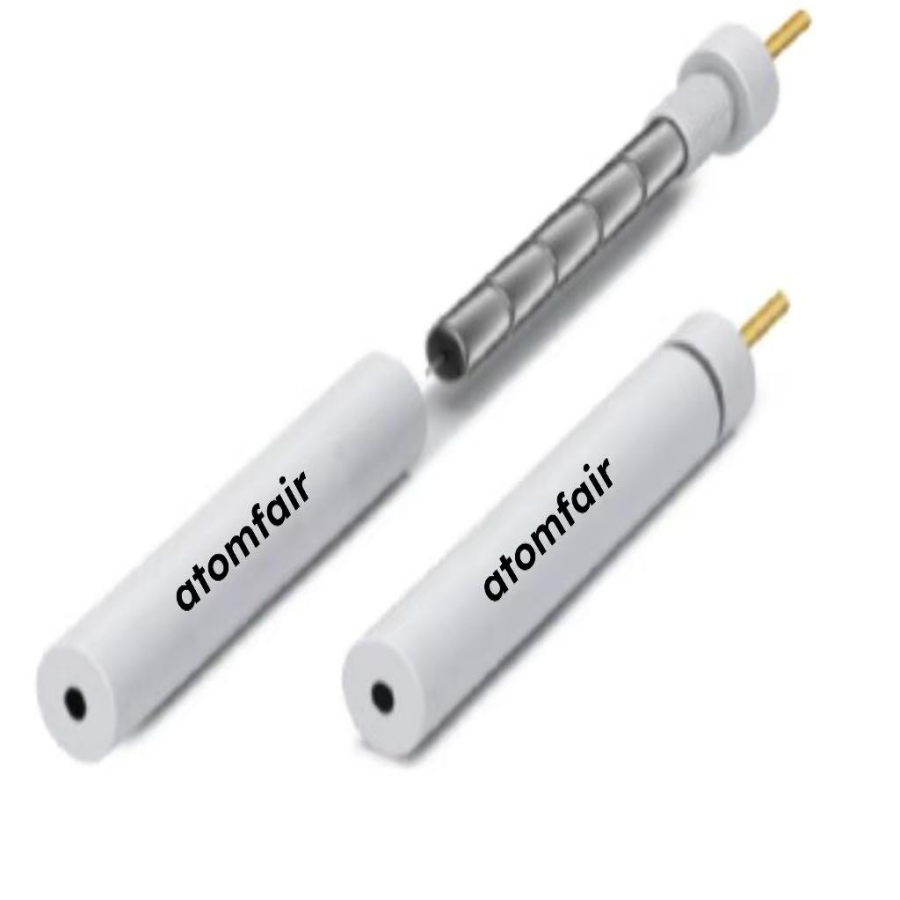

ATOMFAIR® atomfair magnetic graphite working electrodes showing internal metallic segmented core and pin connections.

Magnetic Graphite Working Electrode Series | ATOMFAIR

$122.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Magnetic Graphite Working Electrode Series | ATOMFAIR RESEARCH GRADE INSTRUMENT Product Overview The ATOMFAIR® Magnetic Graphite Working Electrode integrates a high-performance graphite disk as the active sensing surface, offering a wide potential window, low background current, and cost-effective performance for routine electroanalysis in demanding electrochemical applications. The electrode utilizes an integrated magnetic base design for rapid attachment and stable electrical contact on ferromagnetic cell supports or electrode stands. The electrode body is manufactured from PTFE or PEEK, providing outstanding chemical resistance and electrical insulation. A gold-plated copper rod serves as the conductive medium, ensuring low contact resistance and superior corrosion…

Category: ,
Tags: , ,
Brands:

Description

Magnetic Graphite Working Electrode Series | ATOMFAIR

RESEARCH GRADE INSTRUMENT

Product Overview
The ATOMFAIR® Magnetic Graphite Working Electrode integrates a high-performance graphite disk as the active sensing surface, offering a wide potential window, low background current, and cost-effective performance for routine electroanalysis in demanding electrochemical applications. The electrode utilizes an integrated magnetic base design for rapid attachment and stable electrical contact on ferromagnetic cell supports or electrode stands. The electrode body is manufactured from PTFE or PEEK, providing outstanding chemical resistance and electrical insulation. A gold-plated copper rod serves as the conductive medium, ensuring low contact resistance and superior corrosion protection. This design eliminates the need for mechanical clamping or threaded connections, enabling quick electrode exchange, surface polishing, and repositioning during experiments. Available in a comprehensive range of disk diameters from 2mm to 6mm, this electrode series accommodates diverse experimental scales, from micro-electrode sensing to macro-electrode bulk electrolysis.

Technical Specifications

PARAMETER DETAILS
1. Core Device & Electrochemical Design
Electrode Geometry Magnetic cylindrical configuration with integrated base
Magnetic Attachment Integrated magnetic contact surface for ferromagnetic supports
Conductive Medium Gold-plated copper rod
Insulative Body Material PTFE or PEEK
2. Electrode Material Portfolio Parameters
Material Graphite
Diameter Options 2~6mm


Key Features & Advantages

  • Rapid Electrode Mounting: Magnetic attachment allows instant placement and removal without tools or clamping fixtures, significantly reducing setup time.

  • Consistent Electrical Contact: The magnetic force ensures stable, reproducible electrical connection between the electrode and the supporting structure.

  • Specialized Graphite Material: Constructed from high-grade graphite, providing a wide potential window, low background current, and specific electrochemical characteristics suitable for diverse redox systems and sensor applications.

  • Robust Corrosion Protection: Gold-plated copper rod (1.5x15mm) delivers enhanced oxidation resistance and maintains stable conductivity over extended use.

  • Flexible Diameter Selection: Available in 2mm to 6mm diameter range, accommodating various experimental requirements and allowing researchers to select the optimal size for their specific application.
APPLICATION SCOPE: Healthcare, Environmental Monitoring, Chemical Engineering, Bio-industry, and Advanced Energy Systems.
PACKAGING: Secure individual research-grade protective containers with shock-absorption parameters.
IMPORTANT NOTICE: This product is highly sensitive to surface contamination. Keep containers tightly sealed or handle exclusively within an anhydrous inert environment to prevent phase contamination or degradation before electrochemical validation.
