ITO-PET CONDUCTIVE FILM 5 OHM 100×300MM FLEXIBLE TRANSPARENT ELECTRODE

RESEARCH GRADE MATERIAL

Product Overview

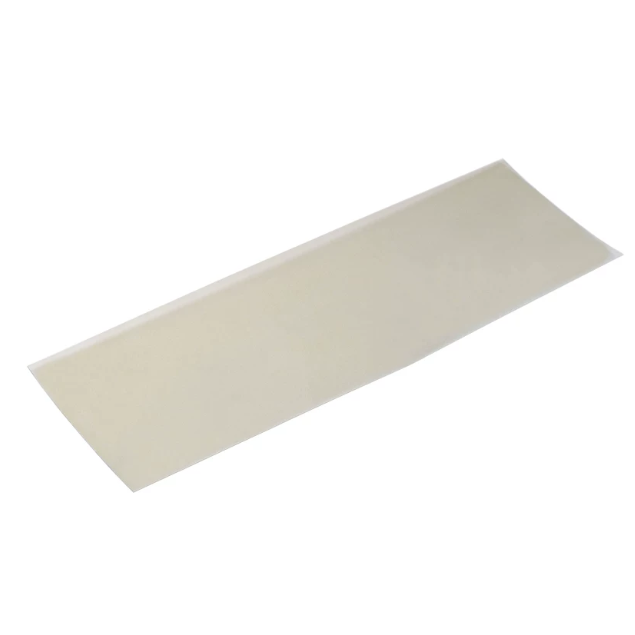

This ITO-PET Conductive Film is a laboratory-grade flexible transparent electrode manufactured by depositing an indium tin oxide conductive layer onto a PET transparent film substrate via 5 Ohm magnetron sputtered 0.125mm coating technology, followed by high-temperature annealing treatment. The product delivers a sheet resistance of 5 Ω/sq with haze ≤3%, 100% coating adhesion, and curl ≤10 mm, making it an excellent flexible transparent electrode substrate for bendable optoelectronic devices, wearable sensors, and roll-to-roll printed electronics research. The film demonstrates outstanding thermal stability, with performance variation ≤1.3 after both 120-minute 80°C constant-temperature baking and -40°C low-temperature freezing, and is fully -40°C to 80°C thermal cycling stable. Available in three thickness specifications—0.05 mm, 0.125 mm, and 0.175 mm—with a standard sheet size of 100 × 300 mm.

Technical Specifications

PARAMETER	DETAILS
Product Name	ITO-PET Conductive Film
Product Type	Laboratory Consumable
Manufacturing Process	Magnetron Sputtering + High-Temperature Annealing
Sheet Dimensions	100 × 300 mm
Available Thickness	0.05 mm / 0.125 mm / 0.175 mm
Square Resistance	5 Ω/sq
Haze	≤3%
Coating Adhesion	100%
Curl	≤10 mm
Thermal Stability (80°C Baking 120 min)	Performance Variation ≤1.3
Thermal Stability (-40°C Freezing 120 min)	Performance Variation ≤1.3
Thermal Cycling Range	-40°C to 80°C
Custom Configurations	Other thickness specifications and sheet dimensions are available upon request. Please contact us via email for custom orders.

Key Features & Advantages

Broad Thermal Cycling Stability from -40°C to 80°C: The annealed ITO-PET film maintains performance variation ≤1.3 after both 120-minute 80°C baking and -40°C freezing, enabling reliable operation in experiments requiring alternating thermal environments without delamination or resistance drift.
Exceptional Optical Quality with Low Haze: Haze ≤3% combined with 100% coating adhesion ensures minimal light scattering and zero coating delamination, critical for precision optical transmission measurements and transparent device architectures where interface clarity directly impacts performance.
Three Thickness Options for Mechanical Flexibility Tuning: Available in 0.05 mm, 0.125 mm, and 0.175 mm thicknesses, allowing researchers to balance substrate flexibility against handling robustness for specific experimental configurations from ultra-flexible wearable sensors to self-supporting electrode platforms.
Magnetron Sputtered with Post-Annealing Treatment: The magnetron sputtering deposition followed by high-temperature annealing produces a dense, uniform ITO coating with stable 5 Ω/sq conductivity across the full 100 × 300 mm sheet area, ensuring consistent electrode performance in multi-sample experimental designs.

APPLICATION SCOPE: Flexible transparent electrode for bendable organic light-emitting diodes and polymer solar cells. Transparent conductive substrate for flexible perovskite photovoltaic research. Electrode platform for wearable electrochemical sensors and biosensors. Transparent heater element for defogging and de-icing research. Electromagnetic interference shielding layer for flexible electronic devices. Touch panel and flexible display prototype development. The ITO-PET film’s combination of optical transparency, electrical conductivity, and mechanical flexibility makes it suitable for any research application requiring a bendable transparent electrode where rigid glass substrates are impractical.

PACKAGING: Each ITO-PET conductive film sheet measures 100 × 300 mm and is available in three thickness specifications: 0.05 mm, 0.125 mm, and 0.175 mm. The conductive side is protected by a removable cover film to prevent surface contamination and scratches during transit and storage. Sheets are packed flat between rigid backing boards in a protective envelope. Custom sheet dimensions and thickness specifications are available upon request. For bulk quantities or tailored configurations, please contact us via email.

IMPORTANT NOTICE: As a general performance relationship: with consistent substrate and manufacturing process parameters, increasing ITO coating thickness reduces surface resistance but correspondingly decreases optical transmittance. Select the appropriate thickness specification based on your application’s balance between conductivity and transparency requirements. Handle the film by edges only; avoid touching the ITO-coated surface. The removable protective cover film should be peeled immediately prior to use to minimize particulate contamination. For long-term storage, keep in a dry, dust-free environment at room temperature. Avoid folding or creasing the film to preserve coating integrity. For detailed usage and handling protocols, consult the user guidelines provided with the shipment.
