Description

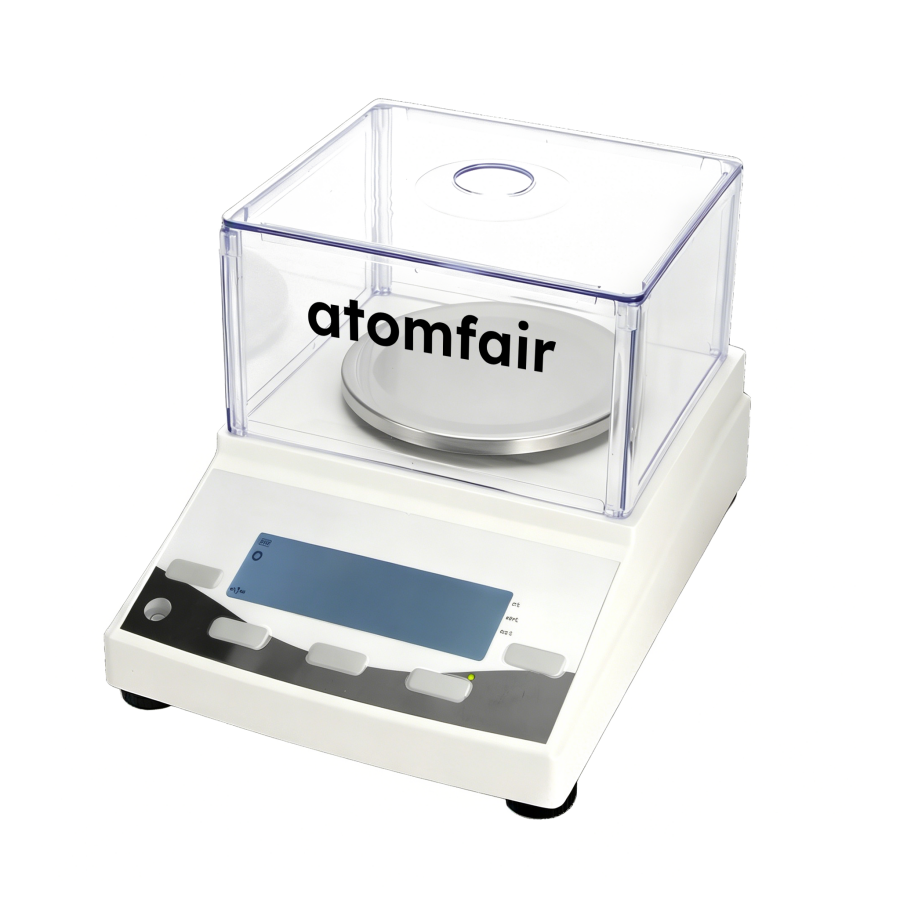

ATOMFAIR® EB200G-0.001G-01 HIGH-PRECISION ELECTRONIC BALANCELABORATORY GRADE METROLOGY INTERFACE
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
This electronic balance requires a stable environment free from HVAC airflow and thermal gradients to ensure milligram-level accuracy. The integrated draft shield must be fully sealed during all measurements to prevent parasitic airflow from corrupting readings.
- Draft shield sealing requirement: Always fully seal the draft shield before initiating any data streaming to block airflow interference.
- Environmental placement restriction: Position the balance away from HVAC outlets and heat sources to avoid thermal drift and air currents.
How does the ±2 mg linearity error of the EB200G-0.001G-01 balance affect its suitability for quantitative validation compared to its ±1 mg repeatability?
The linearity error of ±2 mg defines the maximum deviation across the full 200 g capacity, representing absolute accuracy, while the ±1 mg repeatability ensures measurement consistency at a single point. For quantitative validation tasks, the balance is well-suited when the allowable tolerance is at least ±2 mg, as specified in the product's metrology parameters. Both specs are critical under ISO metrological standards for research and quality inspection workflows.
Does the EB200G-0.001G-01 balance support modern data logging via its RS232 port without additional converters?
The balance features a standard integrated RS232 serial port for direct data output to legacy laboratory instruments. For modern systems that lack RS232 ports, an external RS232-to-USB converter is typically required. Its dual-source power protocol (AC/DC matrix compatible) ensures flexible integration into various laboratory power infrastructures.
What specific installation conditions are required to prevent airflow interference during milligram-level measurements with the EB200G-0.001G-01?
The integrated draft shield must be fully sealed before any data streaming to block parasitic airflow. The balance must also be positioned away from HVAC outlets and thermal generation vectors, as stated in the operational notice, to maintain milligram-grade accuracy. The Φ130 mm stabilization platform should be placed on a vibration-free surface in a controlled environment.
The EB200G-0.001G-01 delivers 1 mg readability with ±1 mg repeatability and ±2 mg linearity, supported by an internal calibration matrix and integrated draft shield for micro-analytical weighing in controlled environments.
Positive
- Milligram-grade repeatability and linearity: With ±1 mg repeatability and ±2 mg linearity error, this balance ensures excellent data consistency for micro-analytical weighing and baseline quantitative validation in research and quality inspection.
- Integrated draft shield for airflow isolation: The standardized draft shield assembly safeguards milligram readings against parasitic airflow variables, critical for maintaining validation integrity in laboratory environments.
Trade-offs
- Sensitive to environmental airflow: The draft shield must be fully sealed prior to data streaming, and the balance must be located away from HVAC outlets or thermal generation vectors to avoid compromising milligram-level accuracy.
- Requires controlled laboratory conditions: Optimal performance depends on a controlled environment; ambient disturbances such as air currents or temperature gradients can degrade reproducibility and linearity specifications.
Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.
To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.
Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).
