Description
ATOMFAIR® EB210G-0.1MG-01 ELECTRONIC ANALYTICAL BALANCEEB220G-0.1MG-I-02 CORE SPECIFICATION PLATFORM
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
TAILORED INDUSTRIAL LAB SOLUTIONS
Contact our elite laboratory engineering team for institutional bulk procurement quotes or interface custom integration.
EMAIL: INQUIRY@ATOMFAIR.COM
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
MANUFACTURER OPERATIONS: ATOMFAIR LLC INSTRUMENTS DIVISION
REGISTERED BRAND: ATOMFAIR®
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
This document specifies the mandatory environmental and operational parameters that must be maintained to achieve the instrument's specified measurement performance. Adherence to these constraints ensures repeatability and linearity within the stated tolerances.
- Operating Temperature and Humidity: Maintain ambient temperature between 18°C and 23°C and relative humidity between 20% and 80% to prevent measurement drift and ensure linearity.
- Preheating Period: Allow a 30 to 60 minute warm-up period after power-on before performing any zeroing, calibration, or sample measurement.
- Automatic Calibration Triggers: The balance autonomously recalibrates when the ambient temperature changes by more than 1.5°C or when two hours have elapsed since the last calibration.
- Stabilization Wait Time: Wait for the reading to stabilize within 2.5 seconds after sample placement before recording the mass value.
- Power Supply Requirements: Connect the balance to a 220V AC/50Hz mains supply through the provided 12V DC/2A adapter to ensure stable electrical operation.
This procedure guides the user through the essential steps to prepare the balance for accurate weighing after power-on. Following these steps ensures the instrument meets its specified performance criteria.
Required Equipment:
- Power On and Warm Up
Switch on the balance and allow a mandatory warm-up period of 30 to 60 minutes before any operation. - Perform Zeroing
Press the tare button to zero the balance with the draft shield closed and no sample on the pan. - Load Sample and Record Mass
Gently place the sample on the pan, wait for the stabilization indicator, and record the mass after the reading stabilizes within 2.5 seconds.
How does the 0.1 mg readability of the EB210G-0.1MG-01 balance compare to the 0.01 mg readability of semi-micro balances for applications requiring high precision at low sample masses?
The EB210G-0.1MG-01 offers 0.1 mg readability with ±0.1 mg repeatability and ±0.2 mg linearity, whereas semi-micro balances in the B Series provide 0.01 mg readability with ±0.02 mg repeatability and ±0.02 mg linearity. For samples requiring precision below 0.1 mg, a semi-micro balance is necessary, but the EB210G-0.1MG-01 provides a higher maximum capacity of 210 g and a stabilization time of ≤2.5 seconds.
Can the EB210G-0.1MG-01 be connected to a laboratory information management system (LIMS) or external data system without additional hardware?
Yes, the balance includes an integrated bidirectional RS232 communication bus that establishes standard hardware pipelines to micro-printers, lab host computer terminals, and third-party LIMS management systems. No additional interface hardware is required for RS232 connectivity.
What are the critical warm-up and environmental requirements to achieve specified accuracy with the EB210G-0.1MG-01?
The balance requires a mandatory preheating threshold of 30 to 60 minutes following power-on before performing operational zeroing or sample measurements. The operating environment must be maintained at 18°C to 23°C and 20% to 80% RH. Additionally, the autonomous fully automatic calibration subsystem triggers recalibration if temperature changes exceed 1.5°C or if more than 2 hours have elapsed since the last calibration.

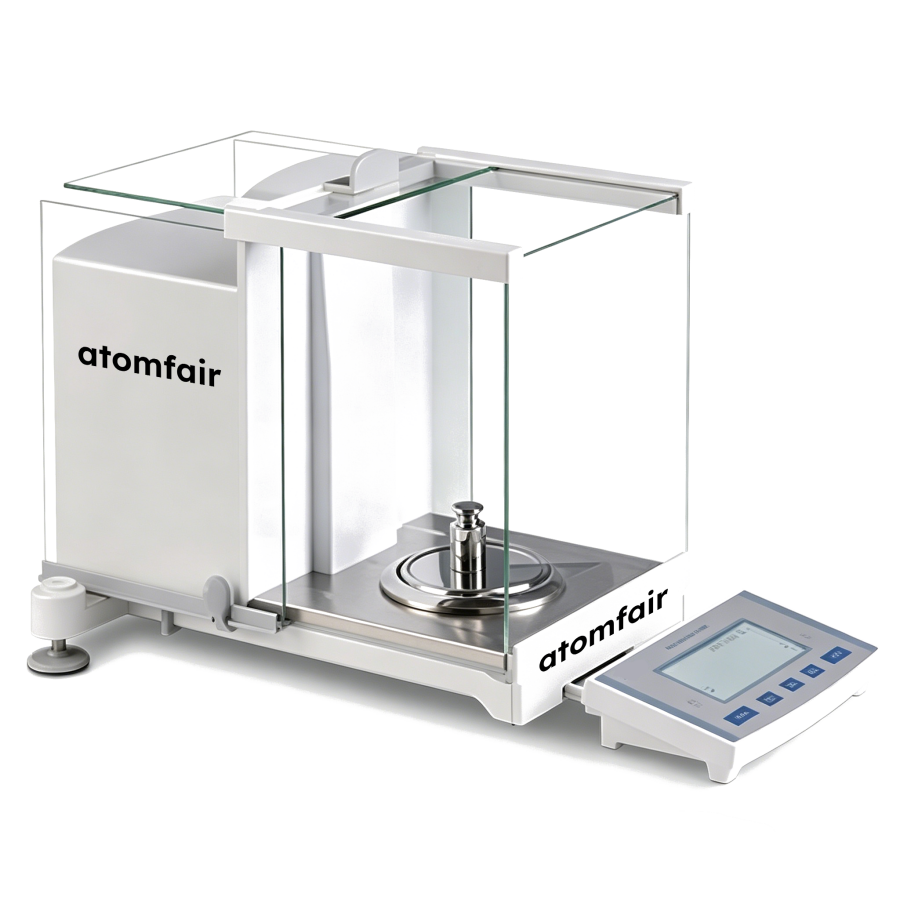

The Atomfair EB210G-0.1MG-01 Electronic Analytical Balance delivers 0.1 mg readability with a 210 g capacity, leveraging an electromagnetic force compensation sensor and a ≤2.5 second stabilization time. Its split-body display and panoramic glass draft shield enhance operational ergonomics and specimen visibility, but the instrument requires a 30–60 minute warm-up and strict environmental control (18–23°C, 20–80% RH) to maintain specified repeatability and linearity.
Positive
- Fast stabilization response time: The balance achieves an average stabilization time of ≤2.5 seconds, enabling rapid mass determination in high-throughput analytical workflows.
- Split-body display reduces vibration errors: The detachable display control architecture isolates mechanical hand operation micro-vibrations from the weighing block, improving measurement accuracy in sensitive applications.
Trade-offs
- Mandatory warm-up period required: The balance requires a 30–60 minute preheating threshold after power-on before operational zeroing or calibration to ensure linearity and resolution stability.
- Narrow environmental operating range: Optimal performance is confined to 18–23°C and 20–80% RH; deviations may degrade repeatability (±0.1 mg) and linearity (±0.2 mg) specifications.
Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.
To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.
Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).
