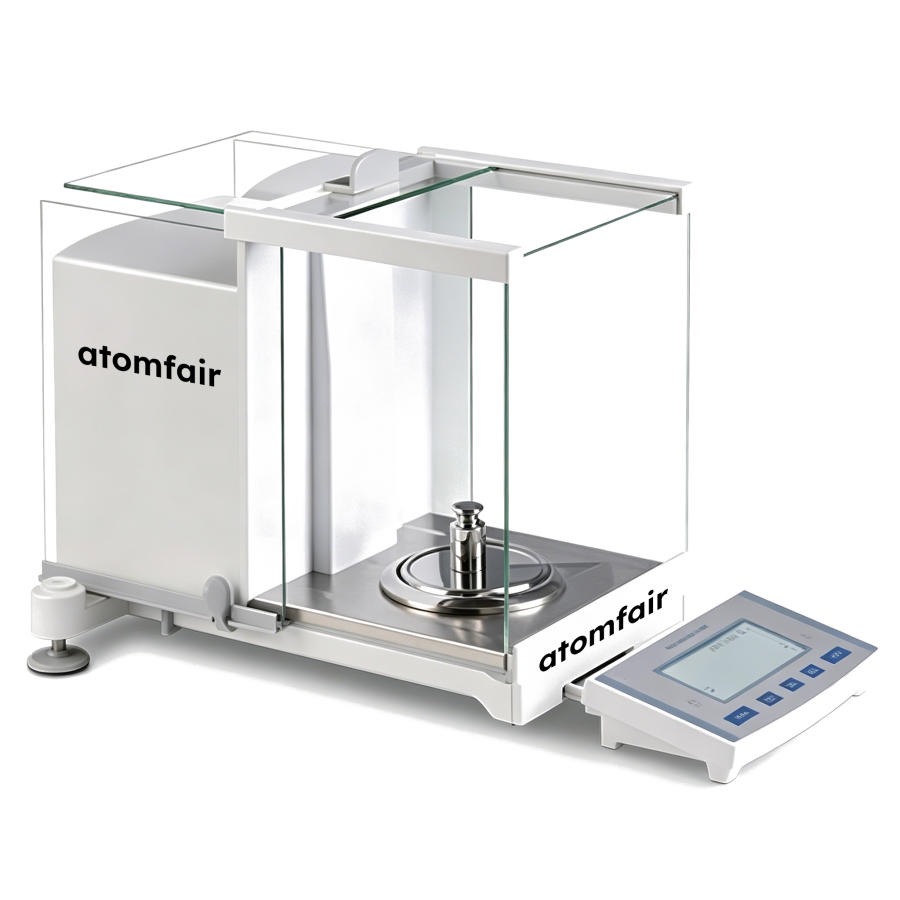

ATOMFAIR® EB82-120G-01MG-R SEMI-MICRO ANALYTICAL BALANCEEB82-120G-01MG-R CORE SPECIFICATION PLATFORM
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
TAILORED INDUSTRIAL LAB SOLUTIONS
Contact our elite laboratory engineering team for institutional bulk procurement quotes or interface custom integration.
EMAIL: INQUIRY@ATOMFAIR.COM
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
MANUFACTURER OPERATIONS: ATOMFAIR LLC INSTRUMENTS DIVISION
REGISTERED BRAND: ATOMFAIR®
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
This balance requires a controlled environment with temperature between 18°C and 23°C and relative humidity between 20% and 80% RH to maintain measurement accuracy. An initial preheating period of 30 to 60 minutes is mandatory after power-on to achieve thermal stabilization before calibration or use.
- Environmental Temperature: The operating temperature must be maintained between 18°C and 23°C to ensure specified performance.
- Humidity Range: Relative humidity in the workspace must be kept between 20% and 80% RH.
- Preheating Requirement: The balance must be powered on and allowed to warm up for 30 to 60 minutes before any calibration or measurement.
- Calibration Weight: An external calibration weight of 10 g is required for routine calibration.
- Automatic Recalibration Trigger: The balance automatically initiates recalibration if the ambient temperature changes by more than 1.5°C or if two hours have elapsed since the last calibration.
Follow these steps to properly initialize the balance and perform external calibration. Ensure the environment meets the required temperature and humidity conditions before starting.
Required Equipment: 10 g external calibration weight
- Power On
Connect the power adapter and press the power button to turn on the balance. - Preheat
Allow the balance to warm up for 30 to 60 minutes to achieve thermal equilibrium. - Verify Environment
Confirm that the ambient temperature is between 18°C and 23°C and humidity is between 20% and 80% RH. - Zero the Balance
Press the tare button with no load on the pan to perform a zeroing operation. - Calibrate
Place the 10 g external calibration weight on the pan and initiate the calibration procedure.
What is the required warm-up time to achieve the specified 0.01 mg readability on the EB82-120G-01MG-R, and how does that affect throughput in high-sample environments?
The balance requires a mandatory preheating period of 30 to 60 minutes following power-on before operational zeroing or calibration, as stated in the core specification. This ensures uncompromised semi-micro resolution linearity, and users must factor this into workflow planning for high-sample-throughput environments.
Can the EB82-120G-01MG-R be connected to a laboratory information management system (LIMS) for automated data logging?
Yes, it features an integrated bidirectional RS232 communication bus that establishes standard hardware pipelines to micro-printers, lab host computer terminals, and third-party LIMS management systems, enabling automated data transfer.
What environmental and infrastructure conditions must be maintained for the automatic calibration subsystem to function correctly on the EB82-120G-01MG-R?
The autonomous automatic calibration subsystem triggers recalibration if local temperature variations exceed 1.5°C or if time elapsed exceeds 2 hours. The balance must be operated within 18°C to 23°C and 20% to 80% RH, with a stable 220V AC/50Hz power supply, to ensure reliable calibration and measurement.
The EB82-120G-01MG-R semi-micro analytical balance combines 0.01 mg readability with 2.5 s stabilization and adaptive automatic calibration, but requires a 30-60 minute warm-up and strict environmental control (18-23°C, 20-80% RH).
Positive
- 0.01 mg readability with 2.5 s stabilization: Achieves 0.01 mg readability and a stabilization response time of 2.5 seconds, enabling rapid and precise trace mass determinations in semi-micro analytical workflows.
- Adaptive automatic calibration for environmental drift: Built-in automatic calibration triggers recalibration upon temperature shifts >1.5°C or after two hours, maintaining measurement accuracy without manual intervention.
Trade-offs
- 30-60 minute warm-up requirement: To preserve semi-micro resolution linearity, the balance requires a 30-60 minute preheating period after power-on before stable zeroing and calibration can be performed, limiting rapid startup.
- Narrow operating temperature and humidity window: Specified for 18-23°C and 20-80% RH, the balance demands a controlled laboratory environment; deviations outside this range risk degraded repeatability and linearity performance.
