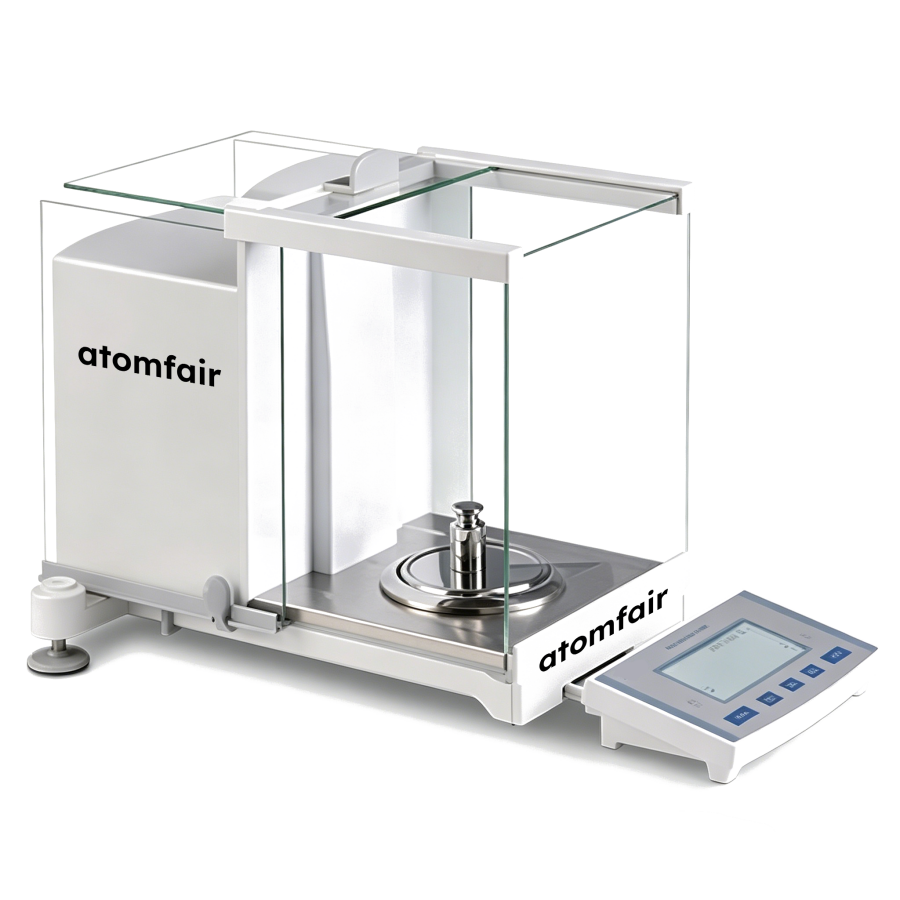

ATOMFAIR® EB51G-01MG-R-02 ANALYTICAL & SEMI-MICRO BALANCEEB51G-01MG-R-02 CORE SPECIFICATION PLATFORM
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
TAILORED INDUSTRIAL LAB SOLUTIONS
Contact our elite laboratory engineering team for institutional bulk procurement quotes or interface custom integration.
EMAIL: INQUIRY@ATOMFAIR.COM
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
MANUFACTURER OPERATIONS: ATOMFAIR LLC INSTRUMENTS DIVISION
REGISTERED BRAND: ATOMFAIR®
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
The balance requires a 30–60 minute warm-up period after power-on before any weighing or calibration operations. The operating environment must be maintained at 10–33°C and 20–80% RH to ensure measurement accuracy.
- Warm-Up Requirement: The balance must be powered on and allowed to stabilize for 30–60 minutes before use.
- Environmental Conditions: The balance should be operated in a temperature range of 10–33°C and humidity of 20–80% RH.
- Automatic Calibration Trigger: Internal automated calibration is executed when ambient temperature changes by ≥1.5°C or after 2 hours of operation.
- Vibration Isolation: The split-body design isolates the weighing cell from hand-induced vibrations to maintain stable readings.
- Draft Shield Protection: The transparent draft shield protects the weighing chamber from air currents and contaminants.
The balance must be warmed up for 30–60 minutes before use. Calibration should be performed after warm-up and periodically during operation.
Required Equipment: Atomfair EB51G-01MG-R-02 Analytical Balance
- Power On
Power on the balance using the supplied power adapter. - Warm-Up
Allow the balance to warm up for 30 to 60 minutes before proceeding. - Zero the Balance
Perform a zeroing operation by pressing the tare button. - Calibrate
Initiate internal calibration using the automatic or manual calibration function. - Weigh Sample
Place the sample on the weighing pan and record the stable measurement.
How does the dual-range readability of 0.01 mg and 0.1 mg affect measurement repeatability across the two capacity ranges on the EB51G-01MG-R-02 balance?
The balance provides automated dual-range switching between 0.01 mg readability (max capacity 51 g) and 0.1 mg readability (max capacity 120 g). At the higher precision range, standard repeatability deviation is ±0.02 mg; at the lower precision range, it is ±0.1 mg. This trade-off allows ultra-precise measurements for small samples while extending capacity for larger samples with proportionally relaxed repeatability.
What environmental conditions are required to maintain the EB51G-01MG-R-02's internal calibration accuracy?
The internal isbl calibration system automatically activates if ambient temperature fluctuates by ≥1.5°C or if more than 2 hours have elapsed since last calibration. The operating environment must be maintained at 10°C–33°C and 20%–80% RH to ensure stable readings and prevent drift, as specified in the environmental constraints.
Why is a 30–60 minute warm-up period mandatory before using the EB51G-01MG-R-02 balance for critical measurements?
The balance requires a mandatory preheating threshold of 30–60 minutes following power-on to stabilize the rear-mounted electromagnetic force sensor and eliminate baseline drift. Operating without this warm-up can compromise reading precision and sensor linearity, as stated in the operational notice.
The EB51G-01MG-R-02 dual-range analytical balance delivers 0.01 mg readability up to 51 g and 0.1 mg up to 120 g, with internal automated calibration triggered by temperature shifts ≥1.5°C or 2-hour intervals, but requires a 30–60 minute warm-up and stable environmental conditions (10–33°C, 20–80% RH) to maintain specified repeatability of ±0.02 mg.
Positive
- Dual-range readability with internal calibration: Automated dual-range readability (0.01 mg / 0.1 mg) combined with internal isbl calibration that activates upon ≥1.5°C ambient temperature drift or 2-hour elapsed time ensures sustained metrological traceability without manual intervention.
- Split-body design reduces vibration interference: Detached control display unit isolates hand-induced micro-vibrations from the balance base, enabling stable readings and flexible viewing angles during precision weighing operations.
Trade-offs
- Mandatory 30–60 minute warm-up period: The balance requires a 30–60 minute preheating threshold after power-on before operational zeroing or calibration can be performed, delaying immediate use in time-sensitive workflows.
- Sensitive to ambient temperature and humidity: Specified operating range of 10°C–33°C and 20%–80% RH imposes strict environmental control requirements; deviations may compromise repeatability (±0.02 mg) and linearity (±0.02 mg) specifications.
