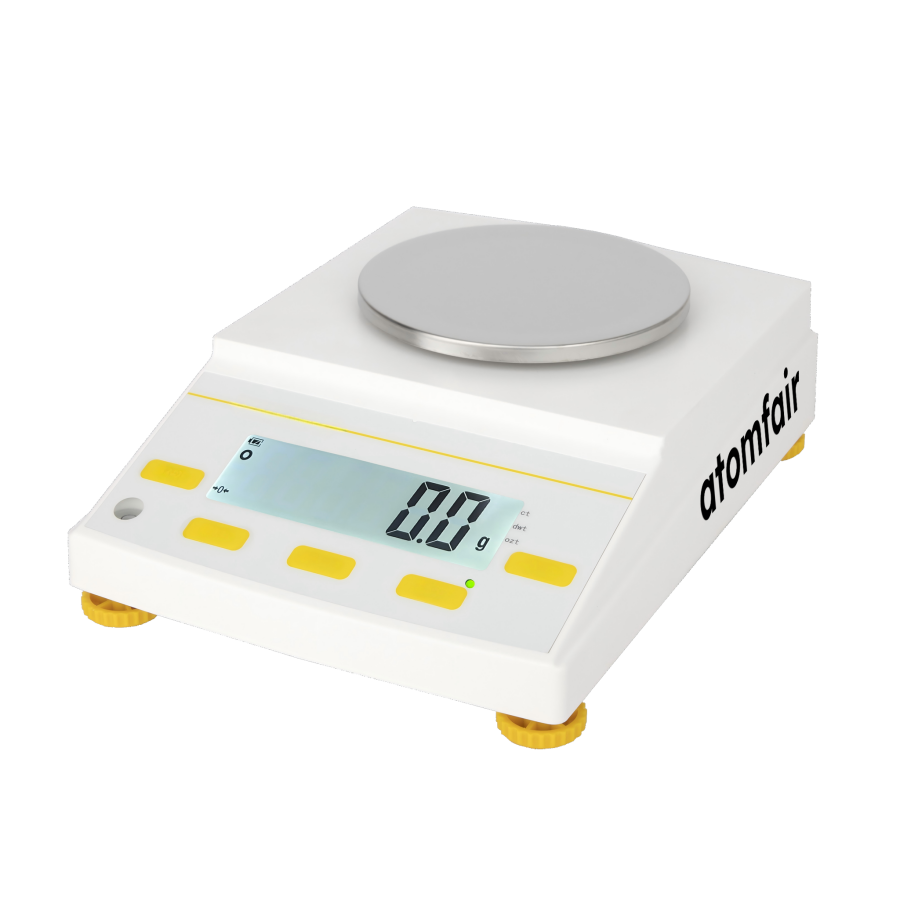

ATOMFAIR® EB5100G-0.1G LARGE-PAN SQUARE PLATFORM PRECISION BALANCEHEAVY-DUTY INDUSTRIAL METROLOGY SYSTEM
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
This precision balance requires proper baseline leveling during initialization to maintain full-scale linearity parameters. The device is sensitive to ambient vibrations and architectural harmonics, necessitating use of the reinforced structural suspension.
- Baseline Leveling Requirement: The balance must be leveled during initialization to secure linearity specifications.
- Vibration Sensitivity: The reinforced structural suspension buffers architectural harmonic resonance to protect against secondary vibration.
- Overload Protection: Hardened mechanical safety stops protect the central force gauge matrix against accidental drop stress.
- Data Interface Compatibility: The RS232 data port requires a compatible serial interface for real-time LIMS integration.
- Unit Conversion Capability: The internal firmware converter allows rapid software shifting across distinct international scientific standards.
Initialize the balance by leveling the platform and performing zero calibration. Select the appropriate digital filter speed to stabilize readings for bulk material loading.
- Level the Balance
Level the balance using the built-in indicators to ensure full-scale linearity parameters are met. - Set Zero Calibration
Activate the adjustable zero calibration to maintain absolute zero baselines across continuous material screening. - Select Filter Speed
Select one of the nine available filter speeds from the digital stabilization engine to stabilize bulk loading targets instantly.
How does the 9-tier digital stabilization filter engine affect measurement response time versus repeatability when weighing loads near the 5100g maximum capacity?
The 9 selectable filter speeds allow users to prioritize either faster stabilization or higher noise rejection depending on the bulk target, but the balance still maintains a repeatability of ±0.1g across all filter settings. This means that even at maximum load, the internal stabilization engine can suppress ambient macro-vibrations without compromising the stated reproducibility for large-volume sample verification.
Can the EB5100G-0.1G's standard RS232 data port be directly integrated into existing laboratory information management systems without additional protocol converters?
Yes, the integrated high-speed RS232 serial interface maps real-time analytical logs directly into LIMS and corporate PCs without requiring a protocol converter. For tailored laboratory software network setup guides, users should coordinate with the manufacturer's support group as noted in the operational compliance notice.
What baseline leveling and infrastructure conditions are required to achieve the stated linearity of ±0.2g in a laboratory environment with structural vibrations?
The balance requires proper baseline leveling during initialization to secure full-scale linearity parameters, as stated in the compliance notice. Additionally, its built-in 4-stage heavy shockproofing buffers architectural harmonic resonance and secondary workspace vibration, and the AC/DC dual power system decouples precision analytics from grid fluctuations to maintain consistent performance.
The EB5100G-0.1G is a heavy-duty precision balance with 5100g capacity and 0.1g readability, featuring a 9-tier digital stabilization filter and large 180×156mm square platform for bulk sample verification. Its rechargeable lithium battery and RS232 port support uninterrupted workflow and data logging, though proper baseline leveling is required during initialization to maintain full-scale linearity.
Positive
- 9-tier vibration isolation filter: Nine selectable digital stabilization speeds dampen ambient macro-vibrations and base noise, ensuring data reproducibility in busy institutional labs.
- Large square platform for bulk samples: The 180×156mm pan accommodates oversized vessels and bulk material verification, facilitating efficient large-volume sample processing.
Trade-offs
- Baseline leveling required for linearity: Proper baseline leveling during initialization is necessary to secure full-scale linearity parameters; improper setup may compromise measurement accuracy.
