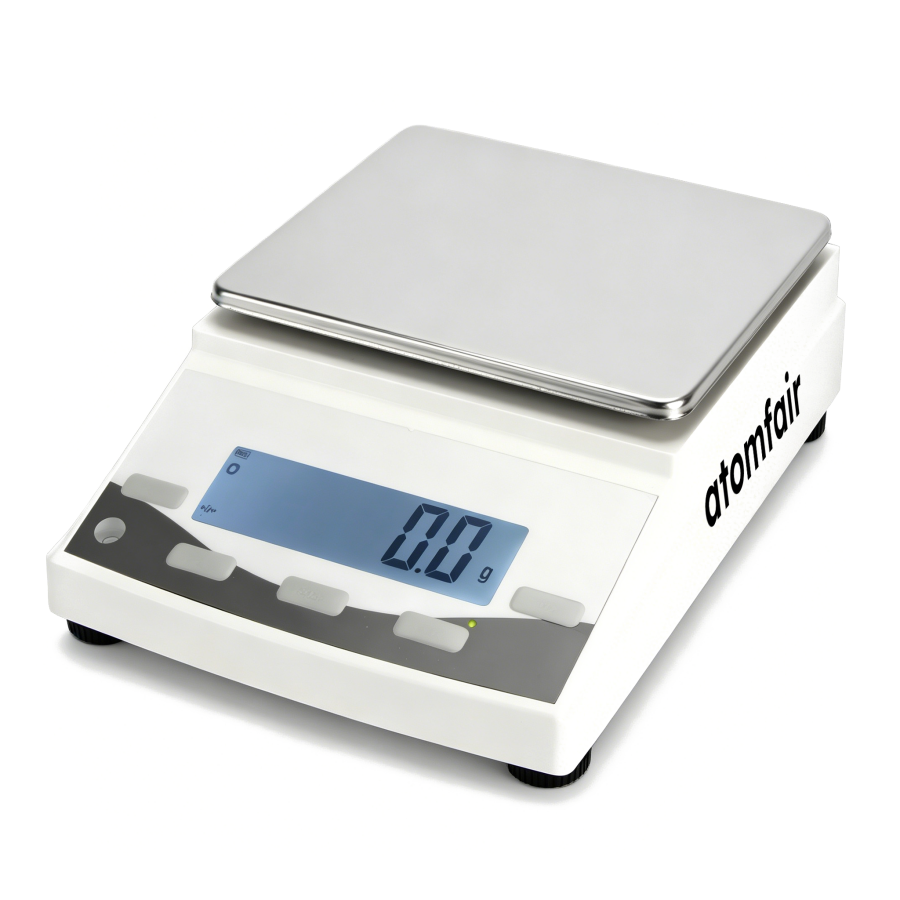

ATOMFAIR® EB5000G-0.1G LARGE-PAN SQUARE PLATFORM PRECISION BALANCEHEAVY-DUTY INDUSTRIAL METROLOGY SYSTEM
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
The balance requires precise leveling on a stable laboratory bench to ensure measurement accuracy and prevent mechanical strain. Overload conditions exceeding 5000g trigger automatic warning systems to protect the internal load cell.
- Leveling Constraint: The balance must be placed on a level surface and adjusted to eliminate tilt before initial use to control mass strain variations.
- Overload Warning: Automatic firmware tracking alerts the user when the applied load exceeds the maximum capacity of 5000g.
- Error Alarm Notification: Comprehensive guard architecture triggers error alarms for improper operation, zero-point drift, or sensor faults.
Proper initialization ensures accurate mass measurements and prevents sensor damage. Follow these steps to level, power, and tare the balance before use.
Required Equipment: Adjustable leveling feet, AC/DC power adapter, Tare button
- Level the balance
Level the balance on a stable laboratory bench using the adjustable feet to ensure no rocking and a true horizontal plane. - Connect power
Connect the AC/DC power adapter to the balance and plug it into a grounded electrical outlet to supply stable operating voltage. - Zero the display
Press the tare button with an empty container on the pan to zero the display and isolate the mass of the container. - Add sample and read measurement
Place the sample on the pan and read the displayed weight, ensuring the total load does not exceed 5000g to avoid overload warnings.
How does the EB5000G-0.1G's ±0.2g linearity tolerance affect gravimetric accuracy for high-capacity bulk sample verification?
The ±0.2g linearity specification means that across the full 5000g capacity range, the displayed value may deviate from the true mass by up to 0.2g, which is acceptable for routine bulk material checks but may not meet analytical-grade requirements for sub-0.1g precision. This tolerance is consistent across the entire EB series at this readability class, as confirmed by the series matrix showing ±0.2g linearity for all models from 600g to 6000g capacity.
Can the EB5000G-0.1G be integrated with existing laboratory data systems via its RS232 port for automated weight logging?
Yes, the integrated standard RS232 communication port enables direct digital telemetry streaming to a laboratory desktop PC, allowing automated data capture without manual transcription. The balance also supports field-upgradable expansion for advanced part-counting data tracks via its internal motherboard, though no wireless or USB interfaces are specified in the source.
What are the critical installation and power requirements for reliable operation of the EB5000G-0.1G in a non-laboratory industrial environment?
The balance requires precise workspace leveling during initial deployment to control mass strain variations, as noted in the compliance notice. Its dual AC/DC hybrid supply allows seamless continuous operation outside standard electrical grid nets, making it suitable for field or remote industrial sites where mains power may be intermittent or unavailable.
The EB5000G-0.1G precision balance offers 5000g capacity with 0.1g readability and a large 180×156mm platform, suitable for bulk sample verification. The dual AC/DC power supply enables off-grid operation, but the unit requires careful leveling to maintain accuracy.
Positive
- Large square platform for bulk samples: The 180×156mm square pan accommodates oversized containers and high-volume sample matrices, reducing the need for multiple weighing cycles.
- Adaptive AC/DC supply for field use: The dual AC/DC hybrid power routing allows continuous operation outside standard grid infrastructure, eliminating ambient workspace signal drift.
Trade-offs
- Requires precise leveling during deployment: The unit demands careful workspace balance leveling upon initial setup to control mass strain variations, as noted in the compliance notice.
