Description

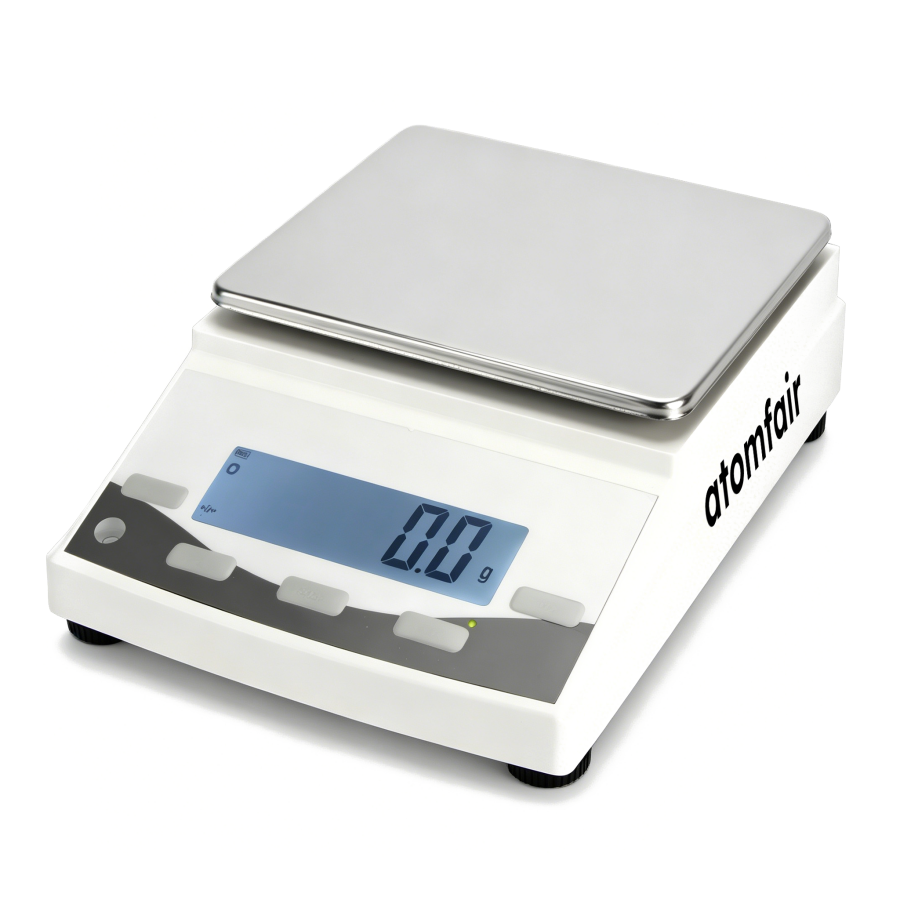

ATOMFAIR® EB3000G-0.1G LARGE-PAN SQUARE PLATFORM PRECISION BALANCEHEAVY-DUTY INDUSTRIAL METROLOGY SYSTEM
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
The balance requires precise laboratory workspace leveling during initial deployment to control mass strain variations. Ambient workspace signal drift must be eliminated to guarantee strict data reproducibility.
- Leveling Requirement: The balance must be placed on a stable, vibration-free surface and leveled using its adjustable feet before any measurement operation.
Initialize the balance by leveling the workspace and connecting the power supply. Perform a zero calibration before each measurement session to ensure accuracy.
Required Equipment: Leveling bubble indicator, Adjustable feet
- Level the balance
Place the balance on a stable, vibration-free surface and adjust the leveling feet until the bubble indicator is centered. - Connect power supply
Connect the universal AC/DC adapter to the balance and a suitable power outlet, then power on the unit. - Perform zero calibration
Press the tare button with an empty pan to zero the balance, ensuring no load is present. - Verify measurement readiness
Confirm the display shows zero and no error alarms are active before placing any sample on the platform.
How does the ±0.2g linearity specification affect measurement accuracy across the full 3000g range compared to the ±0.1g repeatability?
The linearity error of ±0.2g indicates potential deviation from true value across the entire 3000g capacity, which is twice the repeatability error of ±0.1g. While repeated measurements of the same mass are consistent within 0.1g, absolute accuracy may vary by up to 0.2g depending on load position or magnitude. For applications requiring absolute precision across the full range, users should account for this linearity tolerance as specified in the product parameters.
Can the EB3000G-0.1G be integrated into a modern laboratory data acquisition system that uses USB-only interfaces?
The balance is equipped with a standard RS232 serial port for digital telemetry streaming to laboratory desktop PCs, as stated in the features list. Direct USB connectivity is not specified; integration into USB-only systems would require an external RS232-to-USB adapter. The internal motherboard supports field-upgradable expansion for advanced part-counting data tracks, but no additional communication protocols are mentioned in the product description.
What specific leveling procedure is required for the EB3000G-0.1G to ensure accurate heavy-duty measurements?
The compliance notice states that precise laboratory workspace balance leveling is required during initial deployment to control mass strain variations on the 3000g heavy-duty square platform series. No further details on procedure or tools are provided in the product description; users should follow standard laboratory balance leveling practices and ensure a stable, vibration-free surface to maintain specified repeatability and linearity.
The ATOMFAIR EB3000G-0.1G precision balance delivers a 3000g capacity with 0.1g readability on a large 180×156mm square platform, featuring RS232 telemetry and dual AC/DC power for continuous operation, but requires careful leveling during deployment and offers only 0.1g resolution for high-capacity weighing.
Positive
- Large square platform for bulk samples: The 180×156mm square pan accommodates oversized containers and high-volume sample verification, enabling stable placement of bulky materials without spillage.
- Dual AC/DC hybrid power supply: Adaptive power routing permits seamless continuous operation outside standard electrical grid nets, ensuring uninterrupted metrology in field or backup scenarios.
Trade-offs
- Requires precise workspace leveling: Initial deployment demands careful laboratory balance leveling to control mass strain variations, adding setup time and requiring a stable, vibration-free bench.
- 0.1g readability limits fine resolution: With 0.1g readability and ±0.1g repeatability, the balance is unsuitable for applications requiring sub-gram precision, such as analytical chemistry or micro-weighing.
