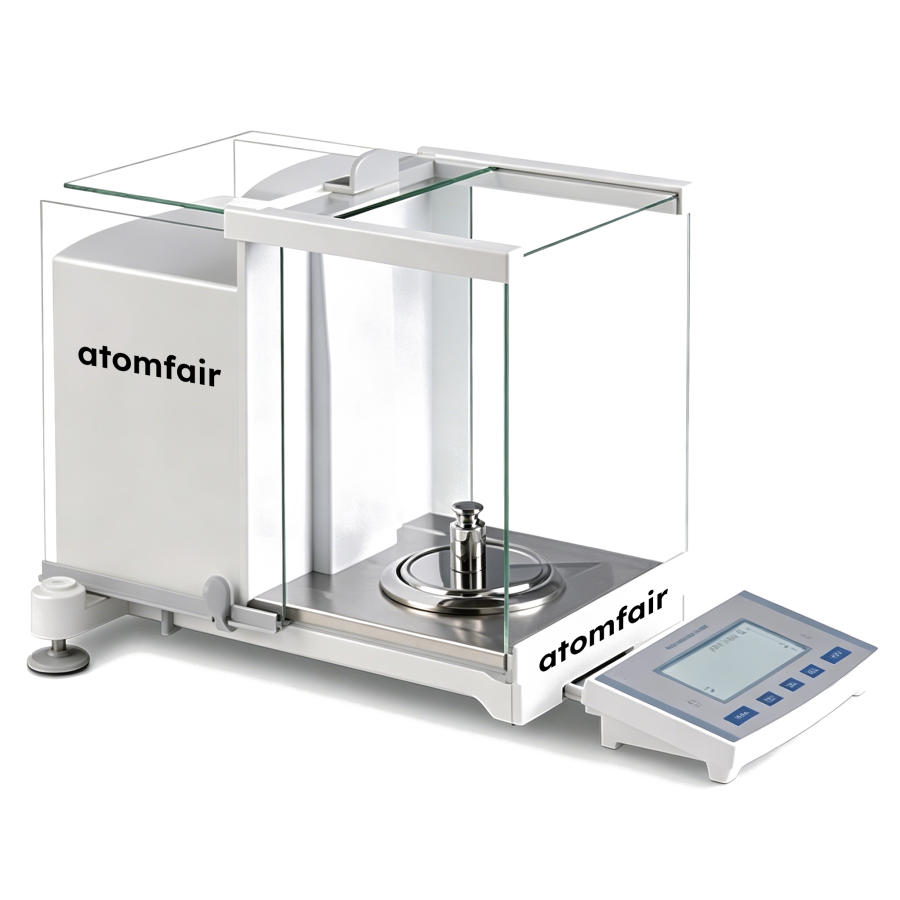

ATOMFAIR® EB320G-0.1MG-01 ELECTRONIC ANALYTICAL BALANCERESEARCH GRADE METROLOGY
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
TAILORED METROLOGY FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
This precision balance requires a regulated thermal environment (18–23°C) and non-condensing humidity (20–80%RH) to maintain 0.1 mg readability. An initial warm-up of 30–60 minutes is mandatory for sensor stabilization, and auto-calibration is triggered by thermal fluctuations exceeding 1.5°C or every two hours.
- Environmental Temperature: Maintain ambient temperature within 18–23°C, as deviations beyond this range degrade measurement accuracy.
- Atmospheric Humidity: Keep relative humidity between 20% and 80% non-condensing to avoid condensation on internal components.
- Warm-up Duration: Allow the balance to power on and stabilize for 30–60 minutes before performing any critical measurements.
- Vibration Isolation: Place the balance on a stable, vibration-free surface; the split-display design reduces but does not eliminate kinetic interference.
- Auto-Calibration Triggers: The balance automatically recalibrates when internal temperature changes >1.5°C or after two hours of continuous operation.
Follow these steps to achieve 0.1 mg precision with the analytical balance. Proper warm-up and environmental control are critical for reliable metrology.
Required Equipment: 12V/2A power adapter (provided)
- Connect Power
Connect the balance to a 220VAC/50Hz mains supply using the provided 12V/2A power adapter. - Position the Balance
Place the balance on a rigid, level surface away from drafts, vibrations, and direct sunlight. - Perform Warm-up
Allow the balance to warm up for 30–60 minutes to stabilize the electromagnetic sensor. - Verify Environment
Confirm that ambient temperature is 18–23°C and relative humidity is 20–80% using a separate monitor. - Execute Calibration
Trigger auto-calibration via the menu or wait for automatic recalibration upon temperature change or time lapse. - Tare and Weigh
Tare the pan with an empty container, then place the sample and record the stable reading.
What is the trade-off between maximum capacity and readability in the EB220G-0.1MG-I-02 analytical balance?
The EB220G-0.1MG-I-02 offers 0.1mg readability (d) with a maximum capacity of 320g, which is a high capacity for a 0.1mg readability balance. The repeatability error is ±0.1mg and linearity error is ±0.2mg, ensuring precision across the full range. This balance is optimized for ultra-low mass powder and fluid tracking up to 320g, but users must allow 30–60 min warm-up and operate within 18–23°C to maintain that performance.
Can the EB220G-0.1MG-I-02 be integrated with a Laboratory Information Management System (LIMS) or external PC?
Yes, it is equipped with an industrial RS232 communication interface for bidirectional data synchronicity, allowing seamless integration with peripherals, PCs, and third-party LIMS environments. This enables direct data transfer without manual recording, reducing transcription errors.
What are the power and environmental requirements for operating the EB220G-0.1MG-I-02 at its rated accuracy?
The balance requires a power input of 220VAC 50Hz, with an output of 12V/2A DC. It must be operated in a regulated thermal zone of 18°C–23°C and non-condensing humidity of 20%–80%RH. An initial warm-up of 30–60 minutes is necessary before verification to achieve 0.1mg repeatability.
The ATOMFAIR EB220G-0.1MG-I-02 analytical balance offers 0.1mg readability with a 320g capacity, leveraging a rear-mounted electromagnetic sensor and vibration-isolated split design for reliable micro-powder and fluid measurements, but requires a controlled environment and 30-60 minute warm-up for optimal accuracy.
Positive
- Rear-mounted electromagnetic force restoration: Provides ultra-responsive, rapid, and drift-free mass detection for high-precision measurements.
- Vibration-isolated split design: Decouples the LED display from the weighing mechanism to eliminate keystroke kinetic interference.
Trade-offs
- Extended warm-up requirement: Requires 30-60 minute warm-up and internal calibration within 18-23°C to achieve specified 0.1mg metrology.
- Controlled thermal environment needed: Operating ambient temperature must be tightly regulated between 18°C and 23°C; deviations may affect performance.
