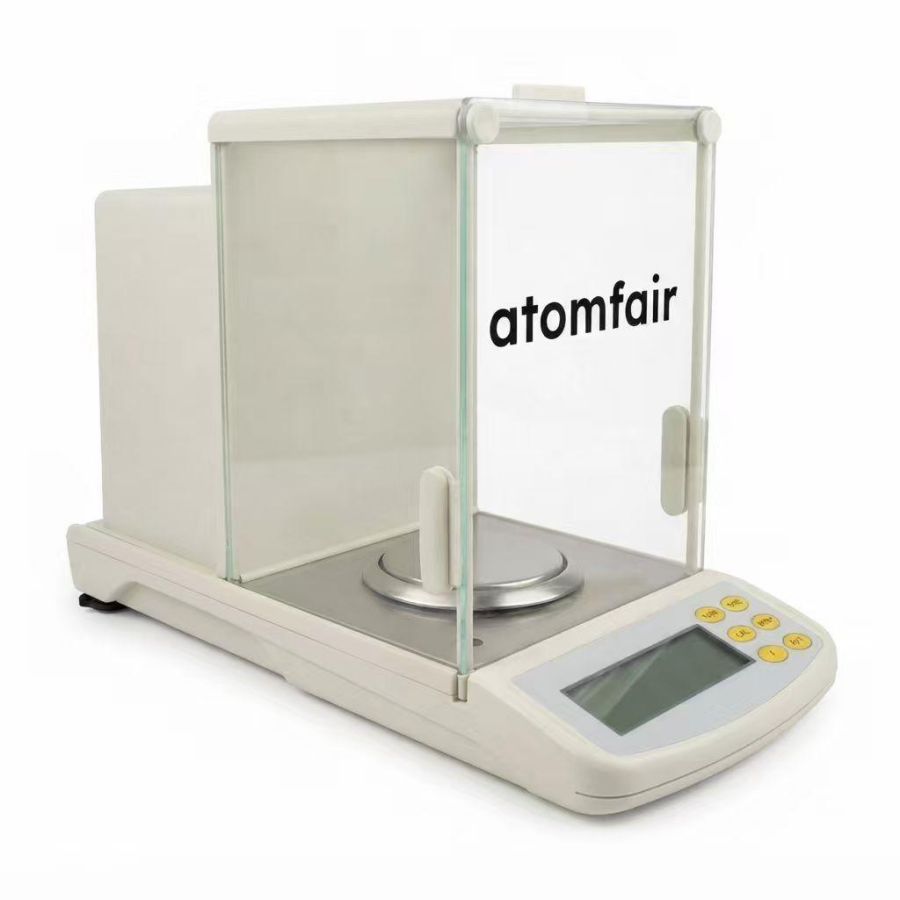

ATOMFAIR® EB210G-0.1MG-R-02 DUAL-RANGE ELECTROMAGNETIC ANALYTICAL BALANCERESEARCH GRADE
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
This instrument requires a 30-minute pre-heating period and a sealed three-door draft shield to achieve hundred-thousandth resolution accuracy. Environmental temperature stability and proper leveling via the built-in spirit level and adjustable feet are critical to prevent drift and maintain measurement fidelity.
- Thermal Equilibrium Requirement: Allow the electromagnetic force compensation core to warm up for 30 minutes before any calibration or high-resolution weighing.
- Draft Shield Sealing: Ensure the three-door glass draft shield is fully closed and sealed when operating in the 0.01 mg readability mode.
- Leveling Procedure: Verify the front bubble spirit level is centered by adjusting the heavy-duty micro-threaded leveling feet prior to use.
Follow these steps to stabilize and prepare the balance for high-resolution weighing. Each action ensures the electromagnetic core and environmental enclosure are at their operational set points.
Required Equipment: Spirit level indicator, Micro-threaded leveling feet, Three-door draft shield
- Level the balance
Level the balance by adjusting the heavy-duty micro-threaded feet until the front bubble spirit level is centered. - Pre-heat the core
Allow the electromagnetic force compensation system to pre-heat for 30 minutes to reach full equilibrium. - Seal the draft shield
Confirm the three-door glass draft shield is entirely sealed before initiating measurements at hundred-thousandth resolution.
What is the practical accuracy trade-off when using the dual-range EB210G-0.1MG-R-02 balance at 0.01 mg readability versus 0.1 mg readability?
The balance delivers 0.01 mg readability only up to 82 g capacity, with repeatability and linearity of ±0.06 mg, while the 0.1 mg mode extends to 210 g with ±0.6 mg. Achieving the higher resolution requires a 30-minute pre-heating phase and a fully sealed three-door draft shield to neutralize ambient drift, as specified in the operational notice.
Can the EB210G-0.1MG-R-02 balance be integrated with automated data logging or external density measurement systems?
Yes, it includes a standard RS232 digital output interface for direct computer logging or peripheral printer output. Additionally, the balance supports under-hook density configurations for bottom-weighing accessories and hydrostatic test stands, enabling dual-purpose gravimetric measurements.
What environmental and operational conditions are required to maintain 0.01 mg accuracy on the EB210G-0.1MG-R-02?
The draft shield must be fully sealed during hundred-thousandth weighing routines. A 30-minute system pre-heating phase is mandatory to allow the electromagnetic core to reach equilibrium. The balance is equipped with a front-mounted bubble spirit level and heavy-duty micro-threaded leveling feet, and the FA variant features automated internal calibration triggered by time or ambient temperature fluctuations to compensate for drift.
The EB210G-0.1MG-R-02 dual-range analytical balance uses rear-mounted EMFC for high-stability weighing, offering 210 g capacity at 0.1 mg and 82 g at 0.01 mg, but requires careful environmental conditioning and a pre-heating period for semi-micro precision.
Positive
- Rear-Mounted EMFC Sensor Technology: High-sensitivity electromagnetic force compensation maximizes resolution stability for precise analytical weighing.
- Dual-Resolution Mode Flexibility: Switching between 0.1 mg and 0.01 mg readability allows adaptation to varying precision needs within a single instrument.
Trade-offs
- Restricted High-Resolution Capacity: At 0.01 mg readability, maximum capacity drops to 82 g, limiting semi-micro weighing to lighter samples.
- Required Pre-Heating and Draft Shield Sealing: For 0.01 mg operation, a 30-minute warm-up and complete closure of the three-door draft shield are mandatory to achieve equilibrium.
