Description

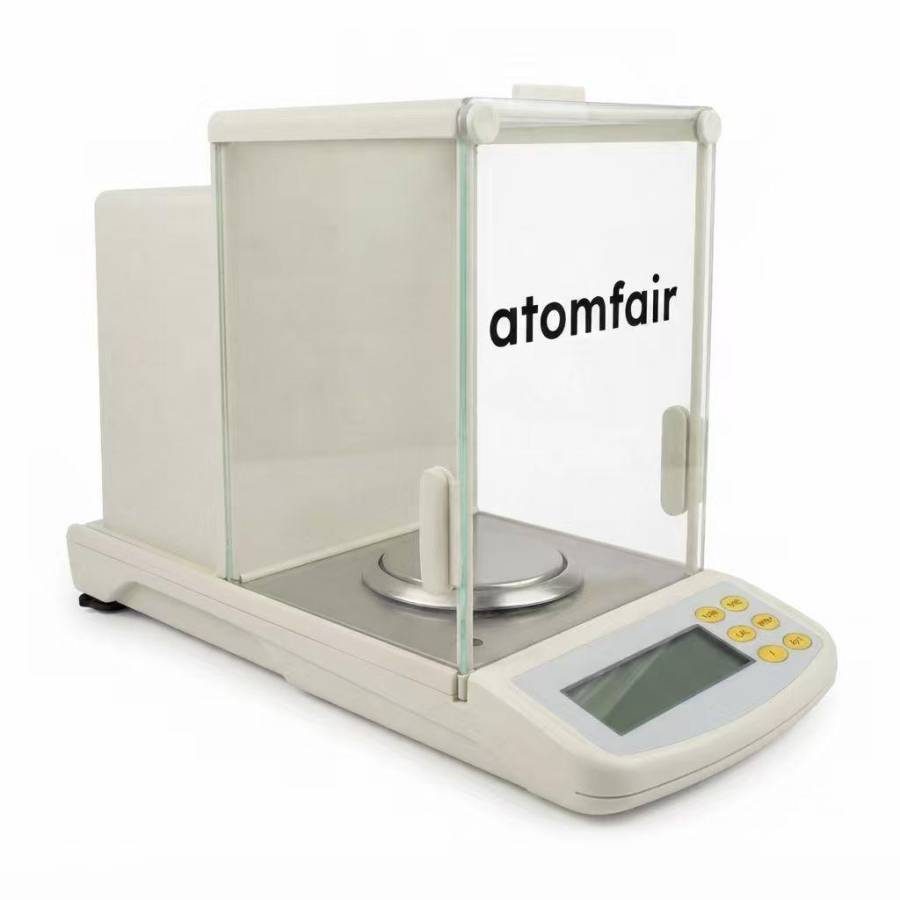

ATOMFAIR® EB210G-0.1MG-R-05 DUAL-RANGE ELECTROMAGNETIC ANALYTICAL BALANCEEXTERNAL CALIBRATION
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
This dual-range analytical balance requires a 30-minute preheating period and sealed draft shield for high-resolution measurements. Ambient stability and proper leveling are essential to maintain specified repeatability and linearity.
- Preheating Requirement: Allow the electromagnetic core to reach full equilibrium by powering on the balance at least 30 minutes before initiating calibration sequences.
- Draft Shield Sealing: Ensure all three doors of the glass draft shield are entirely sealed when performing hundred-thousandth (0.01 mg) weighing verification routines.
- Leveling Procedure: Adjust the micro-threaded leveling feet until the front-facing bubble spirit level indicates the balance is on a true horizontal plane.
- External Calibration Protocol: Perform manual external calibration using certified standard weights to guarantee user-verified linearity points as per the FB variant framework.
- Data Communication Infrastructure: Connect the balance via the standard RS232 interface to automated logging systems or external printers for reliable data capture.
What accuracy trade-offs exist when operating the EB210G-0.1MG-R-05 at 0.01 mg readability compared to 0.1 mg?
At 0.01 mg readability (52 g capacity), repeatability and linearity are ±0.06 mg each, four times tighter than the ±0.6 mg at 0.1 mg readability (210 g capacity). However, achieving 0.01 mg performance requires a sealed three‑door draft shield and a 30‑minute pre‑heating phase for the electromagnetic core to reach thermal equilibrium, which is not mandatory at the higher capacity range.
Can the EB210G-0.1MG-R-05 be integrated with laboratory data acquisition systems or printers?
Yes, the balance is equipped with a standard RS232 digital output interface that supports automated computer logging loops and direct peripheral printing of measurement results. This enables seamless integration into existing lab data networks without additional protocol converters.
What environmental and preparatory steps are required to reliably obtain 0.01 mg semi‑micro weighing results on this balance?
For 0.01 mg readability, the three‑door glass draft shield must be entirely sealed to isolate the weighing chamber from ambient air currents. Additionally, a 30‑minute system pre‑heating phase is mandatory before initiating calibration to let the electromagnetic force compensation sensor stabilize. The balance relies on manual external calibration using certified reference weights, as it follows the FB series external calibration framework.
The EB210G-0.1MG-R-05 dual-range electromagnetic analytical balance offers 0.1 mg and 0.01 mg readability across 210 g and 52 g ranges respectively, utilizing rear-mounted EMFC sensor technology. Its external calibration workflow and mandatory 30-minute pre-heating for semi-micro mode impose operational dependencies that labs must accommodate.
Positive
- Dual-range high-resolution weighing: The balance provides 0.1 mg readability at 210 g capacity and 0.01 mg readability at 52 g capacity, enabling both general analytical and semi-micro precision work in a single instrument.
- Rear-mounted EMFC sensor stability: Rear-mounted electromagnetic force compensation technology delivers high sensitivity and ultra-stable readings, maximizing structural resolution limits for consistent measurement performance.
Trade-offs
- Manual external calibration required: This FB variant relies on manual external calibration protocols using standard weights, lacking the automated internal calibration and timer/temperature-triggered features of the FA series.
- Strict preconditioning for high resolution: For 0.01 mg semi-micro operation, the draft shield must be fully sealed and a 30-minute system pre-heating phase is required to allow the electromagnetic core to reach equilibrium before calibration.
Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.
To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.
Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).
