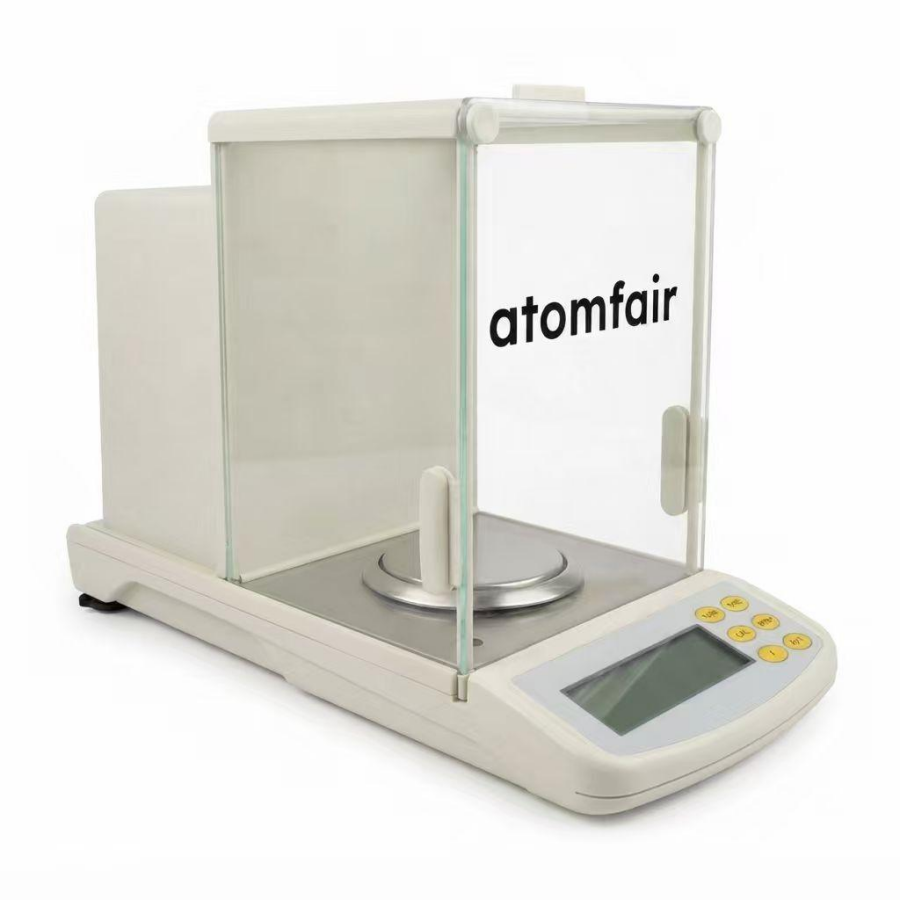

ATOMFAIR® EB210G-0.1MG-R-01 DUAL-RANGE ELECTROMAGNETIC ANALYTICAL BALANCEEXTERNAL CALIBRATION
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
This analytical balance requires a 30-minute pre-heating phase to achieve electromagnetic core equilibrium before calibration. The three-door draft shield must be entirely sealed when operating in the 0.01 mg resolution mode to prevent ambient drift.
- Leveling Requirement: The balance must be leveled using the front bubble spirit level and micro-threaded leveling feet before use.
- Pre-Heating Requirement: A 30-minute system pre-heating phase is mandatory prior to initializing calibration sequences.
- Draft Shield Sealing: The three-door draft shield housing must be entirely sealed for hundred-thousandth weighing verification routines.
- Calibration Protocol: Manual external calibration must be performed to verify linearity points.
- Temperature Compensation: Integrated temperature compensation matrices maintain accuracy under varying ambient conditions.
Follow these steps to prepare the balance for accurate weighing, including leveling, pre-heating, and performing external calibration. Proper execution ensures optimal performance in dual-resolution modes.
Required Equipment: External calibration weight set
- Level the balance
Verify the balance is level using the front-facing bubble spirit level and adjust the micro-threaded leveling feet as needed. - Pre-heat the balance
Allow the balance to pre-heat for 30 minutes to stabilize the electromagnetic core before any calibration. - Seal the draft shield
Ensure all three doors of the draft shield are closed and sealed when operating in the 0.01 mg resolution mode. - Perform external calibration
Execute the manual external calibration routine using a standard weight set to verify linearity points.
How does the dual-range weighing capability of the EB210G-0.1MG-R-01 affect repeatability and linearity when switching between 210 g and 82 g capacity modes?
The balance offers a capacity-versus-precision trade-off. At the 210 g maximum capacity, repeatability and linearity are ±0.6 mg; when operating in the 82 g mode, these improve to ±0.06 mg. This allows researchers to select higher precision for smaller samples without sacrificing the ability to weigh larger masses up to 210 g.
Can the EB210G-0.1MG-R-01 be integrated into an automated data logging system for traceability in pharmaceutical quality control?
Yes, the balance includes a standard RS232 digital output interface that supports automated computer logging loops or peripheral lab report printing. Its manual external calibration protocol provides predictable, user-verified linearity points, which can be documented for audit trails in regulated environments.
What environmental precautions and warm-up procedures are required for achieving 0.01 mg readability on the EB210G-0.1MG-R-01?
For stable 0.01 mg readings, the three-door draft shield must be completely sealed to isolate the chamber from drafts and temperature fluctuations. A mandatory 30-minute pre-heating phase is required before calibration to allow the electromagnetic force compensation sensor to reach full thermal equilibrium. The balance also features structural temperature compensation and a front-mounted bubble spirit level with heavy-duty leveling feet for proper installation.
The ATOMFAIR EB210G-0.1MG-R-01 dual-range analytical balance delivers 0.1 mg/0.01 mg readability via rear-mounted EMFC sensor, with a 210 g/82 g dual capacity and RS232 output, but requires operator-performed external calibration and a 30-minute warm-up for semi-micro resolution.
Positive
- Dual-Resolution Electromagnetic Force Compensation: The rear-mounted EMFC sensor enables seamless switching between 0.1 mg and 0.01 mg readability, providing high-resolution weighing for analytical workflows while maintaining a 210 g maximum capacity.
- Comprehensive Environmental Safeguards: Built-in structural temperature compensation, overload/underload warnings, and a three-door draft shield mitigate ambient drift and physical disturbances during precision measurements.
Trade-offs
- Manual External Calibration Required: Unlike automated internal calibration variants, this FB series balance requires user-initiated manual calibration with external weights, increasing operator dependency for maintaining linearity.
- Extended Warm-Up for High-Resolution Mode: To achieve 0.01 mg readability, the balance demands a 30-minute pre-heating phase and a fully sealed draft shield, adding setup time and environmental discipline.
