Description

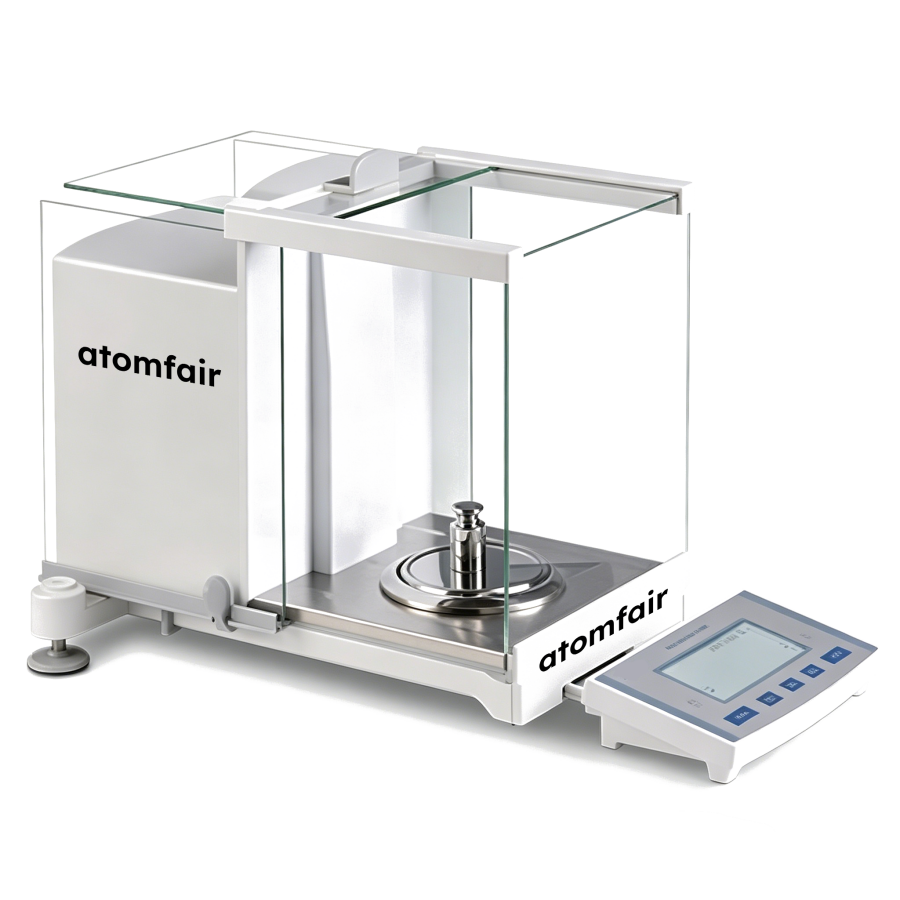

ATOMFAIR® EB210G-0.1MG-I ELECTRONIC ANALYTICAL BALANCERESEARCH GRADE METROLOGY
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
TAILORED METROLOGY FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
The balance requires a regulated thermal environment of 18–23°C and non-condensing humidity of 20–80%RH to maintain metrology stability. A 30–60 minute warm-up period is mandatory before use to achieve core stabilization and eliminate drift.
- Thermal and Humidity Requirements: Operating ambient temperature must be maintained at 18–23°C with relative humidity between 20% and 80% non-condensing to prevent measurement errors.
- Warm-Up Protocol: Initial warm-up duration of 30–60 minutes is required for the electromagnetic force restoration sensor to stabilize before any verification or measurement.
- Auto-Calibration Trigger: The intelligent auto-calibration loop activates automatically when ambient temperature fluctuates more than 1.5°C or every 2 hours to correct for thermal drift.
- Vibration Isolation: The split architecture decouples the display from the weighing block to eliminate keystroke kinetic interference, requiring placement on a stable, vibration-free surface.
- Draftshield Integrity: The all-around glass shield must be properly seated during operation to protect against air currents and contamination, and is removable for cleaning without tools.
Proper initialization and operation require a stable environment, adequate warm-up, and calibration verification. Follow these steps to ensure accurate metrology performance.
Required Equipment: Stable laboratory bench (vibration-free), Power supply unit (220VAC 50Hz input, 12V/2A output), Internal calibration mechanism or certified standard weight
- Position the Balance
Place the balance on a stable, vibration-free surface within the 18–23°C thermal zone and 20–80%RH non-condensing atmosphere. - Connect Power and Warm Up
Connect the power supply and allow the instrument to warm up and self-calibrate for 30–60 minutes before any verification. - Verify Calibration
After warm-up, verify accuracy by triggering the internal calibration function or using a certified standard weight. - Monitor Auto-Calibration
Ensure the auto-calibration feature is enabled to automatically correct for temperature fluctuations exceeding 1.5°C or every 2 hours. - Clean the Draftshield
Remove the glass draftshield for sanitization cycles as needed, then reattach it securely before resuming measurements.
How does the intelligent auto-calibration feature on the ATOMFAIR EB210G-0.1MG-I trade off between thermal stability and continuous measurement throughput?
The auto-calibration triggers upon a temperature fluctuation greater than 1.5°C or every 2 hours, automatically correcting for ambient drift but temporarily interrupting the measurement workflow. This trade-off prioritizes sustained accuracy over uninterrupted throughput, making the balance ideal for research-grade metrology where precision is critical and calibration cycles can be scheduled around experiments.
What are the integration constraints when connecting the EB210G-0.1MG-I to a third-party LIMS via its RS232 interface?
The balance is equipped with an industrial RS232 interface for bidirectional data synchronicity with PCs, peripherals, and third-party LIMS environments, as stated in the product specifications. However, the provided description does not include protocol details such as baud rate, parity, or cable pinout, so users must consult ATOMFAIR engineering support for full configuration parameters. The split architecture additionally requires the weighing block to remain on a stable, vibration-free surface within the 18–23°C thermal zone to ensure data integrity.
What are the critical infrastructure requirements for deploying the EB210G-0.1MG-I to maintain its 0.1mg accuracy?
The balance requires a stable power supply of 220VAC 50Hz input with a 12V/2A DC output, an operating ambient temperature of 18–23°C, and humidity between 20% and 80% RH non-condensing. A mandatory 30–60 minute warm-up period is necessary for core metrology stabilization before any verification, and the draftshield must be placed in a vibration-isolated environment to prevent kinetic interference from keystrokes on the decoupled LED display.
The EB210G-0.1MG-I offers 0.1 mg readability and 220 g capacity with an electromagnetic force restoration sensor and split-design architecture to minimize vibration interference. Its auto-calibration compensates for thermal drift, but requires a 30-60 minute warm-up and a controlled 18–23°C environment for rated accuracy.
Positive
- Rear-mounted electromagnetic restoration sensor: Provides ultra-responsive, rapid, and drift-free mass detection kinetics with 0.1 mg readability and ±0.1 mg repeatability, suitable for high-precision laboratory metrology.
- Vibration-isolated split architecture: Decouples the LED display from the weighing block, eliminating keystroke kinetic interference and maintaining measurement integrity during sample processing.
Trade-offs
- Extended warm-up requirement: Requires 30–60 minutes of power-on stabilization within the specified thermal zone before achieving rated 0.1 mg metrology performance.
- Narrow ambient temperature window: Operating temperature must be strictly maintained between 18°C and 23°C; deviations outside this range may affect measurement accuracy and require recalibration.
Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.
To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.
Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).
