ATOMFAIR® EB120G-0.1MG-I-01 ELECTRONIC ANALYTICAL BALANCERESEARCH GRADE METROLOGY
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
TAILORED METROLOGY FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
The balance requires a regulated temperature environment of 18°C to 23°C and non-condensing humidity between 20% and 80% RH for accurate metrology. A 30 to 60 minute warm-up and proper vibration isolation are mandatory to achieve specified repeatability and linearity.
- Ambient Temperature Range: Operate the balance only within 18°C to 23°C to prevent thermal drift.
- Humidity Limit: Maintain relative humidity between 20% and 80% to avoid condensation and measurement errors.
- Warm-up Period: Allow the balance to warm up for 30 to 60 minutes after power-on to stabilize the internal electronics.
- Auto-Calibration Trigger: Automatic calibration is initiated when ambient temperature fluctuates more than 1.5°C or every 2 hours.
- Vibration Isolation: Place the balance on a vibration-free bench to eliminate kinetic interference and ensure repeatability.
Initial setup requires careful attention to environmental conditions and warm-up procedures. Follow these steps to achieve the specified measurement performance.
Required Equipment: ATOMFAIR EB120G-0.1MG-I-01 Analytical Balance
- Place Balance on Stable Surface
Place the balance on a vibration-free bench in a temperature- and humidity-controlled environment. - Connect Power and Warm Up
Connect the balance to a 220VAC power supply and allow it to warm up for 30 to 60 minutes. - Verify Ambient Conditions
Verify that the ambient temperature is between 18°C and 23°C and humidity is between 20% and 80% RH. - Perform Auto-Calibration
Activate the automatic calibration function or allow it to trigger upon thermal fluctuation or after 2 hours.
How does the 30–60 minute warm-up requirement affect measurement stability for the 0.1 mg readability, and can reliable data be collected before full stabilization?
The 30–60 minute warm-up is mandatory for core metrology stabilization; measurements taken before this period may not achieve the specified repeatability error of ±0.1 mg and linearity error of ±0.2 mg. The balance further compensates for ambient changes via intelligent auto-calibration, which triggers automatically upon thermal fluctuations >1.5°C or every 2 hours to maintain accuracy.
Can the EB120G-0.1MG-I-01 be integrated with a laboratory information management system (LIMS) and what data interface does it support?
Yes, the balance is equipped with an industrial RS232 communication interface that enables bidirectional data synchronicity, allowing seamless integration with PCs, peripherals, and third-party LIMS environments. This supports real-time data transfer for automated record-keeping and compliance.
What are the critical environmental and power infrastructure requirements for maintaining 0.1 mg accuracy with the ATOMFAIR EB120G-0.1MG-I-01?
The balance requires a regulated thermal zone of 18°C–23°C and non-condensing humidity between 20%–80%RH. Power input must be 220VAC 50Hz, with a 12V/2A stable DC output. The split architecture decouples the display from the weighing unit to eliminate keystroke vibrations, and the structural glass shield protects sample integrity.

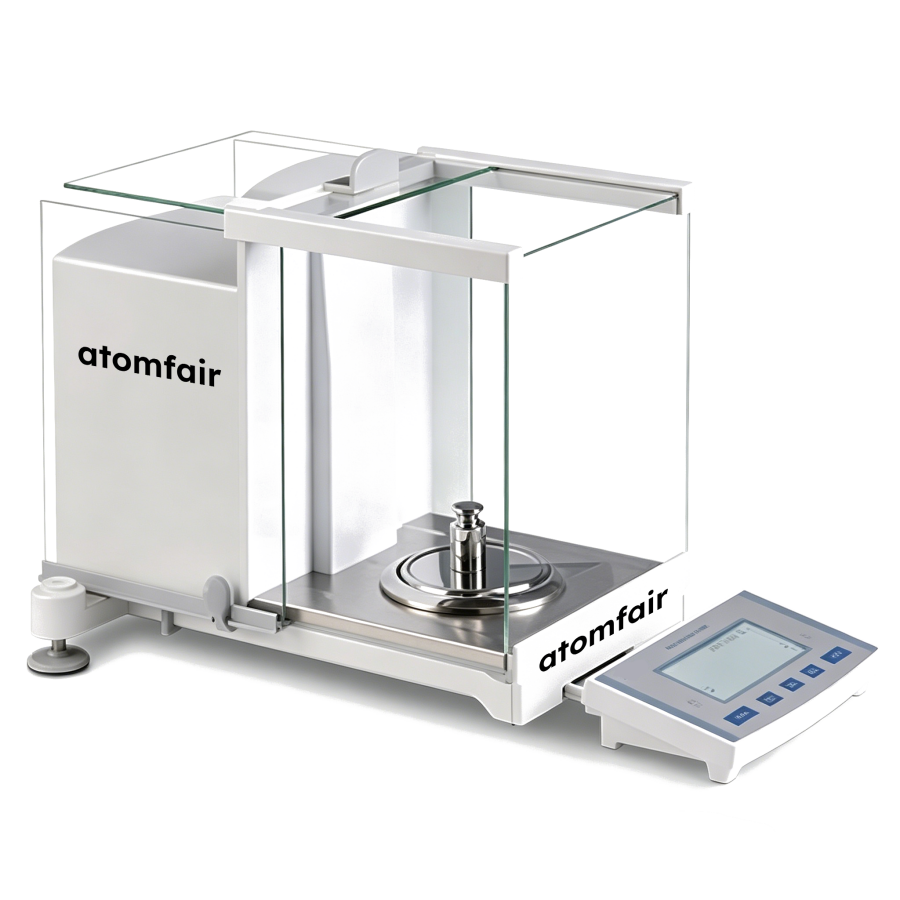

The ATOMFAIR® EB120G-0.1MG-I-01 electronic analytical balance delivers 0.1mg readability with a 210g capacity, utilizing a rear-mounted electromagnetic force restoration sensor for drift-free mass detection and a split architecture that isolates the display from the weighing mechanism to eliminate keystroke vibrations. However, it requires a regulated 18°C–23°C thermal zone and a mandatory 30–60 minute warm-up period to achieve specified metrology stability.
Positive
- Drift-free electromagnetic sensor: Rear-mounted electromagnetic force restoration provides ultra-responsive, rapid mass detection with minimal drift over time, ensuring consistent baseline measurements for micro-powder and fluid tracking.
- Vibration-isolated split design: The high-brightness LED display unit is physically decoupled from the weighing block, eliminating kinetic interference from keystrokes and preserving measurement integrity during sample processing.
Trade-offs
- Extended warm-up requirement: A 30–60 minute initial warm-up is mandatory before verification to allow the internal electronics and sensor to stabilize, adding setup time before routine use.
- Narrow operating temperature range: Optimal performance is confined to 18°C–23°C; deviations outside this thermal zone may degrade repeatability and linearity, requiring climate-controlled laboratory infrastructure.
