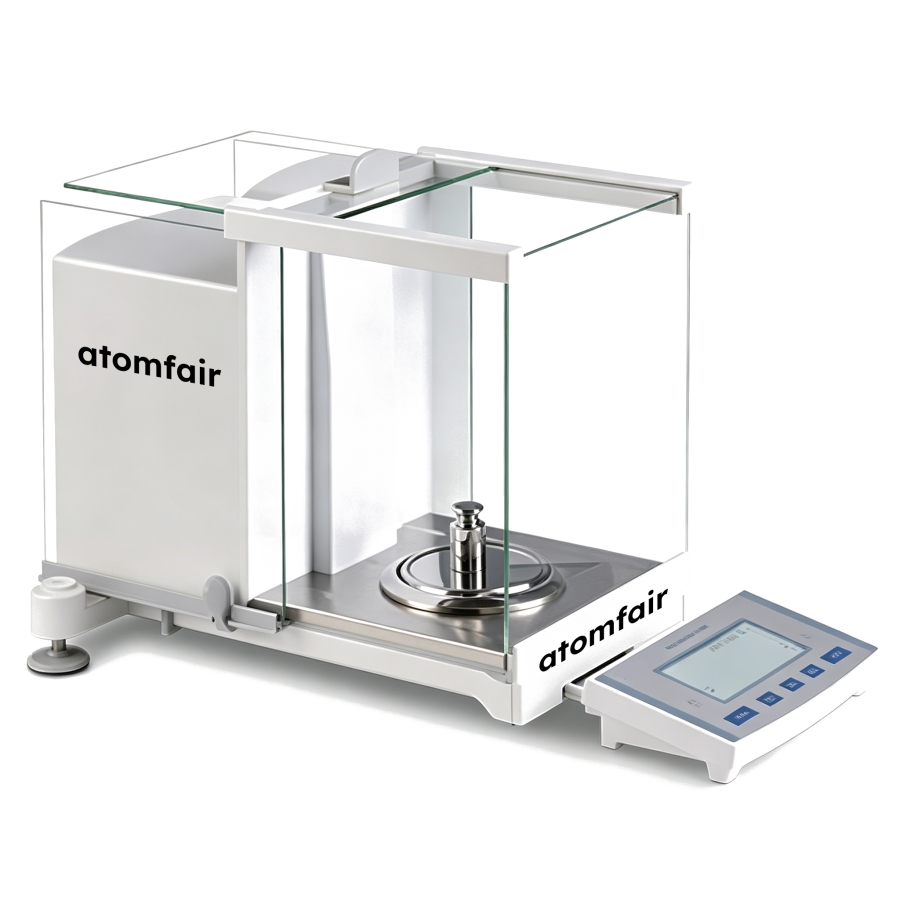

ATOMFAIR® EB120G-0.1MG-02 ELECTRONIC ANALYTICAL BALANCEEB120G-0.1MG-02 CORE SPECIFICATION PLATFORM
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
TAILORED INDUSTRIAL LAB SOLUTIONS
Contact our elite laboratory engineering team for institutional bulk procurement quotes or interface custom integration.
EMAIL: INQUIRY@ATOMFAIR.COM
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
MANUFACTURER OPERATIONS: ATOMFAIR LLC INSTRUMENTS DIVISION
REGISTERED BRAND: ATOMFAIR®
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
This balance requires a 30-60 minute warm-up period after power-on before any zeroing or measurement. It operates reliably only within 18-23°C and 20-80% RH, and its automatic calibration subsystem triggers if temperature varies >1.5°C or time exceeds 2 hours.
- Preheating Requirement: A mandatory preheating threshold of 30 to 60 minutes must be observed following power-on initialization before performing zeroing or specimen additions.
- Environmental Temperature: The operating environmental temperature must be maintained between 18°C and 23°C to ensure measurement accuracy.
- Humidity Constraint: The operating workspace humidity must be kept within 20% to 80% relative humidity.
- Automatic Calibration Trigger: The autonomous automatic calibration subsystem triggers recalibration if local temperature variations exceed 1.5°C or if time elapsed exceeds 2 hours.
- Draft Shield Usage: The panoramic transparent glass draft shield must be used to minimize air current interference during measurements.
This procedure covers the required warm-up, environmental verification, zeroing, and calibration steps before specimen measurement. Proper initialization ensures the balance achieves its specified repeatability and linearity performance.
Required Equipment: Power supply unit (220V AC/50Hz input), Draft shield enclosure, Detachable display control unit, External calibration mass (if performing external calibration)
- Warm-up
Allow the balance to warm up for 30 to 60 minutes after powering on before performing any zeroing or calibration operations. - Environmental verification
Confirm that the ambient temperature is between 18°C and 23°C and relative humidity is between 20% and 80%. - Zeroing
Press the tare or zero button to reset the balance display to zero with no load on the pan. - External calibration (if required)
Load the external calibration mass onto the pan and initiate the calibration procedure to verify linearity and repeatability. - Specimen measurement
Place the specimen gently on the weighing pan and record the stabilized mass reading after the display settles.
How does the 0.1 mg readability of the EB120G-0.1MG-02 balance affect its repeatability and linearity at maximum capacity of 120 g?
The balance achieves a repeatability deviation of ±0.1 mg and linearity deviation of ±0.2 mg at full 120 g capacity, with a stabilization time of ≤2.5 seconds. This indicates that the high readability does not compromise precision across the entire weighing range.
What are the environmental temperature and humidity constraints for operating the EB120G-0.1MG-02 balance, and how do they affect its integration into a standard analytical laboratory?
The balance requires an operating temperature of 18°C to 23°C and humidity of 20% to 80% RH. These conditions are typical for analytical labs but may require HVAC control in non-standard environments. Additionally, the balance features an integrated bidirectional RS232 communication bus for connection to printers, computers, or LIMS systems.
What is the mandatory preheating time for the EB120G-0.1MG-02 balance after power-on, and why is it necessary?
The balance requires a mandatory preheating period of 30 to 60 minutes following power-on initialization before performing operational zeroing or calibration. This ensures the electromagnetic force sensor reaches thermal equilibrium, maintaining specified repeatability and linearity performance.
The EB120G-0.1MG-02 electronic analytical balance provides 0.1 mg readability and 120 g capacity with rapid ≤2.5 s stabilization via electromagnetic force compensation, but necessitates a 30-60 minute warm-up and stable ambient conditions (18-23°C, 20-80% RH) for accurate measurements.
Positive
- High-sensitivity electromagnetic force sensor: Delivers exceptional sensitivity and ultra-high resolution kinetics with stable execution response times ≤2.5 seconds.
- Detachable split-body control architecture: Isolates mechanical hand operation micro-vibrations from the weighing block and facilitates multi-angle optical line-of-sight checks.
Trade-offs
- Mandatory 30-60 minute warm-up: The balance requires a preheating threshold of 30-60 minutes following power-on before performing zeroing or calibration to preserve operational resolution linearity.
- Strict environmental stability requirements: Optimal operation limited to 18-23°C and 20-80% RH; autonomous calibration triggers if temperature swings exceed 1.5°C, demanding climate-controlled laboratory conditions.
