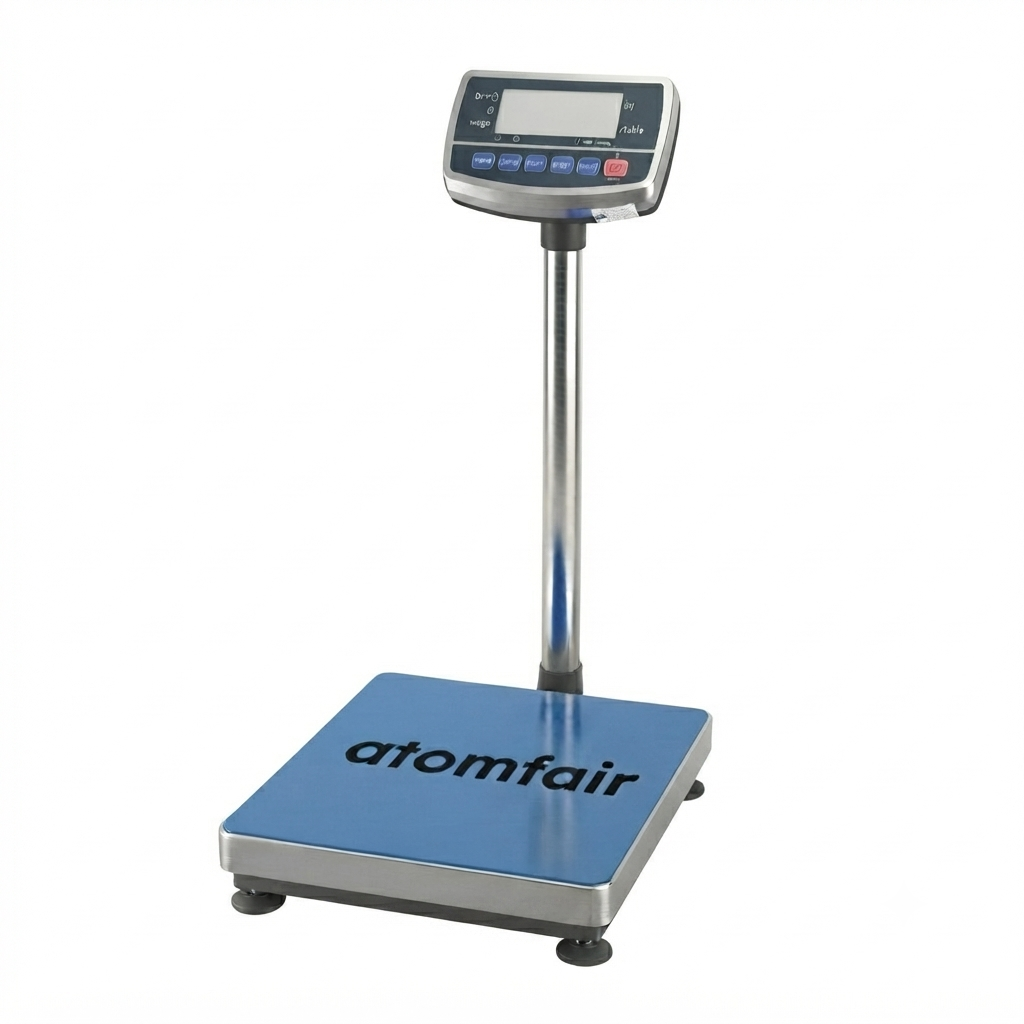

ATOMFAIR® EB100KG-1G-01 HEAVY-DUTY INDUSTRIAL PLATFORM SCALEHIGH-CAPACITY METROLOGY SYSTEM
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR INDUSTRIAL PRODUCTION
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
This heavy-duty industrial platform scale is subject to a maximum loading capacity of 100 kg and must not be subjected to severe non-axial cross-loading to prevent calibration drift and structural fatigue. The device requires a stable power source via AC grid or internal DC battery and may be used with optional RS232 telemetry hardware for data communication.
- Maximum Load Capacity: The total applied weight must not exceed 100 kg to avoid overload and potential calibration drift.
- Loading Orientation: Ensure the platform is free from severe non-axial cross-loading vectors to retain operational data resistance.
- Power Supply Requirements: The scale operates on dual-source protocol using AC grid or internal DC battery; use only the supplied universal AC adapter.
- Calibration Stability: Avoid conditions that may cause calibration drift, such as excessive mechanical shock or sustained overload.
- Structural Integrity: Do not subject the platform to forces that could induce long-term structural fatigue, such as point loads or unbalanced weights.
How does the 1 g readability affect measurement reliability at near-maximum capacity for the EB100KG-1G-01?
The scale maintains ±1 g repeatability and ±2 g linearity across its full 100 kg range, but to avoid calibration drift or structural fatigue, total applied weight must not exceed the 100 kg maximum threshold and non-axial cross-loading must be avoided. This ensures consistent batch data even at high loads.
Can the EB100KG-1G-01 be integrated with external printers or data logging systems for batch quality inspection?
Yes, it supports optional telemetry hardware including a dedicated RS232 serial port communication cable and a scale-specific external matrix printer. This allows direct data transfer for industrial quality inspection and logistics verification.
What are the power supply requirements and overload protection features for the EB100KG-1G-01?
The scale operates on a dual-source protocol (AC grid or internal DC battery adaptive matrix). It includes hardened overload safeguards, underload alerts, and automated diagnostic fault-detection to prevent structural fatigue. Users must avoid exceeding 100 kg and severe non-axial cross-loading.
The EB100KG-1G-01 delivers 100 kg capacity with 1 g readability and ±1 g repeatability, making it suitable for high-capacity analytical weighing in harsh industrial environments, though its 400×500 mm platform and 100 kg limit impose constraints on oversized loads and require careful axial loading to prevent calibration drift.
Positive
- High precision at 100 kg capacity: With 1 g readability and ±1 g repeatability, this scale provides analytical-grade accuracy for heavy material R&D and quality inspection, ensuring reliable batch data reproducibility.
- Robust overload and fault protection: Integrated overload safeguards, underload alerts, and automated diagnostic tracking protect the load cell array from structural fatigue in demanding industrial workflows.
Trade-offs
- 100 kg maximum load limit: Total applied weight must not exceed 100 kg to avoid calibration drift or long-term structural fatigue, restricting use for heavier industrial batches.
- Sensitive to non-axial loading: Severe non-axial cross-loading vectors can compromise operational data resistance and require careful load placement to maintain accuracy.
