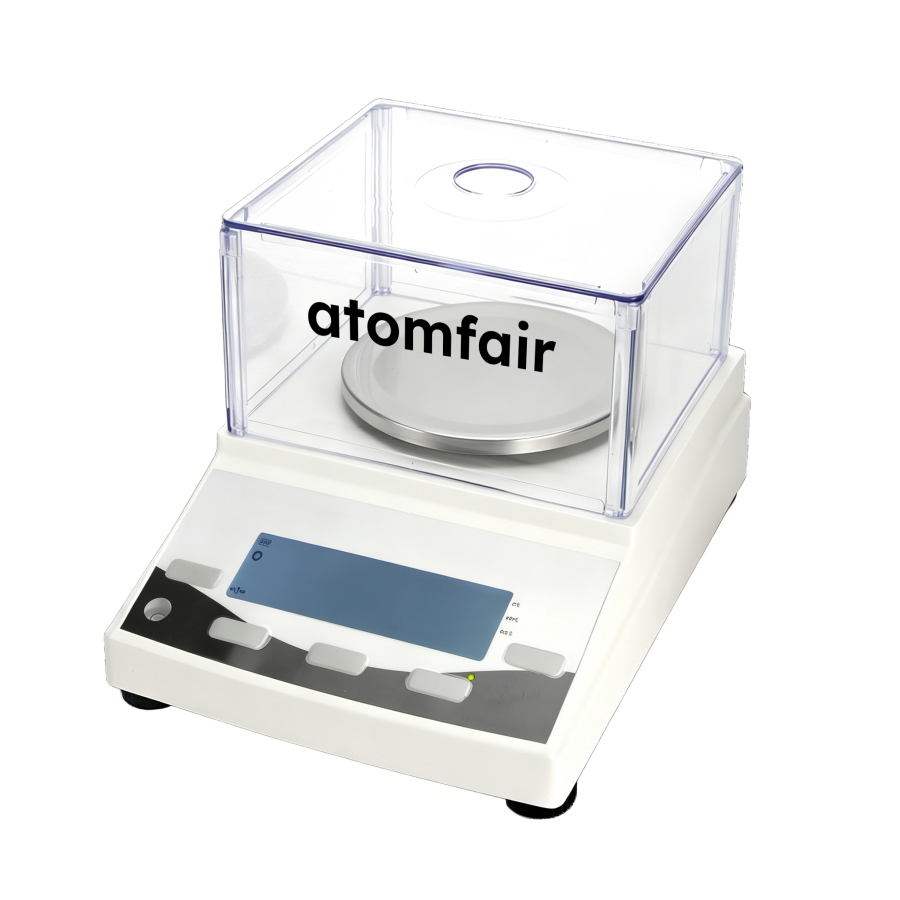

ATOMFAIR® EB1000G-0.01G-02 precision electronic balance with a square transparent draft shield on a white background.

Laboratory Precision Balance 1000g ×0.01g ATOMFAIR®

$620.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

EB1000G-0.01G-02 laboratory precision balance with 1000g capacity, 0.01g readability, ±0.01g repeatability, Φ130mm pan, RS232 output. Order now.

SKU: AF-EI-B-PELB-1K0C-NR02
Category: ,

Description

ATOMFAIR® EB1000G-0.01G-02 HIGH-CAPACITY LABORATORY PRECISION BALANCE

SCI-GRADE MEASUREMENT SYSTEM

Product Overview
The ATOMFAIR® EB1000G-0.01G-02 precision electronic balance delivers an impressive 1000g high-capacity operational threshold combined with meticulous 0.01g readability for extensive laboratory material tracking. Outfitted with an integrated structural draft shield to eliminate analytical signal noise from indoor air currents and standard dual AC/DC hybrid power compatibility, it guarantees strict calibration linearity and maximum baseline accuracy for demanding cross-validation workflows.

EB1000G-0.01G-02 Model Core Specifications
PARAMETER ITEM TECHNICAL SPECIFICATIONS
Model Number EB1000G-0.01G-02
Maximum Capacity 1000g
Readability 0.01g
Repeatability ±0.01g
Linearity ±0.02g
Pan Size Φ130mm

Core Features & Technical Advantages
  • Soft Backlit LCD Module: Premium crystal display interface ensures optimal numerical legibility under variable laboratory lighting.
  • Dual AC/DC Hybrid Supply: Flexible power architecture permits uninterrupted continuous operations independent of local mains grid networks.
  • Full Scale Tare Performance: Seamless single-button mechanical zeroing isolates measurement vessel weight across the full load spectrum.
  • Integrated Simple Draft Shield: Packaged standard with a rugged protective shield to buffer sensitive force elements from ambient airflow noise.
  • Counting & Percentage Logic: Intelligent internal firmware tracks proportional material distribution and sample piece counts directly.
  • Standard RS232 Data Output: High-fidelity physical communication interface maps real-time analytical logs straight to LIMS platforms.
  • Multi-Unit Digital Shifting: Embedded software quickly transitions measurements across international scientific metrics for traceable reporting.


Full Series Parameters Comparison Table
PARAMETER MODEL EB100G-0.01G-03 EB200G-0.01G-01 EB500G-0.01G-03 EB600G-0.01G-02 EB1000G-0.01G-02
Max Capacity (g) 100 200 500 600 1000
Readability (g) 0.01 0.01 0.01 0.01 0.01
Repeatability (g) ±0.01 ±0.01 ±0.01 ±0.01 ±0.01
Linearity (g) ±0.02 ±0.02 ±0.02 ±0.02 ±0.02
Pan Size (mm) Φ130 Φ130 Φ130 Φ130 Φ130

COMPLIANCE NOTICE: The YP1002N high-capacity configuration requires structured baseline stability and a fully secured draft shield deployment to isolate extreme 1000g structural strain indicators. For customized OEM laboratory networks or corporate pricing contract frameworks, please message our support desk.

TAILORED METROLOGY SOLUTIONS FOR RESEARCH
Contact our engineering team for technical calibration documentation or institutional quotes.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®



This precision balance requires operation on a stable, vibration-free surface with the integrated draft shield deployed to minimize airflow interference. Power must be supplied via AC adapter or DC battery to ensure continuous operation.

  • Stable Surface Requirement: Place the balance on a stable, level surface free from vibrations and drafts.
  • Draft Shield Deployment: Deploy the integrated draft shield around the weighing platform to isolate the chamber from ambient air currents.
  • Power Supply Compatibility: Connect the balance to a suitable power source using the AC adapter or DC battery option for uninterrupted operation.

Follow these steps to set up the balance for accurate weighing. Proper initialization ensures measurement reliability and extends instrument life.

  1. Position Balance
    Place the balance on a stable, vibration-free surface to ensure measurement accuracy.
  2. Secure Draft Shield
    Secure the integrated draft shield around the weighing platform to minimize ambient airflow interference.
  3. Connect Power
    Connect the balance to a power source using the AC adapter or DC battery for continuous operation.
  4. Tare Vessel
    Press the tare button to zero the balance with the empty container before adding sample.

How does the ±0.02g linearity specification affect measurement accuracy across the full 1000g range on the EB1000G-0.01G-02?

The ±0.02g linearity specification indicates that the maximum deviation from an ideal linear response is 0.02g at any point up to the 1000g maximum capacity, with a repeatability of ±0.01g. This ensures reliable accuracy for routine material tracking but may require careful calibration verification for applications demanding sub-0.02g absolute error across the entire load range.

Can the EB1000G-0.01G-02 balance be directly integrated into a laboratory information management system (LIMS)?

Yes, the balance is equipped with a standard RS232 data output interface that maps real-time analytical logs directly to LIMS platforms. This enables seamless data capture, traceability, and compliance with institutional data management workflows.

What infrastructure and handling conditions are required to achieve the rated accuracy on the EB1000G-0.01G-02 high-capacity balance?

The balance requires a structured baseline stability and a fully secured draft shield, which is included, to buffer the sensitive force element from ambient airflow noise and isolate the mechanical strain of the 1000g capacity. Dual AC/DC hybrid power supply flexibility ensures uninterrupted operation independent of local mains grid conditions.

The ATOMFAIR EB1000G-0.01G-02 precision balance offers 1000g capacity with 0.01g readability, a draft shield for airflow isolation, and dual AC/DC power for operational flexibility, but requires structured baseline stability and a fully secured draft shield to maintain accuracy at full load.

Positive

  • Dual AC/DC Hybrid Power Supply: Flexible power architecture permits uninterrupted continuous operations independent of local mains grid networks, ensuring reliable use in field or backup conditions.
  • Integrated Simple Draft Shield: Rugged protective shield buffers sensitive force elements from ambient airflow noise, eliminating analytical signal noise and maintaining calibration linearity and accuracy.

Trade-offs

  • Structured Baseline Stability Required: The high-capacity 1000g configuration requires structured baseline stability and a fully secured draft shield deployment to isolate extreme structural strain indicators and preserve measurement integrity.
