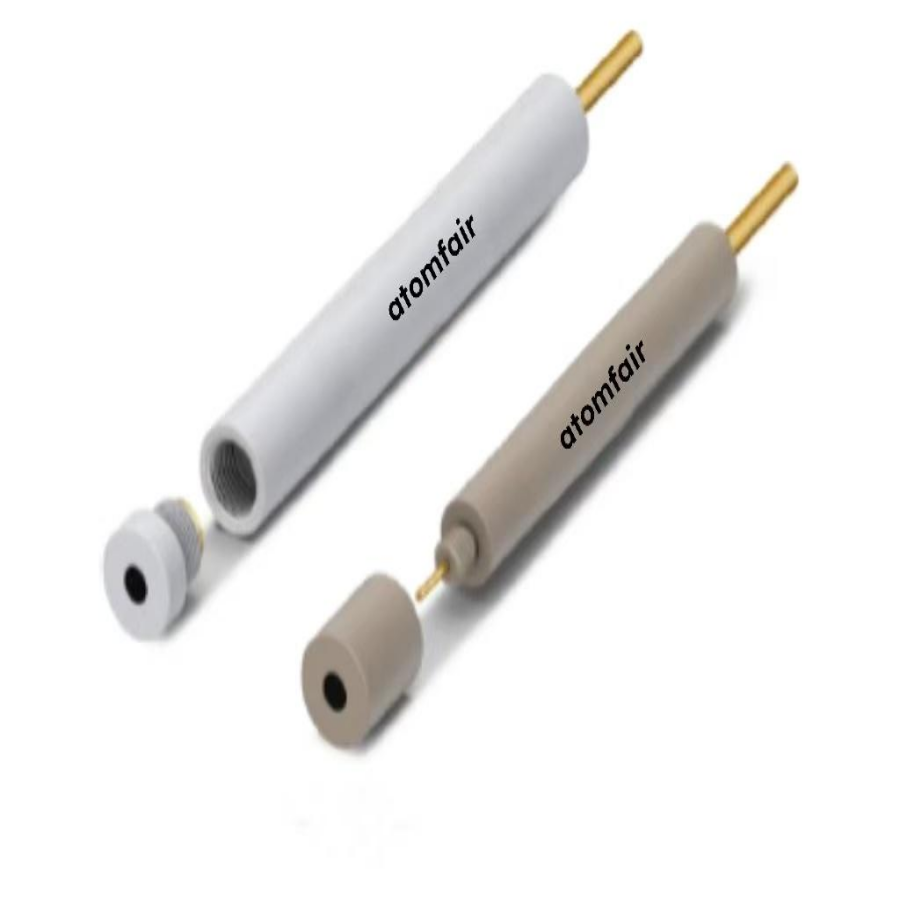

ATOMFAIR® atomfair white and brown detachable cadmium working electrodes showing modular thread and pin connections.

DETACHABLE ELECTRON MICROSCOPY CADMIUM WORKING ELECTRODE SERIES | ATOMFAIR

$89.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Detachable Electron Microscopy Cadmium Working Electrode Series | ATOMFAIR RESEARCH GRADE INSTRUMENT Product Overview The ATOMFAIR® Detachable Electron Microscopy Cadmium Working Electrode features a user-replaceable head design specifically optimized for electrochemical experiments requiring cadmium-based electrodes in battery research and corrosion studies. The electrode offers a standard embedded disk diameter of 2mm. The detachable head features a 9mm thickness, while the electrode body is manufactured from premium PTFE or PEEK, providing excellent chemical resistance and mechanical stability. A gold-plated copper rod (1.5×15mm) serves as the conductive medium, ensuring low contact resistance and superior corrosion protection. This design enables convenient electrode surface…

Category: ,
Tags: , ,
Brands:

Description

Detachable Electron Microscopy Cadmium Working Electrode Series | ATOMFAIR

RESEARCH GRADE INSTRUMENT

Product Overview
The ATOMFAIR® Detachable Electron Microscopy Cadmium Working Electrode features a user-replaceable head design specifically optimized for electrochemical experiments requiring cadmium-based electrodes in battery research and corrosion studies. The electrode offers a standard embedded disk diameter of 2mm. The detachable head features a 9mm thickness, while the electrode body is manufactured from premium PTFE or PEEK, providing excellent chemical resistance and mechanical stability. A gold-plated copper rod (1.5×15mm) serves as the conductive medium, ensuring low contact resistance and superior corrosion protection. This design enables convenient electrode surface renewal and maintenance without replacing the entire electrode body, making it particularly suitable for studies where electrode material specificity is critical.

Technical Specifications

PARAMETER DETAILS
1. Core Device & Electrochemical Design
Electrode Geometry Detachable cylindrical configuration
Rod Length 6mm
Detachable Head Thickness 9mm
Conductive Medium Gold-plated copper rod (1.5 x 15mm)
Insulative Body Material PTFE or PEEK
2. Electrode Material Portfolio Parameters
Material Cadmium
Diameter Options 2mm


Key Features & Advantages
  • Detachable Head Design: Allows easy replacement or regeneration of the electrode surface, significantly extending the service life of the electrode body and ensuring optimal performance in microscopy-coupled experiments.
  • Specialized Cadmium Material: Constructed from high-grade cadmium, providing specific electrochemical characteristics suitable for targeted redox systems and specialized corrosion studies.
  • Robust Corrosion Protection: Gold-plated copper rod (1.5x15mm) delivers enhanced oxidation resistance and maintains stable conductivity over extended use.
  • Universal Compatibility: Designed with standard dimensions to ensure seamless integration with commercially available three-electrode cell systems and rotating disk electrode setups.
APPLICATION SCOPE: Healthcare, Environmental Monitoring, Chemical Engineering, Bio-industry, and Advanced Energy Systems.
PACKAGING: Secure individual research-grade protective containers with shock-absorption parameters.
IMPORTANT NOTICE: This product is highly sensitive to surface contamination. Keep containers tightly sealed or handle exclusively within an anhydrous inert environment to prevent phase contamination or degradation before electrochemical validation.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).
