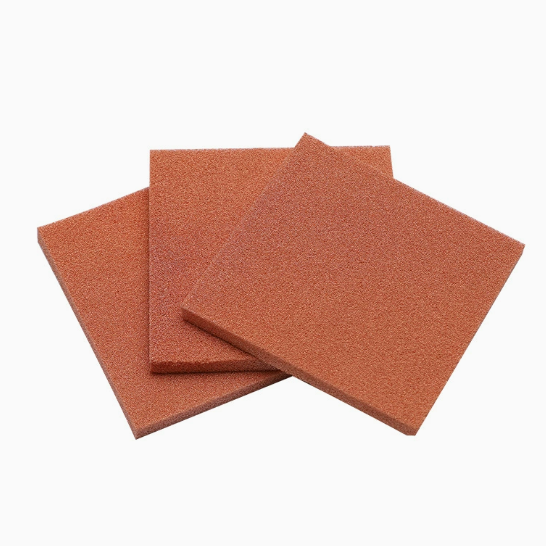

Copper Foam
|
| Copper foam with acid and alkali resistance, 100PPI, 3mm thickness. With 0.1-10mm pore size and ≥98% through porosity, it is ideal for heat dissipation, EMI shielding, filtration and battery electrode applications. Custom sizes available. |
Basic Specifications
|
| Parameter |
Specification |
| Tolerance |
Acid resistant, Alkali resistant |
| Dimensions |
200mm × 300mm |
| Thickness |
3mm |
| Pore Density |
100 PPI |
|
Porous Copper Foam Technical Data
|
| Parameter |
Specification |
| Heat Transfer Coefficient |
>6 W/(m²·K) |
| Mechanical Strength |
≥2.5 MPa |
| Tensile Strength |
5-18 KPa |
| Pore Size |
0.1-10mm |
| Porosity |
60-80% |
| Through-hole Rate |
≥98% |
| Bulk Density |
>0.1 g/cm³ |
| PPI (Pores Per Inch) |
5-130 |
|
Applications
|
| Heat dissipation materials, heat absorption materials, chemical catalyst carriers, electromagnetic shielding materials, filter materials, damping materials, battery electrode materials, sound-absorbing materials, decorative materials. |
Porous Metal Foam Application Fields
|
| Porous metal foam materials are supported projects widely applicable in aviation, aerospace, petroleum, automotive, construction, chemical industry, metallurgy, medicine, electrochemical industry and military industry. Specific applications include: exhaust gas filtration, diesel particulate filter, oil fume purifier, catalyst carrier, oil and gas sand separator, sound absorption and noise reduction, thermal insulation and heat dissipation, air filtration, filters, vacuum filtration, open-type automotive filters, chemical workshop smoke filtration, oil tank wind shield, seawater separation filtration, pipeline filtration and disinfection, water desalination evaporator baffle, motor silencer, energy reducer, catalytic converter, indoor distribution panel, lightweight high-strength panel, electrodialysis, spacecraft wing structure, jet engine silencing, toothed heat exchanger, cooling fin, high-temperature engine, liquid heat exchanger, cooling tower capacitor, battery plate, porous spark plug, etc. |
Product Specifications & Technical Parameters
|
| Item |
Parameter Range |
| Pore Count (PPI) |
5~130 (±5~10) |
| Areal Density (g/m²) |
280~3000 (±30~200) |
| Thickness (mm) |
0.5~80 (±0.05~1.0) |
| Length / Width Dimensions (mm) |
70 ≤ Length / Width ≤ 500 (±0.5) |
|
Sizes can be customized. For any questions or specific customization requirements, please feel free to contact us at inquiry@atomfair.com
|
|
